1FL6042-1AF61-2LA1

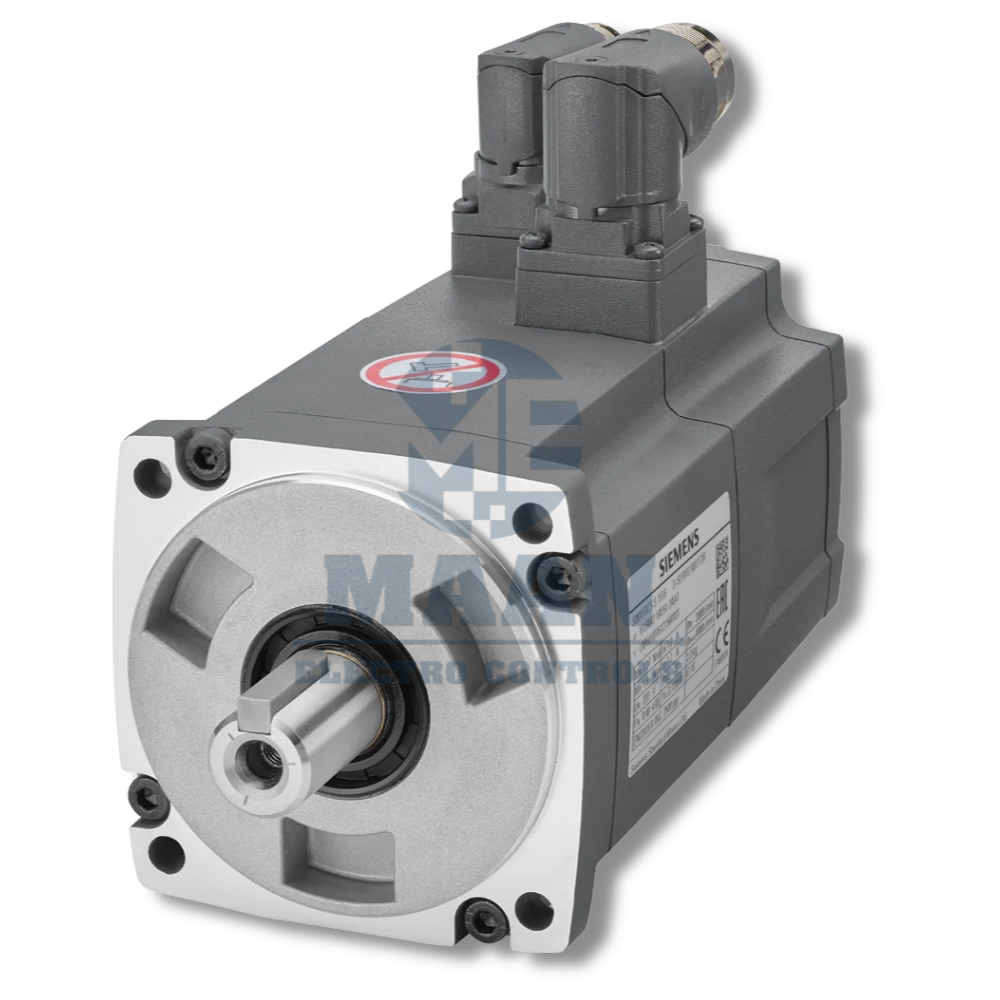

SIEMENS SIMOTICS S-1FL6 SERVO MOTOR β 1FL6042-1AF61-2LA1
Siemens SIMOTICS S-1FL6 1FL6042-1AF61-2LA1 is a 0.4 kW, 400 V AC servo motor engineered for accurate and responsive motion-control applications. This motor operates at a rated speed of 3000 rpm, with a rated torque of 1.27 Nm and standstill torque of 1.9 Nm.
It incorporates a 20-bit absolute encoder with 12-bit multi-turn capability, providing detailed position feedback for closed-loop servo control. With IP65 protection with sealing ring, a 45 mm shaft height, feather-key shaft, and angle plug connection, the motor is designed for reliable integration into industrial machinery.
The motor is compatible with Siemens SINAMICS V70 and SINAMICS V90 converters, making it suitable for compact servo systems requiring controlled speed, torque and positioning.
PRODUCT TECHNICAL DATA
Siemens Article Number : 1FL6042-1AF61-2LA1
Product Family : SIMOTICS S-1FL6
Motor Category : Servo Motor
Supply Voltage : 3AC 400 V
Rated Motor Power : 0.4 kW
Rated Speed : 3000 rpm
Standstill Torque M0 : 1.9 Nm
Rated Torque MN : 1.27 Nm
Shaft Height : 45 mm
Encoder Type : Absolute Encoder
Encoder Resolution : 20-bit
Multi-turn Resolution : 12-bit
Shaft Design : Feather Key
Holding Brake : Without Holding Brake
Connection : Angle Plug
Protection : IP65 with Sealing Ring
Compatible Converter : SINAMICS V70 / V90
ο»Ώ
BENEFITS
- 0.4 kW compact servo motor
- 400 V three-phase operation
- 3000 rpm rated speed
- 1.27 Nm rated torque
- 1.9 Nm standstill torque
- High-resolution 20-bit absolute encoder
- 12-bit multi-turn feedback capability
- Feather-key shaft
- 45 mm shaft height
- Angle plug connection
- IP65 protection with sealing ring
- No holding brake
- Compatible with SINAMICS V70 and V90
- Suitable for precise industrial motion applications
- Easy integration into Siemens automation architectures
