1FL6042-2AF21-1MA1

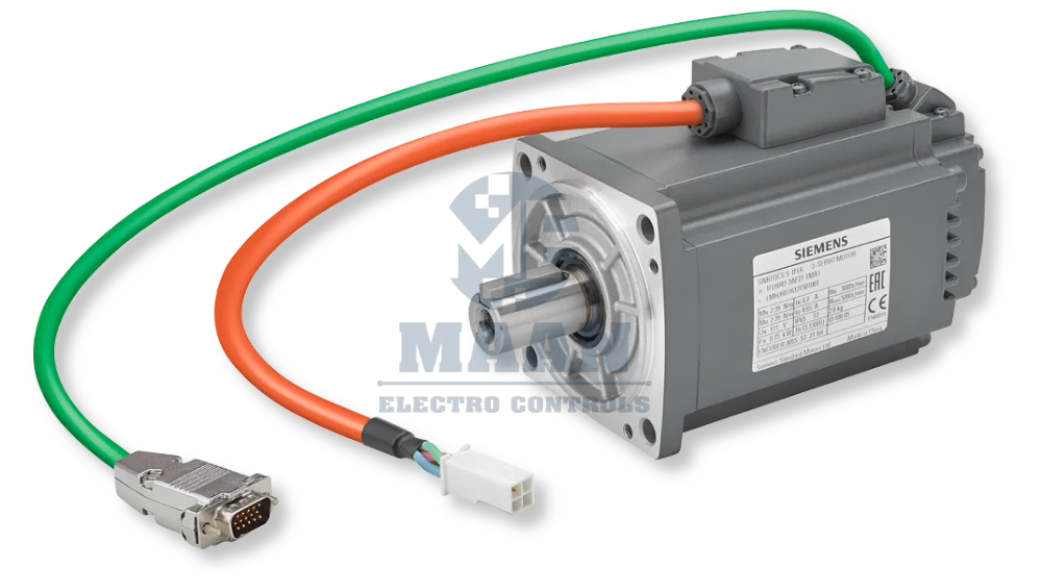

Siemens SIMOTICS S-1FL6 Servo Motor – 1FL6042-2AF21-1MA1
Siemens 1FL6042-2AF21-1MA1 is a SIMOTICS S-1FL6 servo motor designed for use with SINAMICS V90 servo drives. It provides precise motion control for demanding industrial automation applications where accurate positioning, reliable speed control, and dynamic response are required.
PRODUCT SPECIFICATIONS
Product Part Number : 1FL6042-2AF21-1MA1
Product Family : SIMOTICS S-1FL6
Motor Type : Servo Motor
Rated Supply Voltage : 230 V 3 AC
Rated Power : 0.75 kW
Rated Speed : 3000 rpm
Rated Torque (MN) : 2.39 Nm
Rated/Standstill Torque (M0) 2.39 Nm
Shaft Height : 40 mm
Encoder Type : Absolute encoder
Encoder Resolution : 21-bit
Encoder Configuration : Single-turn
Shaft Design : Feather key
Holding Brake : Without holding brake
Protection Rating : IP65
Shaft Sealing : Fitting oil seal
Drive Compatibility : SINAMICS V90
Motor Series : SIMOTICS S-1FL6
FEATURES
· 0.75 kW servo motor for precision motion applications.
· 230 V 3-phase AC motor supply.
· 3000 rpm rated speed for dynamic machine operation.
· 2.39 Nm rated torque for consistent mechanical output.
· 21-bit single-turn absolute encoder for high-resolution position feedback.
· Feather-key shaft for secure mechanical coupling.
· IP65 protection suitable for industrial environments.
· Supplied without holding brake.
· Fitting oil seal helps protect the shaft area in suitable applications.
· Designed for integration with Siemens SINAMICS V90 servo systems.
BENEFITS
High-resolution feedback: The 21-bit single-turn absolute encoder provides detailed position feedback for precise motion control.
Reliable industrial construction: IP65 protection helps the motor withstand dust and water-jet exposure under applicable installation conditions.
Compact servo solution: The 40 mm shaft height makes it suitable for compact machine designs.
Precision motion: The 0.75 kW motor with 2.39 Nm rated torque supports controlled and repeatable machine movements.
V90 compatibility: Designed for integration with the SINAMICS V90 servo drive platform.
