1FL6062-1AC61-2LA1

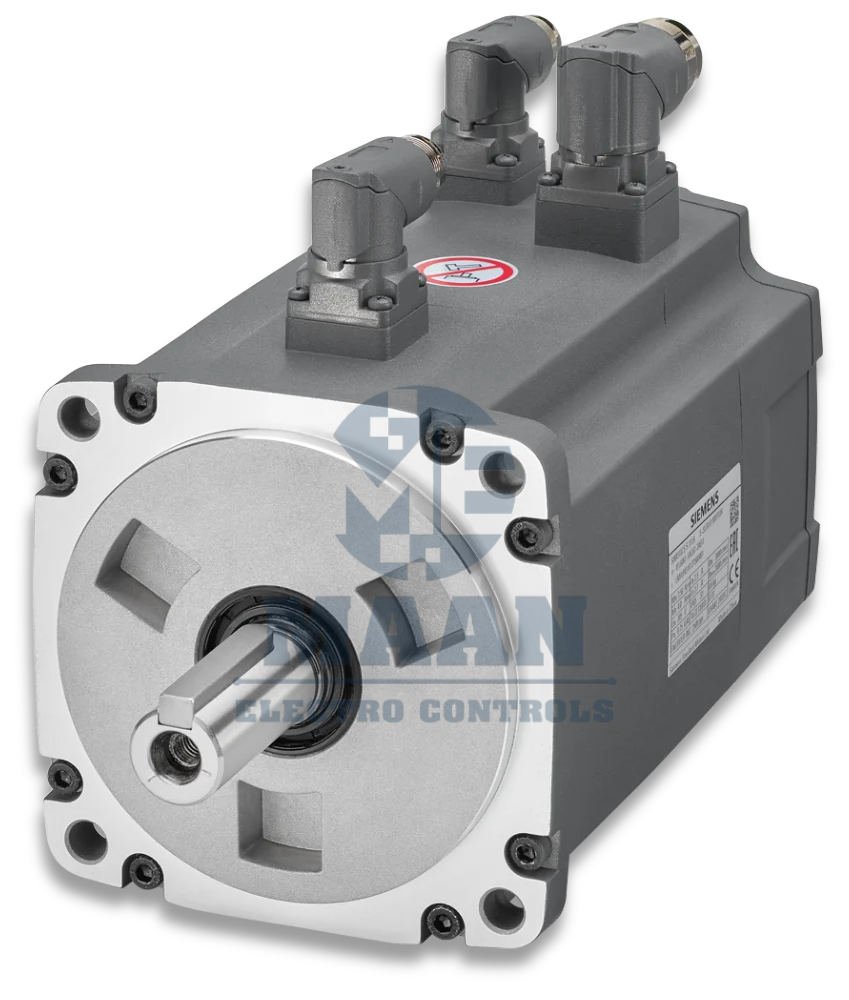

Siemens SIMOTICS S-1FL6 Servo Motor – 1FL6062-1AC61-2LA1
The Siemens SIMOTICS S-1FL6 1FL6062-1AC61-2LA1 is a high-performance servo motor designed for precise and dynamic motion-control applications. It operates on a 3-phase 400 V AC supply and delivers 1 kW rated power at 2000 rpm, making it suitable for industrial automation systems requiring accurate positioning, controlled speed, and reliable torque performance.
This motor provides a 6 Nm standstill torque (M0) and 4.78 Nm rated torque (MN). It features a 65 mm shaft height, angle plug connection, and an absolute 20-bit encoder with 12-bit multi-turn capability for accurate position feedback. The feather-key shaft design supports secure mechanical coupling, while IP65 protection with a sealing ring provides protection against dust and water ingress in demanding industrial environments.
The motor is designed for compatibility with SINAMICS V70 and SINAMICS V90 converters, making it suitable for complete Siemens servo motion solutions.
Product Specifications
Manufacturer : Siemens
Product Family : SIMOTICS S-1FL6
Article Number : 1FL6062-1AC61-2LA1
Motor Type : Servo Motor
Supply Voltage : 3AC 400 V
Rated Power: 1 kW
Rated Speed : 2000 rpm
Standstill Torque M0 : 6 Nm
Rated Torque MN : 4.78 Nm
Shaft Height : 65 mm
Encoder : Absolute Encoder
Encoder Resolution : 20-bit
Multi-turn Resolution : 12-bit
Shaft Design : Feather Key
Connector : Angle Plug
Holding Brake : Without Holding Brake
Protection Rating : IP65
Additional Protection : Sealing Ring
Tolerance : N
Compatible Drives : SINAMICS V70 / V90
Benefits
· 1 kW servo performance for industrial motion applications
· 400 V three-phase operation for industrial drive systems
· 6 Nm standstill torque for high starting and holding performance
· 4.78 Nm rated torque for continuous servo operation
· 20-bit absolute encoder for high-resolution position feedback
· 12-bit multi-turn capability for extended absolute positioning
· Feather-key shaft for secure mechanical transmission
· IP65 protection for reliable operation in industrial environments
· Sealing ring provides additional shaft protection
· Angle plug connection supports practical machine installation
· Designed for integration with Siemens SINAMICS V70 and V90
Applications
· Packaging machinery
· Material handling systems
· Conveyor automation
· Machine tools
· Pick-and-place systems
· Textile machinery
· Printing and converting machines
· Assembly machines
· Positioning and indexing systems
· Automated production equipment
