1FL6092-1AC61-2AA1

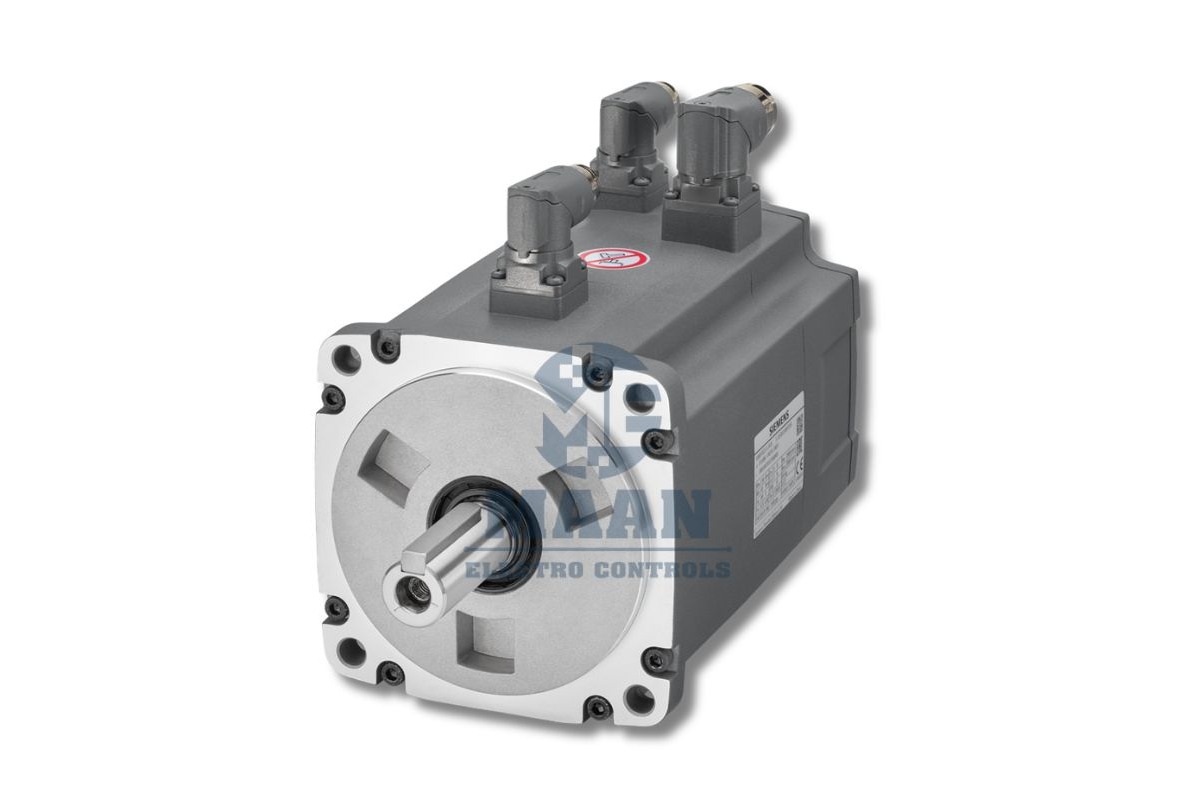

SIEMENS SIMOTICS S-1FL6 SERVO MOTOR — 1FL6092-1AC61-2AA1
❝Siemens SIMOTICS S-1FL6 permanent-magnet synchronous servo motor for 3 AC 400 V operation, delivering 3.5 kW rated power at 2000 rpm with 22 Nm static torque, 16.7 Nm rated torque, 2500 S/R incremental encoder and IP65 protection for SINAMICS V70 and V90 servo systems❞
1FL6092-1AC61-2AA1 — PRECISION SERVO MOTOR FOR INDUSTRIAL MOTION
The SIMOTICS S-1FL6 1FL6092-1AC61-2AA1 is a high-inertia permanent-magnet synchronous servo motor designed for machine automation and dynamic motion-control applications.
With a 3.5 kW rated output, 2000 rpm rated speed, and 22 Nm static torque, this motor is suited to applications requiring controlled positioning, repeatable motion and reliable servo performance.
The integrated incremental TTL encoder with 2500 signal/revolutions (13-bit) provides feedback for closed-loop operation with compatible Siemens SINAMICS servo drives. The motor features a 90 mm shaft height, feather-key shaft, angular connector and IP65 protection with sealing ring.
NEED SIEMENS 1FL6092-1AC61-2AA1 SERVO MOTOR?
❝MAAN ELECTRO CONTROLS SUPPLIES GENUINE SIEMENS SIMOTICS S-1FL6 SERVO MOTORS FOR OEM MACHINE BUILDERS, AUTOMATION SYSTEM INTEGRATORS, PANEL BUILDERS AND INDUSTRIAL MOTION APPLICATIONS WITH COMPETITIVE PRICING AND PAN INDIA DELIVERY.❞
PRODUCT SPECIFICATIONS
➝ Manufacturer: Siemens
➝ Product Family: SIMOTICS S-1FL6
➝ Product Type: Servo Motor
➝ Article Number: 1FL6092-1AC61-2AA1
➝ Motor Technology: Permanent-Magnet Synchronous Motor
➝ Motor Type: High Inertia
➝ Operating Voltage: 3 AC 400 V
➝ Rated Power: 3.50 kW
➝ Rated Speed: 2000 rpm
➝ Maximum Speed: 3000 rpm
➝ Static Torque M0: 22 Nm
➝ Rated Torque MN: 16.70 Nm
➝ Maximum Torque: 50 Nm
➝ Rated Current: 11.0 A
➝ Maximum Current: 32.9 A
➝ Shaft Height: 90 mm
➝ Encoder: Incremental TTL
➝ Encoder Resolution: 2500 S/R
➝ Encoder Resolution: 13 bit
➝ Shaft End: Feather key
➝ Radial Runout Tolerance: Class N
➝ Vibration Severity: Grade A
➝ Cooling: Natural cooling
➝ Connection: Angular / rotatable connector
➝ Holding Brake: Without holding brake
➝ Protection: IP65
➝ Sealing: With sealing ring
➝ Mounting: IM B5 / compatible mounting arrangements
➝ Thermal Class: B (130°C)
➝ Compatible Drives: SINAMICS V70 / SINAMICS V90
➝ Suitable For: Industrial servo and motion-control applications
