6ES7211-1HE40-0XB0

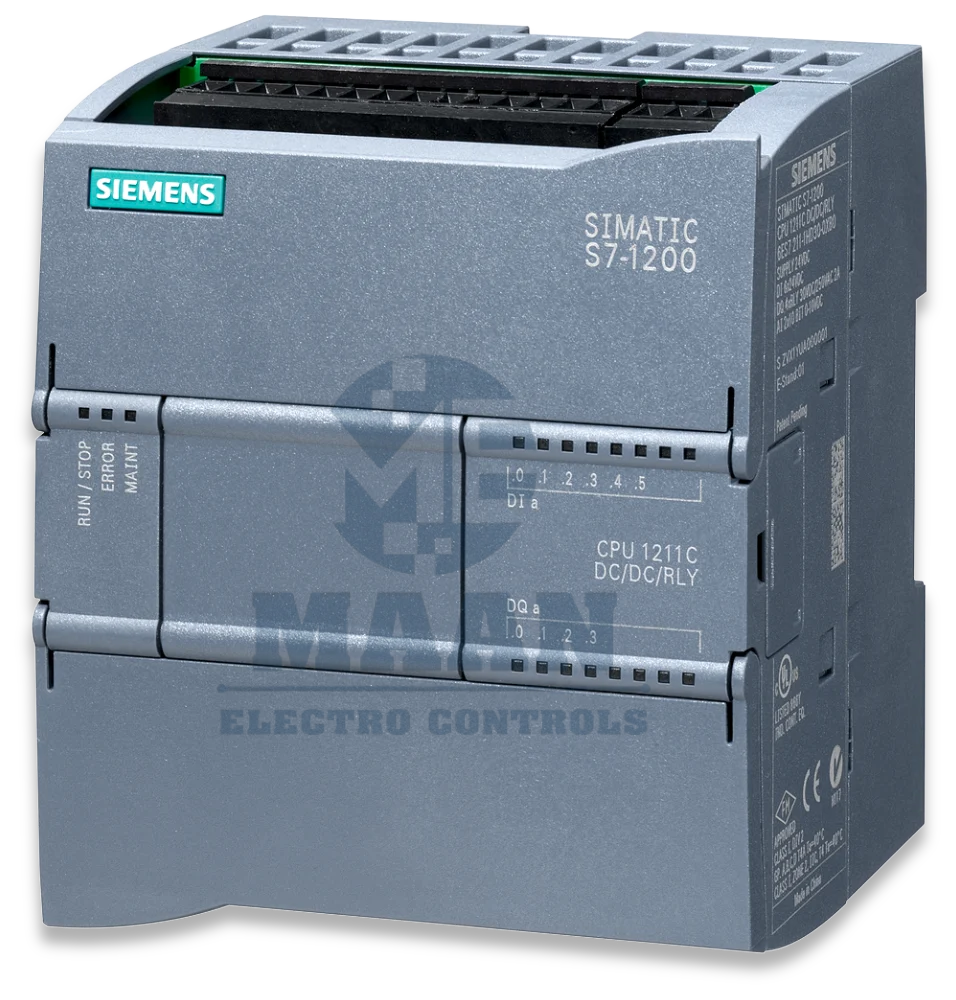

Siemens SIMATIC S7-1200 CPU 1211C — 6ES7211-1HE40-0XB0
The Siemens SIMATIC S7-1200 CPU 1211C (6ES7211-1HE40-0XB0) is a compact and versatile PLC designed for controlling small to medium-sized automation applications. It combines the CPU, digital inputs, digital relay outputs, and analog inputs in a single compact unit, helping reduce panel space and simplify machine control system design.
This CPU operates on a 20.4–28.8 V DC power supply and provides 6 digital inputs, 4 relay outputs rated up to 2 A, and 2 analog inputs for 0–10 V signals. With 75 KB program/data memory, it can handle a wide range of machine automation, process monitoring, sequencing, and control applications.
The compact design makes the S7-1200 CPU 1211C suitable for OEM machines, packaging equipment, conveyor systems, material handling, process automation, production machinery, and industrial control panels.
Product Technical Data
Product Family : SIMATIC S7-1200
CPU Model : CPU 1211C
Article Number: 6ES7211-1HE40-0XB0
CPU Type : Compact CPU
Supply Voltage : 20.4–28.8 V DC
Digital Inputs : 6 DI
Digital Input Voltage : 24 V DC
Digital Outputs : 4 DO
Output Type : Relay
Relay Output Rating : Up to 2 A
Analog Inputs : 2 AI
Analog Input Signal : 0–10 V DC
Program/Data Memory : 75 KB
Installation : Compact PLC design
Application : Machine and industrial automation
Features
· Compact S7-1200 PLC architecture for space-saving control panels.
· 6 integrated 24 V DC digital inputs for sensors, switches, push buttons and control signals.
· 4 relay digital outputs for controlling contactors, relays, valves and other switching devices within the specified ratings.
· 2 integrated 0–10 V analog inputs for monitoring variable process signals.
· 20.4–28.8 V DC operating supply, suitable for standard industrial 24 V DC control systems.
· 75 KB program/data memory for PLC application logic and associated data.
· Integrated I/O reduces the need for separate basic I/O modules in compact applications.
· Suitable for machine sequencing, interlocking, monitoring and automatic control.
· Designed for integration into Siemens SIMATIC automation architectures.
Benefits of Siemens 6ES7211-1HE40-0XB0
1. Compact Automation Solution
The CPU combines processing and onboard I/O in one PLC unit, helping reduce control-panel space and wiring requirements.
2. Flexible Digital Control
The 6 digital inputs can receive signals from field devices such as proximity sensors, limit switches, selector switches and push buttons.
3. Relay Output Switching
The 4 relay outputs provide flexible switching capability for suitable AC or DC loads, contactors, solenoid valves and interposing relays according to the applicable electrical ratings.
4. Analog Signal Monitoring
The 2 × 0–10 V analog inputs allow the PLC to monitor continuously variable signals from compatible sensors and transmitters.
5. Simplified Machine Design
Because basic digital and analog I/O are already integrated, the CPU can help simplify PLC hardware selection and panel wiring for smaller machines.
6. Suitable for Machine Automation
The CPU can be used for sequence control, start/stop logic, sensor monitoring, actuator control, alarms, interlocks and basic process-control functions.
7. Space-Saving Panel Integration
Its compact form factor is useful when designing electrical panels where available mounting space is limited.
8. Reliable Industrial Control
The S7-1200 platform is designed for industrial automation applications where consistent PLC-based control and monitoring are required.
