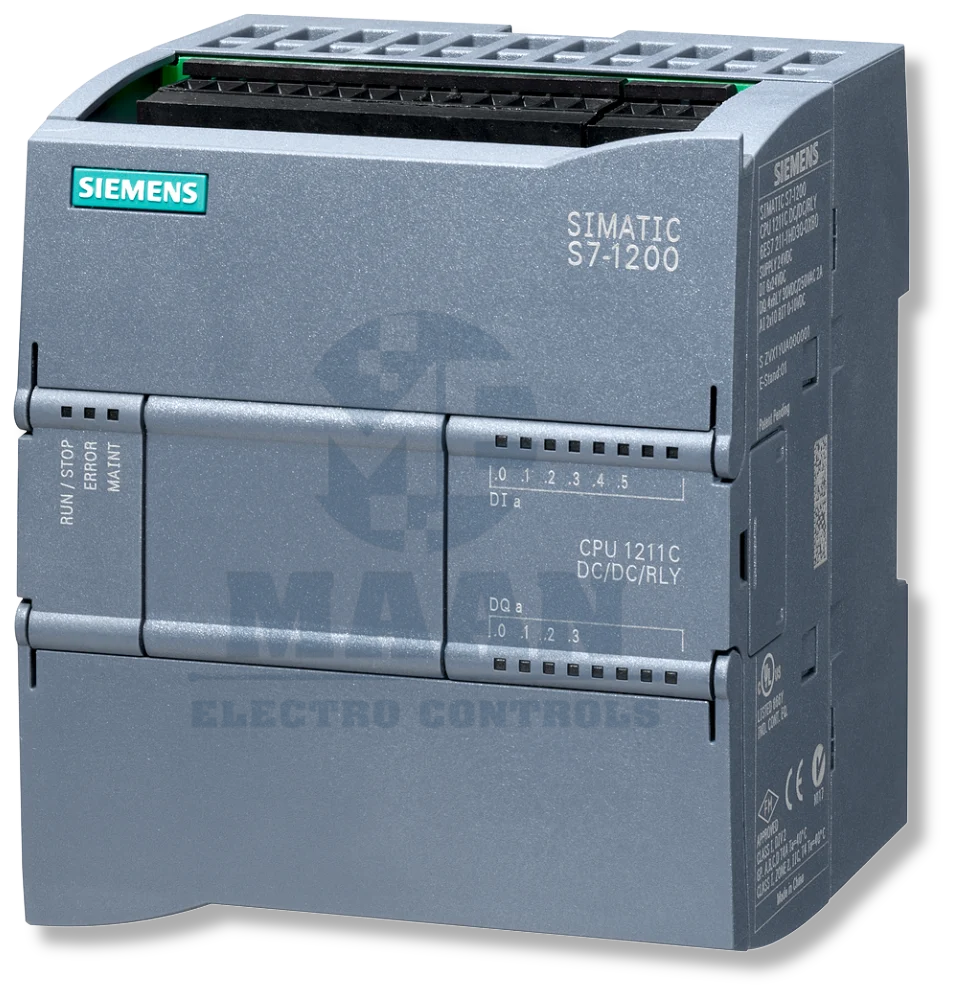

Siemens SIMATIC S7-1200 CPU 1211C DC/DC/Relay – 6ES7211-1HE40-0XB0
The Siemens SIMATIC S7-1200 CPU 1211C – 6ES7211-1HE40-0XB0 is a compact and versatile PLC CPU designed for industrial automation, machine control, OEM machinery, production lines, control panels, manufacturing plants, process automation, and compact automation systems.
This CPU 1211C features a DC/DC/relay configuration with integrated onboard I/O, including 6 digital inputs (DI) 24 V DC, 4 digital relay outputs (DO) rated at 2 A, and 2 analog inputs (AI) 0–10 V DC. The CPU operates from a 20.4–28.8 V DC power supply and provides 75 KB program/data memory for PLC application programs and associated data.
With integrated digital and analog I/O, the 6ES7211-1HE40-0XB0 provides a compact PLC solution that can reduce the requirement for additional I/O modules in smaller automation applications.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· CPU Model: CPU 1211C
· Order Number: 6ES7211-1HE40-0XB0
· CPU Type: Compact CPU
· Configuration: DC/DC/Relay
· Digital Inputs: 6 DI
· Digital Input Voltage: 24 V DC
· Digital Outputs: 4 DO relay
· Digital Output Rating: 2 A
· Analog Inputs: 2 AI
· Analog Input Range: 0–10 V DC
· Power Supply: DC 20.4–28.8 V DC
· Program/Data Memory: 75 KB
· PLC Platform: SIMATIC S7-1200
· Application: Machine and industrial automation
TECHNICAL FEATURES
1. SIMATIC S7-1200 CPU 1211C
The 6ES7211-1HE40-0XB0 is a CPU 1211C compact PLC, providing the processing and control functions required for compact industrial automation systems.
2. DC/DC/Relay Configuration
This CPU features a DC/DC/relay configuration, combining a DC power supply, 24 V DC digital inputs, and relay-based digital outputs in a single compact PLC unit.
3. 6 Digital Inputs
The CPU provides 6 integrated digital inputs, supporting connection of 24 V DC field signals from switches, sensors, push buttons, machine-status devices, and other compatible digital devices.
4. 4 Relay Digital Outputs
The CPU includes 4 digital relay outputs, each rated up to 2 A, providing flexible switching capability for compatible industrial loads and control devices.
5. Integrated Analog Inputs
The 6ES7211-1HE40-0XB0 includes 2 analog inputs with a 0–10 V DC input range, allowing the PLC to acquire voltage-based analog signals from compatible field instruments.
6. 20.4–28.8 V DC Power Supply
The CPU operates from a DC 20.4–28.8 V DC power supply, making it suitable for standard industrial 24 V DC control-panel power architectures.
7. 75 KB Program/Data Memory
The CPU provides 75 KB of program/data memory, supporting PLC application logic and data requirements for compact automation projects.
8. Compact PLC Design
The integrated CPU, digital I/O and analog inputs provide a compact control solution for applications where panel space and I/O requirements are important considerations.
9. Integrated Digital and Analog I/O
By combining 6 DI, 4 relay DO, and 2 AI directly on the CPU, the module can support a variety of machine-control applications without requiring separate I/O modules for every basic signal.
10. Suitable for Industrial Automation
The S7-1200 CPU 1211C is suitable for machine automation, production equipment, control panels, OEM machinery, material handling, packaging, and other compact PLC applications.
