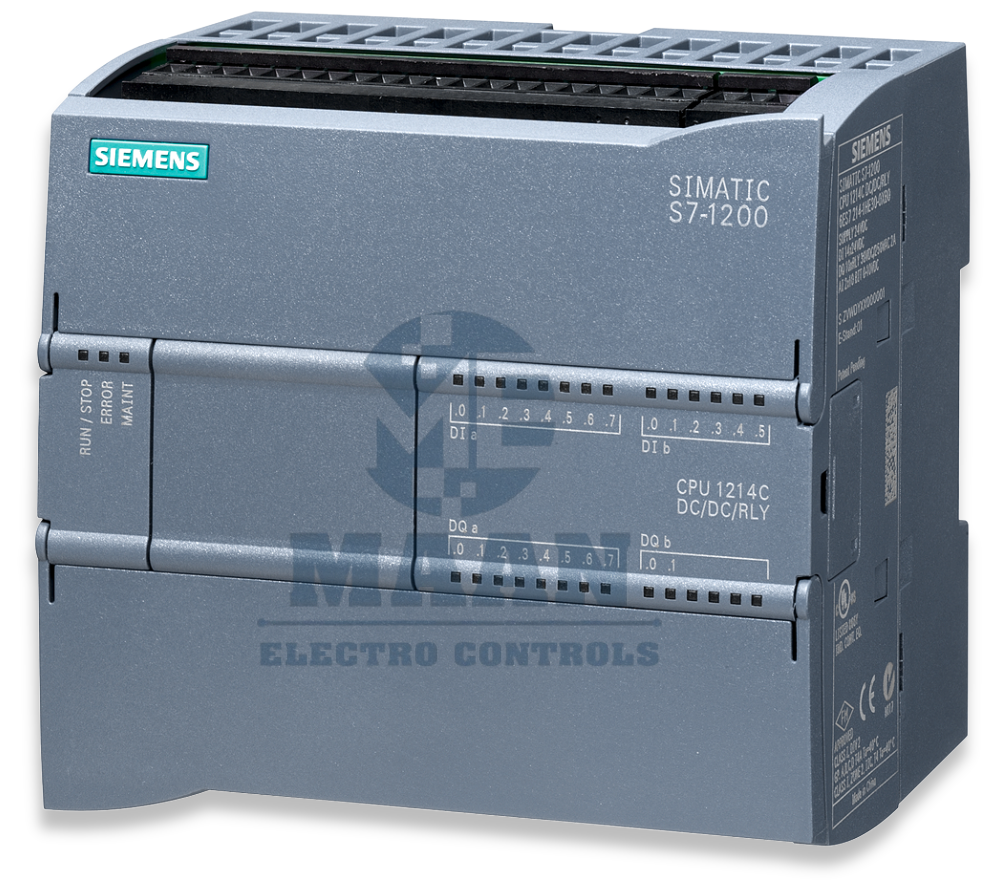

SIEMENS SIMATIC S7-1200 CPU 1214C – 6ES7214-1HG40-0XB0
The Siemens SIMATIC S7-1200 CPU 1214C, 6ES7214-1HG40-0XB0, is a compact PLC designed to provide centralized control for automated machines and industrial equipment. It combines the CPU, digital I/O and analog input channels within one compact controller, helping simplify the design of automation control systems.
This DC/DC/relay CPU provides 14 digital inputs, 10 relay digital outputs and 2 analog inputs. The integrated I/O makes the controller suitable for applications where multiple sensors, switches, contactors, valves and analog field signals need to be managed from a single PLC.
With a 20.4–28.8 V DC power supply and 150 KB program/data memory, the CPU 1214C offers a flexible platform for machine automation, production equipment and industrial control applications.
PRODUCT DETAILS
· Manufacturer: Siemens
· Automation Platform: SIMATIC S7-1200
· CPU: CPU 1214C
· MLFB / Article Number: 6ES7214-1HG40-0XB0
· CPU Design: Compact CPU
· Power Configuration: DC/DC/Relay
· Supply Voltage: 20.4–28.8 V DC
· Digital Inputs: 14
· Digital Input Voltage: 24 V DC
· Digital Outputs: 10
· Digital Output Type: Relay
· Relay Output Rating: Up to 2 A
· Analog Inputs: 2
· Analog Input Signal: 0–10 V DC
· Program/Data Memory: 150 KB
· Communication: Integrated PROFINET
· System: Modular and expandable S7-1200 platform
DIGITAL INPUT CAPABILITY
The CPU incorporates 14 digital inputs for 24 V DC signals, allowing the PLC to receive ON/OFF information from field devices. These inputs can be used for monitoring machine conditions, operator commands, limit switches, proximity sensors, push buttons and other digital signals.
Typical input functions include:
· Start/stop push buttons
· Proximity sensors
· Limit switches
· Selector switches
· Safety-related auxiliary signals
· Machine status feedback
· Sensor-based position detection
DIGITAL OUTPUT CAPABILITY
The controller provides 10 relay outputs, each capable of switching loads up to the specified 2 A rating. Relay outputs provide flexibility when controlling different types of external devices in industrial control applications.
The outputs can be used for:
· Contactors
· Relays
· Solenoid valves
· Motor control circuits
· Indicator lamps
· Audible alarms
· Actuator control
· Machine operating commands
ANALOG INPUT FUNCTION
The integrated 2-channel analog input section accepts 0–10 V DC signals. This allows the PLC to process continuously varying process values rather than only ON/OFF signals.
Typical applications include monitoring:
· Pressure transmitters
· Temperature controllers with voltage output
· Level signals
· Speed references
· Position-related signals
· Process measurement devices
The analog values can be processed within the PLC program and used for monitoring, control logic, alarms or operator display functions.
