6ES7214-1HG40-0XB0

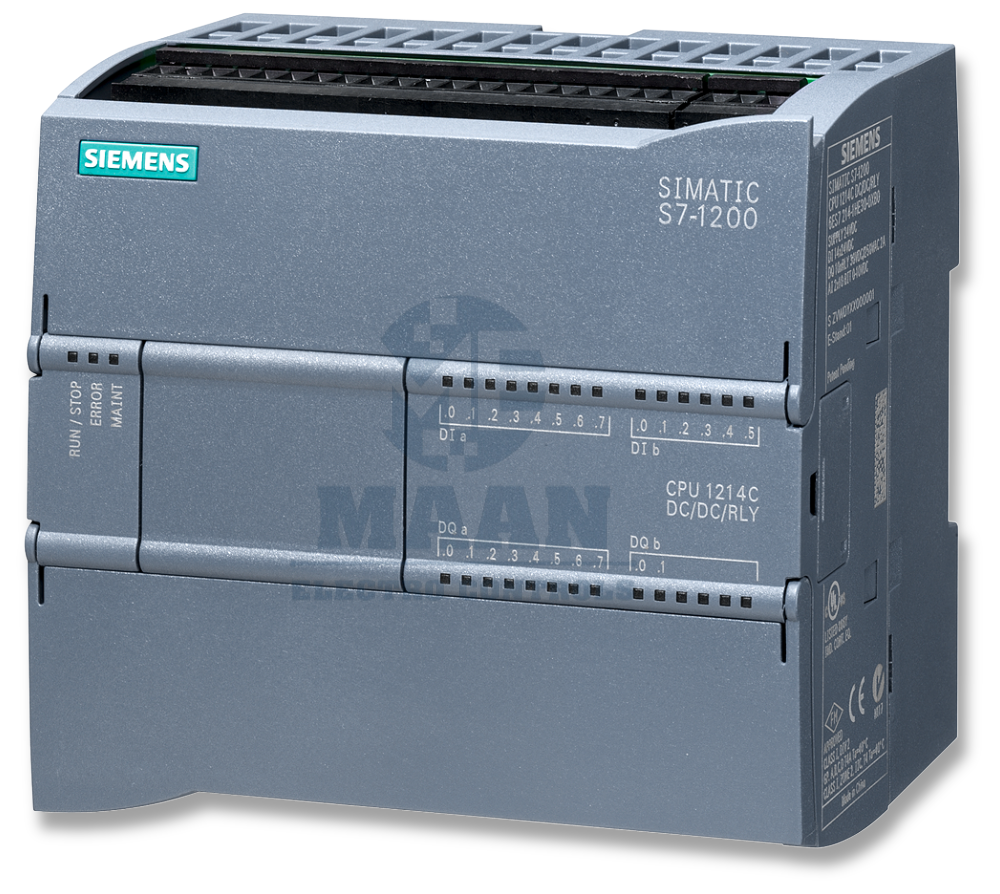

Siemens SIMATIC S7-1200 CPU 1214C – 6ES7214-1HG40-0XB0
The Siemens SIMATIC S7-1200 CPU 1214C, 6ES7214-1HG40-0XB0 is a compact programmable logic controller designed for reliable machine automation and industrial control applications. This DC/DC/relay CPU integrates the processor, digital inputs, relay outputs, and analog inputs into a single compact controller, helping simplify control-panel design and reduce additional hardware requirements.
With 14 digital inputs, 10 relay outputs, 2 analog inputs, and 150 KB program/data memory, the CPU 1214C provides a practical automation platform for machines and systems requiring a combination of discrete and analog signal processing.
PRODUCT TECHNICAL SPECIFICATIONS
Brand : Siemens
Product Family : SIMATIC S7-1200
CPU Model : CPU 1214C
Order Number : 6ES7214-1HG40-0XB0
CPU Design : Compact CPU
Power Supply : 20.4–28.8 V DC
Digital Inputs : 14 × DI
Digital Input Voltage : 24 V DC
Digital Outputs : 10 × DO
Output Technology : Relay
Relay Output Rating : Up to 2 A
Analog Inputs : 2 × AI
Analog Input Signal : 0–10 V DC
Program/Data Memory : 150 KB
PLC Application : Machine & Industrial Automation
Series : S7-1200
BENEFITS
1. Compact PLC Architecture
CPU, digital I/O, and analog inputs are integrated into one compact controller, helping simplify machine-panel construction.
2. Integrated I/O
The built-in 14 DI and 10 relay DO reduce the need for separate I/O modules for many compact applications.
3. Analog Signal Processing
Two integrated 0–10 V analog inputs allow the PLC to interface with compatible analog field devices.
4. Flexible Relay Outputs
Relay outputs provide flexibility for switching appropriate control loads within their specified ratings.
5. Scalable Automation Platform
The S7-1200 family provides an expandable architecture for applications requiring additional modules and capabilities.
6. Reduced Panel Complexity
Integrated functions can help reduce component count, wiring, and installation requirements in suitable applications.
7. Suitable for OEM Machines
The compact CPU format makes it practical for OEM machine builders developing standardized automation panels.
