6ES7215-1AG40-0XB0

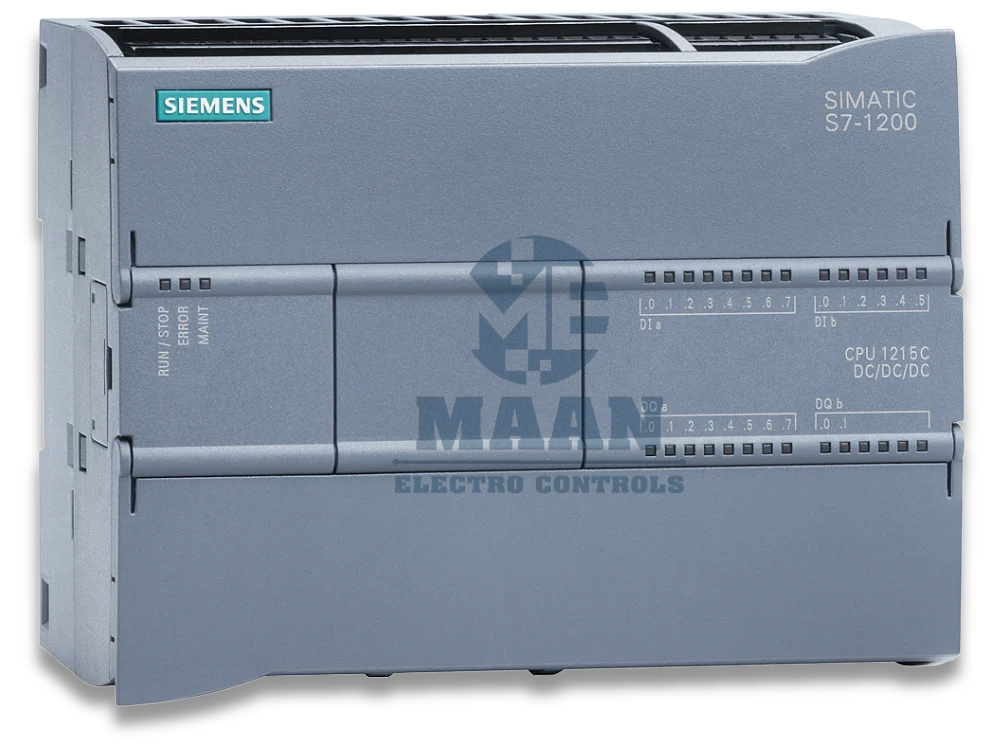

The Siemens SIMATIC S7-1200 CPU 1215C, 6ES7215-1AG40-0XB0, is a compact DC/DC/DC PLC designed for reliable machine control, sequence automation, monitoring, and industrial communication. With two integrated PROFINET ports and a combination of digital and analog onboard I/O, the CPU provides a flexible control solution without requiring separate signal modules for many standard applications.
Its integrated 14 digital inputs, 10 digital outputs, 2 analog inputs, and 2 analog outputs make it suitable for controlling machines and processes that require both discrete and analog signals.
Product Features
1. Compact PLC Architecture
The CPU 1215C combines the controller, communication interfaces, and onboard I/O into a single compact unit. This can help simplify control-panel design and reduce additional hardware requirements.
2. 14 Digital Inputs
The CPU provides 14 digital inputs at 24 V DC for connecting field devices such as:
· Proximity sensors
· Photoelectric sensors
· Limit switches
· Push buttons
· Selector switches
· Machine-status signals
· Safety-related auxiliary signals where appropriately engineered
3. 10 Digital Outputs
The 10 digital outputs provide 24 V DC switching capability with up to 0.5 A output current, supporting control of suitable:
· Relays
· Solenoid valves
· Contactors
· Indicator lamps
· Actuators
· Control signals
4. Integrated Analog Inputs
Two onboard 0–10 V DC analog inputs allow the PLC to process variable signals from compatible field instruments, sensors, and transmitters.
Typical applications include:
· Pressure monitoring
· Temperature transmitter interfaces
· Level measurement
· Speed reference feedback
· Position-related signals
· Process-variable monitoring
5. Integrated Analog Outputs
The CPU includes 2 × 0–20 mA DC analog outputs, allowing the controller to generate proportional control signals for compatible equipment.
These can be used for applications such as:
· Speed references
· Valve control
· Process regulation
· Flow control
· Pressure control
· Analog actuator commands
6. Dual PROFINET Ports
The CPU features 2 integrated PROFINET ports, providing industrial Ethernet connectivity for communication with compatible automation devices.
PROFINET can be used to connect:
PLC → HMI → Drives → Remote I/O → Industrial Network Devices
This makes the CPU suitable for connected machine and production-line architectures.
