6ES7215-1AG40-0XB0

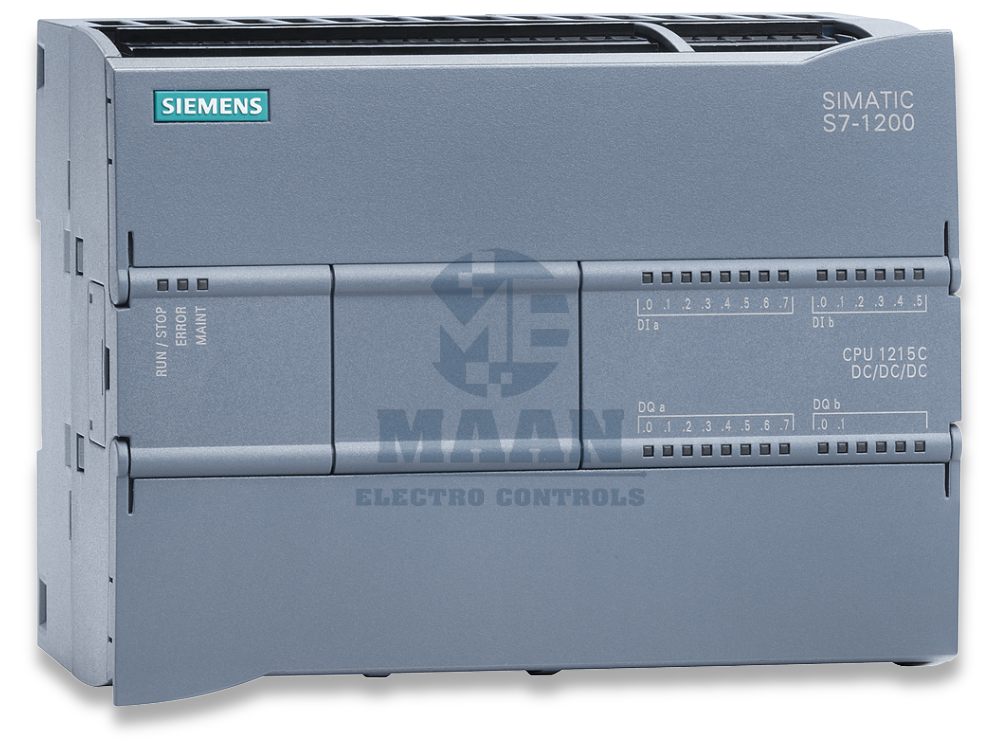

Siemens SIMATIC S7-1200 CPU 1215C – 6ES7215-1AG40-0XB0
The Siemens SIMATIC S7-1200 CPU 1215C DC/DC/DC, 6ES7215-1AG40-0XB0 is a compact and versatile PLC designed for advanced machine automation, process control, and industrial applications. It combines a high-performance CPU with integrated digital and analog I/O, along with 2 PROFINET ports, providing flexible communication and efficient system integration.
PRODUCT SPECIFICATIONS
Product Series : SIMATIC S7-1200
CPU Model : CPU 1215C
Order Number : 6ES7215-1AG40-0XB0
CPU Type : Compact CPU
Power Supply : DC 20.4–28.8 V DC
CPU Configuration : DC/DC/DC
Digital Inputs : 14 DI, 24 V DC
Digital Outputs : 10 DO, 24 V DC
Output Current : 0.5 A
Analog Inputs : 2 AI, 0–10 V DC
Analog Outputs : 2 AO, 0–20 mA DC
PROFINET Interfaces : 2 PROFINET ports
Program/Data Memory : 200 KB
Application : Machine & Factory Automation
Mounting : DIN rail / control cabinet integration
FEATURES
- CPU 1215C compact architecture integrates CPU, digital I/O and analog I/O in one unit.
- 14 digital inputs for connecting sensors, switches and other 24 V DC field devices.
- 10 digital outputs with up to 0.5 A output capability for controlling actuators and automation devices.
- 2 analog inputs, 0–10 V DC, suitable for voltage-based measurement signals.
- 2 analog outputs, 0–20 mA DC, for proportional control of field devices and process equipment.
- Two PROFINET ports provide flexible Ethernet-based industrial communication.
- 200 KB program/data memory supports control programs and application data.
- 24 V DC power supply makes the CPU suitable for standard industrial control panels.
- Compact construction helps reduce panel space and simplifies PLC installation.
APPLICATIONS
- Machine automation and control
- Conveyor and material-handling systems
- Packaging machinery
- Pump and motor control
- Assembly machines
- Process monitoring
- Production-line automation
- HVAC and building automation
- Sensor and actuator control
- Analog process control
- Industrial Ethernet/PROFINET-based systems
BENEFITS
Integrated I/O: Reduces the need for additional basic I/O modules in compact automation applications.
Flexible Analog Control: Built-in AI and AO channels allow the PLC to handle analog measurement and control signals.
PROFINET Connectivity: Two PROFINET ports support communication with HMIs, drives, remote devices and other automation components.
Space-Saving Design: The compact CPU is well suited for control cabinets where installation space is limited.
Scalable S7-1200 Platform: Can be expanded with suitable signal modules, communication modules and technology modules as application requirements grow.
Efficient Machine Control: Combines processing, digital control, analog handling and communication in a single PLC platform.
