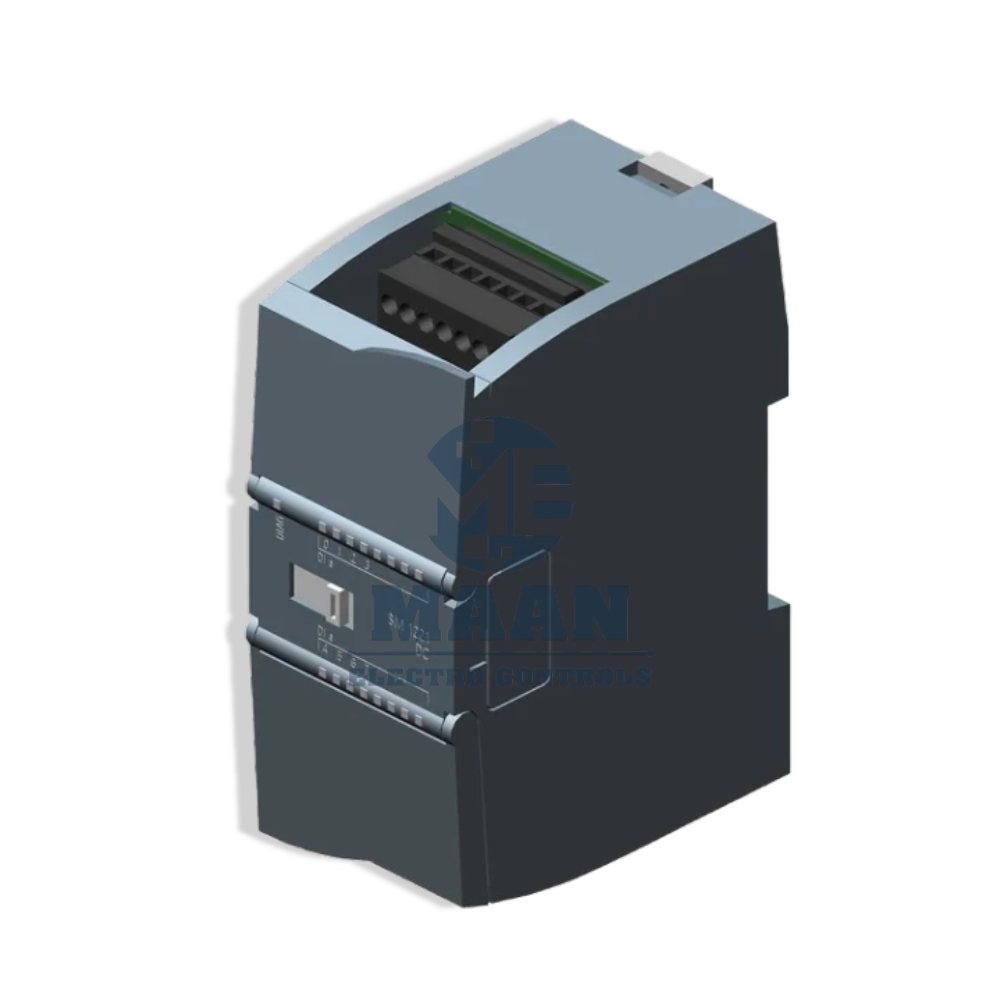

6ES7221-1BF32-0XB0
The Siemens 6ES7221-1BF32-0XB0 is a SIMATIC S7-1200 SM 1221 Digital Input Module featuring 8 digital inputs with 24 V DC operation and Sink/Source capability. It is designed to expand the digital input capacity of an S7-1200 automation system and provide reliable signal acquisition from connected field devices.
The module is suitable for applications where multiple discrete signals need to be monitored by a PLC, including machine sensors, operator controls, equipment status signals and automation interlocks. Its compact design makes it practical for installation inside industrial control panels while maintaining the modular architecture of the S7-1200 platform.
BENEFITS OF 6ES7221-1BF32-0XB0
· Expanded PLC Input Capacity: Adds 8 digital input channels to the SIMATIC S7-1200 system, making it easier to accommodate additional field signals.
· 24 V DC Industrial Signaling: Works with commonly used 24 V DC control signals for reliable communication between field devices and the PLC.
· Flexible Sink/Source Inputs: Supports different field wiring arrangements, providing greater flexibility during machine and panel design.
· Direct Field Signal Acquisition: Enables the PLC to receive ON/OFF information from sensors, switches and operator devices.
· Improved System Scalability: Provides a practical way to extend an existing S7-1200 control system without replacing the main CPU.
· Efficient Control-Panel Integration: The compact module helps maintain an organized and space-efficient automation cabinet.
· Multiple Device Connectivity: Eight input channels allow several discrete devices to be monitored through a single expansion module.
· Useful for Machine Sequencing: Input signals can be used within PLC logic for starting sequences, stopping operations, interlocks and equipment status detection.
· Simplifies Automation Expansion: Suitable when additional digital signals are required during machine modification or system expansion.
· Reliable Industrial Monitoring: Helps the PLC continuously monitor the operating conditions represented by connected digital field devices.
SIEMENS AUTOMATION INTEGRATION
The 6ES7221-1BF32-0XB0 forms part of the SIMATIC S7-1200 modular automation platform and is used when additional digital input points are required in a PLC application.
The module acts as an interface between field-level devices and the PLC control program. Signals from proximity sensors, photoelectric sensors, limit switches, push buttons, selector switches, relay contacts and machine-status devices can be connected to the available digital input channels.
Within a Siemens automation solution, the input module can work as part of a larger control architecture consisting of an S7-1200 CPU, HMI, communication modules, remote devices and SINAMICS drive systems. Digital signals received by the SM 1221 can be processed by the CPU and used to control machine operations according to the programmed automation sequence.
This makes the module suitable for both new machine-control projects and existing S7-1200 systems requiring additional digital input capacity.
