6ES7221-1BH32-0XB0

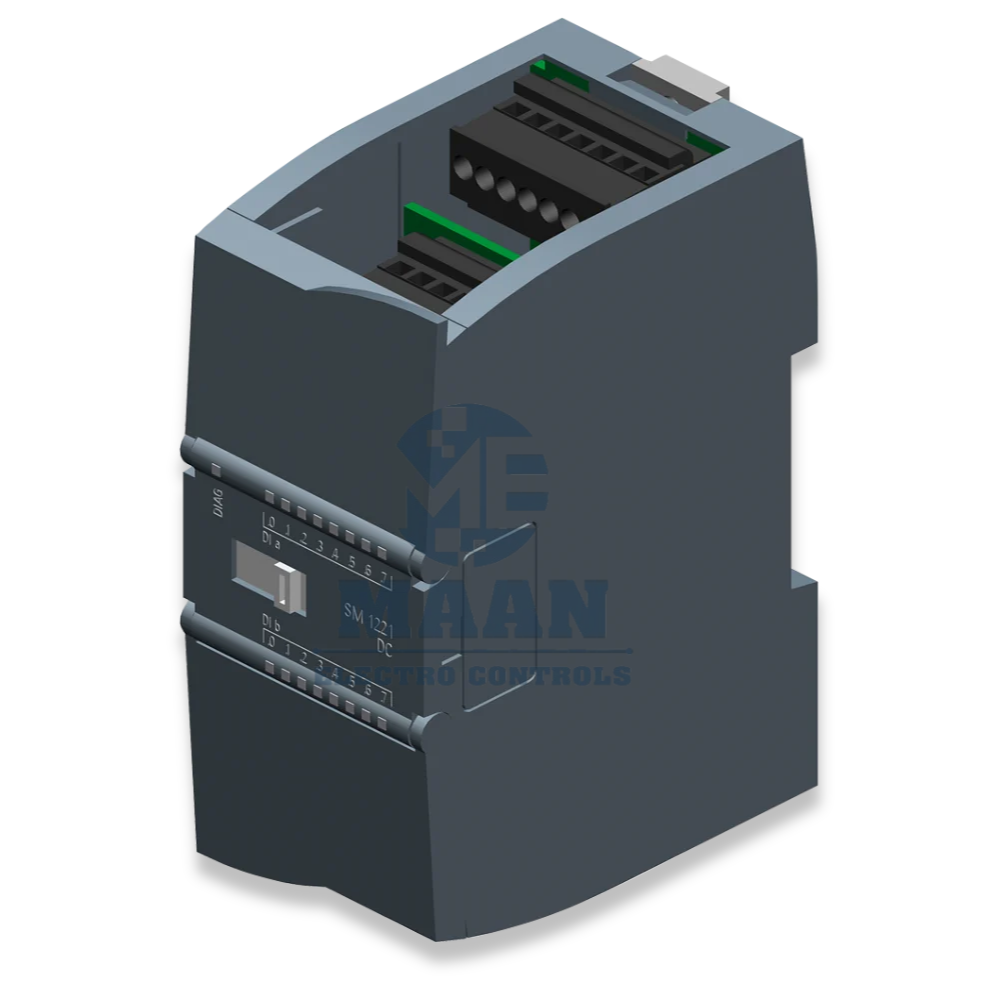

The Siemens SIMATIC S7-1200 SM 1221 6ES7221-1BH32-0XB0 is a 16-channel digital input signal module designed to expand the input capacity of S7-1200 PLC systems. It provides 16 digital inputs for 24 V DC signals and supports flexible sink/source wiring, making it suitable for a wide range of industrial control applications.
The module can be used to interface field devices such as push buttons, selector switches, proximity sensors, limit switches, photoelectric sensors, contactors and other 24 V DC switching devices with the S7-1200 CPU.
PRODUCT SPECIFICATIONS
Part Number : 6ES7221-1BH32-0XB0
Product Family : SIMATIC S7-1200
Module : SM 1221
Module Type Digital Input
Number of Inputs : 16 DI
Rated Input Voltage : 24 V DC
Input Signal : Digital / ON-OFF
Input Configuration : Sink/Source
Application : PLC Digital Input Expansion
System : Siemens S7-1200
Field Interface : 24 V DC Digital Signals
FEATURES
- 16 digital input channels for expanding S7-1200 PLC input capacity
- Designed for 24 V DC industrial signals
- Supports sink/source input configurations
- Suitable for connection of sensors and switching devices
- Compact modular design for efficient control-panel installation
- Integrates directly with the SIMATIC S7-1200 automation platform
- Suitable for machine automation and general industrial control
- Helps increase the number of available digital input points without replacing the CPU
BENEFITS
Flexible Field Wiring: Sink/source capability provides greater flexibility when connecting different types of 24 V DC field devices.
Expanded PLC Capacity: Adds 16 digital input points to an S7-1200 PLC system, allowing additional sensors and control signals to be monitored.
Easy System Integration: Designed specifically for the SIMATIC S7-1200 platform, making it suitable for modular PLC architectures.
Panel-Friendly Design: The compact module format supports organized and space-efficient control-panel layouts.
Reliable Signal Acquisition: Provides the PLC with discrete ON/OFF information from industrial field devices for machine sequencing and monitoring.
