6ES7222-1BF32-0XB0

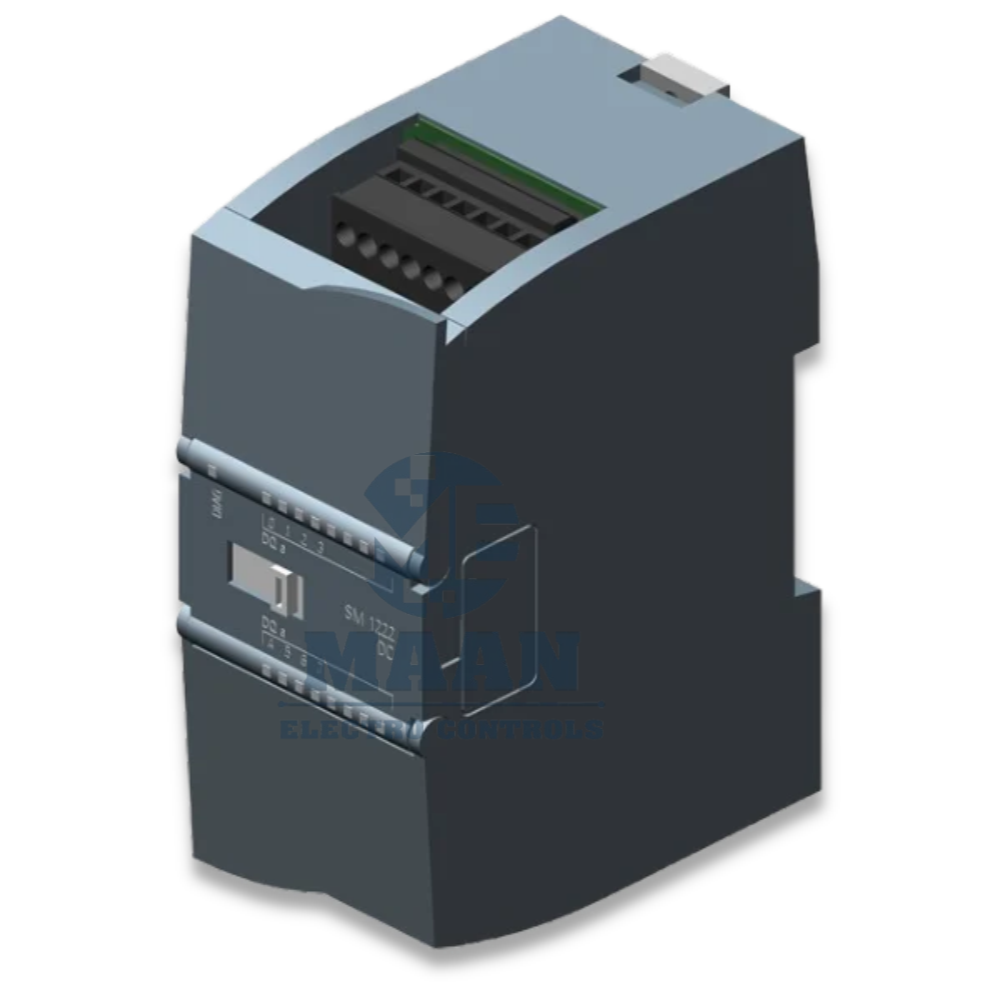

The Siemens 6ES7222-1BF32-0XB0 is a SIMATIC S7-1200 SM 1222 Digital Output Signal Module designed to provide additional digital output channels to an S7-1200 PLC system.
The module features 8 digital transistor outputs, designed for 24 V DC switching applications with an output capability of 0.5 A. It can be used to interface the PLC with external actuators, relays, contactors, solenoid valves, signal lamps and other DC-controlled devices.
With its compact architecture and direct integration into the S7-1200 platform, the SM 1222 provides a practical solution for expanding PLC output capacity in automated machinery and industrial control systems.
PRODUCT TECHNICAL DATA
Siemens Article Number : 6ES7222-1BF32-0XB0
Product Family : SIMATIC S7-1200
Module : SM 1222
Module Function : Digital Output
Number of Outputs : 8 DO
Rated Output Voltage : 24 V DC
Output Technology : Transistor
Output Current : 0.5 A
Signal Type : Digital
Application : DC actuator/load control
System Compatibility : SIMATIC S7-1200
FEATURES
1. 8 DIGITAL OUTPUT CHANNELS
The module provides 8 digital outputs, allowing an S7-1200 controller to operate additional field devices without replacing the main CPU.
2. 24 V DC OPERATION
The 24 V DC output configuration makes the module suitable for commonly used industrial control circuits and DC automation components.
3. TRANSISTOR OUTPUT TECHNOLOGY
Transistor outputs are well suited for frequent digital switching applications where fast and dependable electronic switching is required.
4. 0.5 A OUTPUT CAPABILITY
Each output is designed for applications requiring up to 0.5 A, subject to the applicable Siemens operating and load specifications.
5. PLC OUTPUT EXPANSION
The SM 1222 can be used when additional digital output points are required beyond the onboard I/O available on the selected S7-1200 CPU.
6. COMPACT INDUSTRIAL DESIGN
Its compact SIMATIC S7-1200 architecture helps optimize control-panel space while providing additional I/O functionality.
7. INDUSTRIAL AUTOMATION INTERFACING
The module can interface PLC logic with external switching devices and machine actuators used in automated production systems.
