6ES7222-1BF32-0XB0

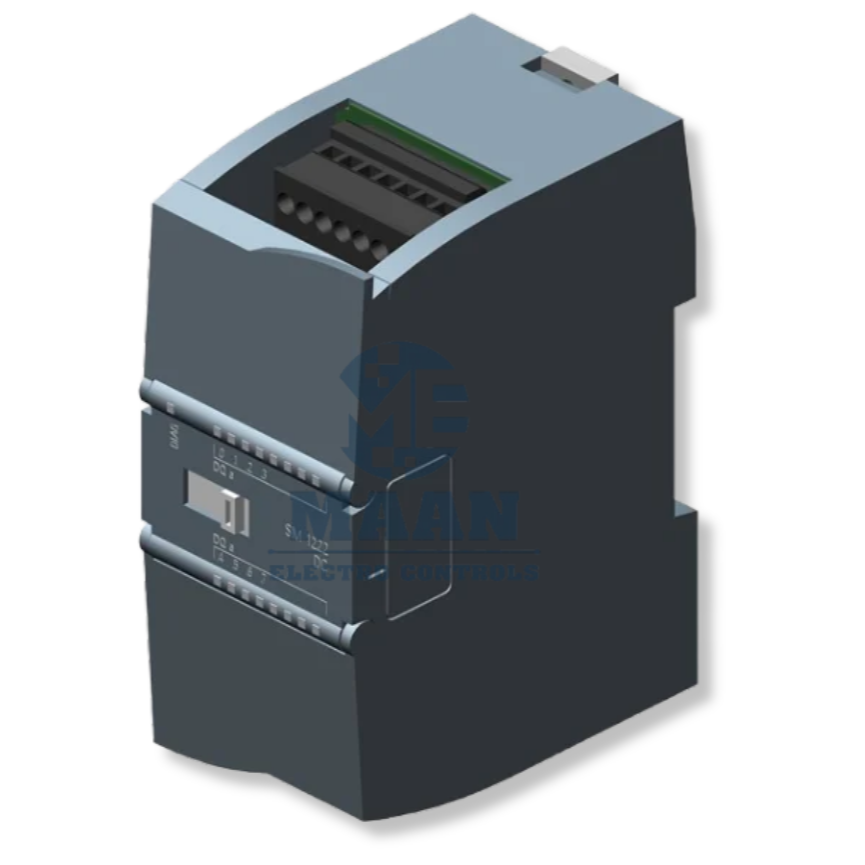

6ES7222-1BF32-0XB0 – SIMATIC S7-1200 SM 1222 Digital Output Module is a compact expansion module designed to extend the digital output capability of Siemens SIMATIC S7-1200 PLC systems. It provides 8 digital outputs, each operating at 24 V DC with transistor output technology and a rated output current of 0.5 A.
The SM 1222 module is suitable for controlling digital actuators such as contactors, relays, solenoid valves, indicator lamps, motor control interfaces and other 24 V DC loads. Its transistor-based outputs support fast and reliable switching, making it suitable for machine automation and industrial control applications.
SIEMENS AUTOMATION INTEGRATION
The SM 1222 6ES7222-1BF32-0XB0 can be integrated with a SIMATIC S7-1200 CPU to increase the number of available digital outputs. In an automation system, the PLC processes signals from sensors and control logic, while the SM 1222 outputs can operate connected field devices such as solenoid valves, relays, contactors, lamps and other compatible 24 V DC actuators.
It can be configured as part of a Siemens PLC automation architecture using the appropriate TIA Portal engineering environment, depending on the CPU and project configuration.
APPLICATIONS
- Machine automation
- Conveyor control systems
- Packaging machinery
- Material handling equipment
- Assembly machines
- Control panels
- Production-line automation
- Industrial actuator control
- OEM machine applications
FEATURES
· 8 Digital Outputs (8 DO) for reliable control of connected field devices.
· 24 V DC output voltage suitable for standard industrial automation applications.
· Transistor output technology enables fast and dependable switching.
· 0.5 A output current per digital output for compatible DC loads.
· Designed for SIMATIC S7-1200 PLC systems as an expansion module.
· Suitable for controlling solenoid valves, relays, contactors, indicator lamps and other actuators.
· Compact SM 1222 module design helps save control-panel space.
· Provides additional output capacity for applications requiring more digital control points.
· Suitable for machine automation, OEM systems and industrial control panels.
· Supports integration into Siemens PLC-based automation architectures.
