6ES7222-1BF32-0XB0

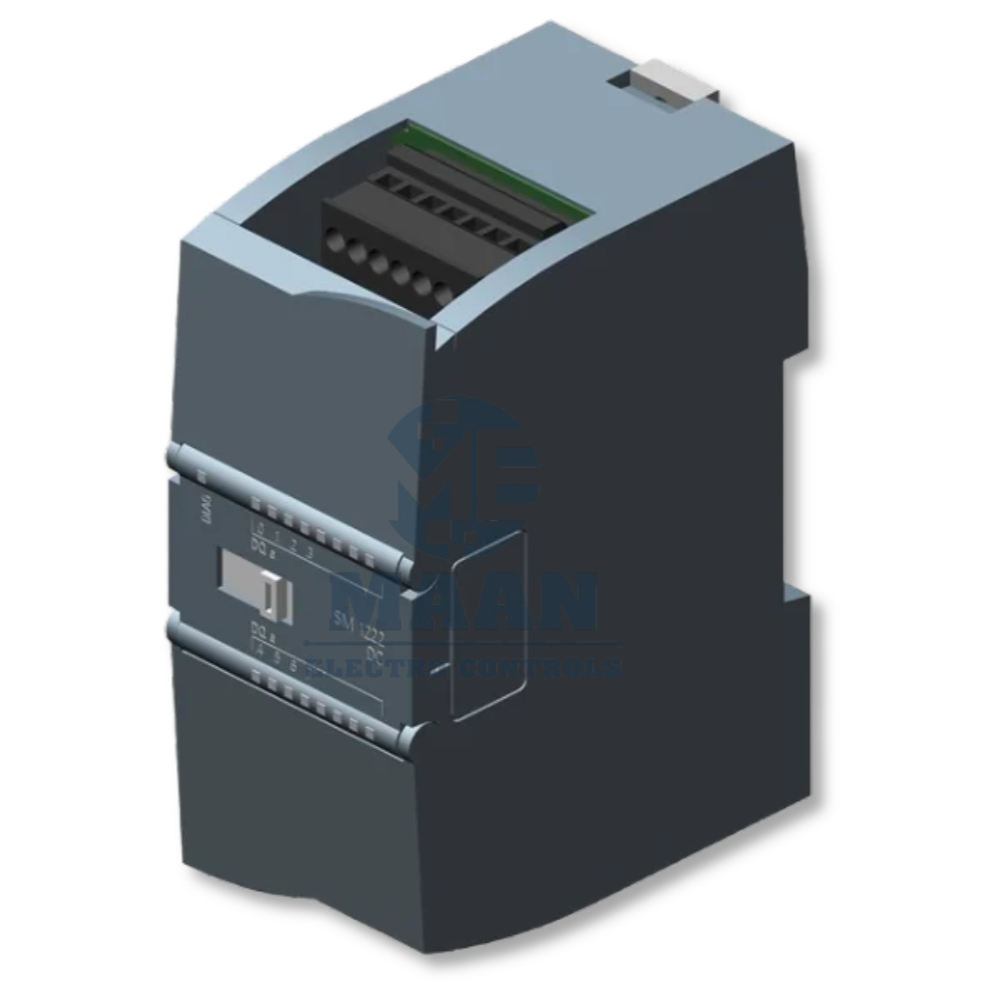

SIEMENS SIMATIC S7-1200 SM 1222 – 8 DIGITAL OUTPUT MODULE
The Siemens SIMATIC S7-1200 SM 1222 is a compact digital output expansion module designed to extend the output capacity of S7-1200 PLC systems. It provides 8 digital outputs, operating at 24 V DC, with transistor outputs rated at 0.5 A per channel.
Designed for reliable industrial control, the SM 1222 enables PLCs to interface efficiently with field devices such as solenoid valves, contactors, relays, indicator lamps and other 24 V DC actuators. Its compact design makes it suitable for machine automation, control panels and modular automation applications.
PRODUCT DETAILS
· Manufacturer: Siemens
· Series: SIMATIC S7-1200
· Module: SM 1222 Digital Output
· MLFB / Part Number: 6ES7222-1BF32-0XB0
· Digital Outputs: 8 DO
· Output Voltage: 24 V DC
· Output Type: Transistor
· Output Current: 0.5 A
· Application: PLC output expansion and industrial automation
BENEFITS OF SIEMENS SM 1222 – 6ES7222-1BF32-0XB0
· 8 Digital Outputs – Provides 8 output channels for controlling connected automation devices.
· 24 V DC Operation – Suitable for commonly used industrial control voltage applications.
· Transistor Output Technology – Enables fast and reliable digital switching for compatible loads.
· 0.5 A Output Rating – Supports suitable 24 V DC field devices within the specified output capacity.
· PLC Output Expansion – Adds additional digital output capability to a SIMATIC S7-1200 configuration.
· Compact Design – Helps optimize space inside automation and electrical control panels.
· Easy System Integration – Designed for integration with the SIMATIC S7-1200 PLC platform.
· Flexible Machine Control – Suitable for switching signals to actuators and other compatible field devices.
· Industrial Automation Ready – Applicable to machinery, conveyors, packaging systems and production equipment.
· OEM-Friendly Solution – Useful for machine builders, panel manufacturers and system integrators.
· Simplified Control Architecture – Provides additional output points without replacing the existing CPU.
· Reliable Siemens Automation Platform – Part of the established SIMATIC S7-1200 automation family.
