6ES7222-1BH32-0XB0

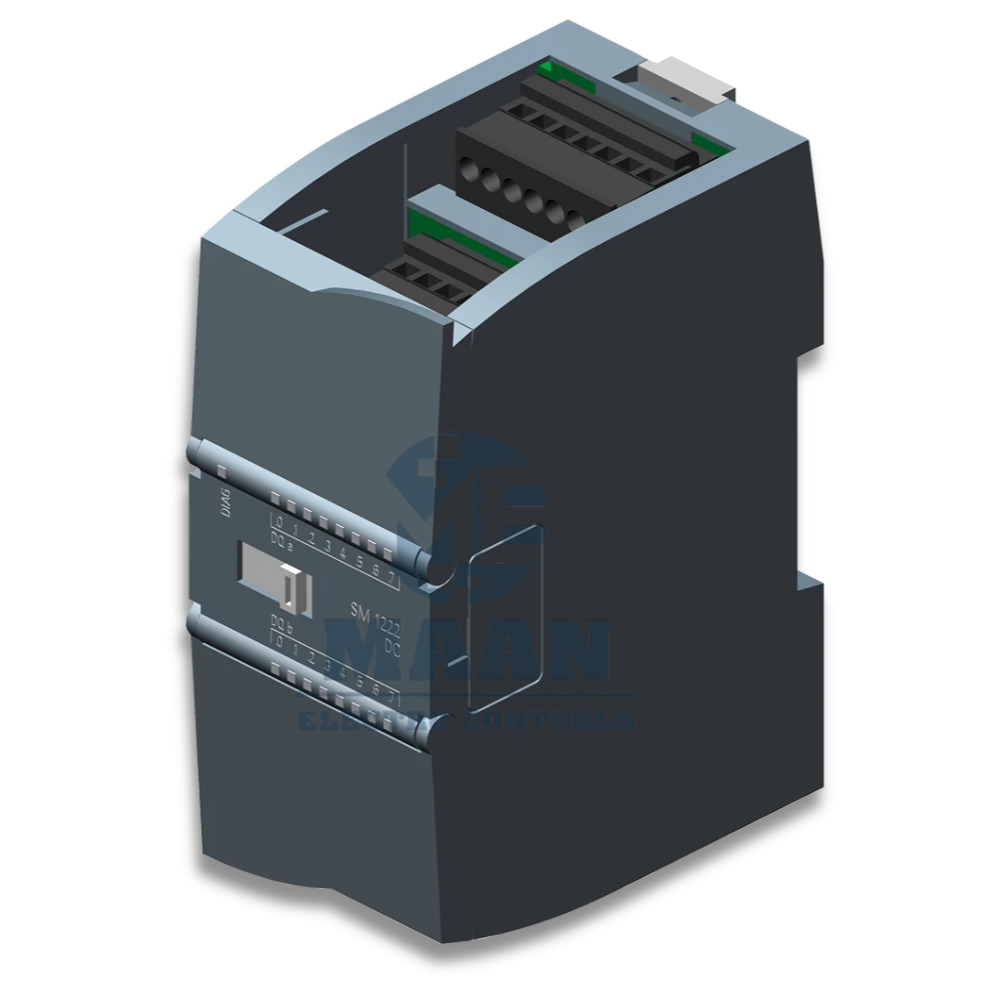

The Siemens 6ES7222-1BH32-0XB0 is a SIMATIC S7-1200 SM 1222 Digital Output Module designed to expand the digital output capacity of compatible S7-1200 PLC configurations. The module provides 16 digital outputs, operating at 24 V DC, with transistor switching outputs rated at 0.5 A.
It is suitable for industrial control systems where multiple DC field devices need to be switched directly from the PLC. The module can be used for controlling actuators, signal devices, solenoids, relays, contactor interfaces, valves, and other compatible automation loads.
PRODUCT SPECIFICATIONS
Manufacturer : Siemens
Product Family : SIMATIC S7-1200
Module Series : SM 1222
Article Number : 6ES7222-1BH32-0XB0
Module Type : Digital Output Module
Number of Digital Outputs : 16 DO
Output Voltage : 24 V DC
Output Technology : Transistor
Output Current : 0.5 A per output
Application : PLC Digital Output Expansion
System : SIMATIC S7-1200
Mounting Concept : S7-1200 modular system
TECHNICAL FEATURES
1. 16 Digital Outputs
The SM 1222 provides 16 independent digital output channels, enabling the PLC to control a larger number of field devices without replacing the main CPU.
2. 24 V DC Transistor Outputs
The module uses 24 V DC transistor outputs, making it suitable for electronic switching of compatible DC loads commonly used in industrial automation.
3. 0.5 A Output Capability
Each output is specified for 0.5 A, providing practical switching capability for many control-panel and machine-automation loads.
4. PLC Expansion Capability
The module can be incorporated into an S7-1200 control architecture when additional digital outputs are required.
5. Compact Automation Design
Its modular S7-1200 format helps maintain a compact control-panel arrangement while expanding I/O capacity.
6. Suitable for Automated Sequencing
Digital outputs can be used to execute programmed ON/OFF commands for machine sequences, interlocks, actuators, and process-control functions.
