6ES7222-1BH32-0XB0 IN DINDIGUL

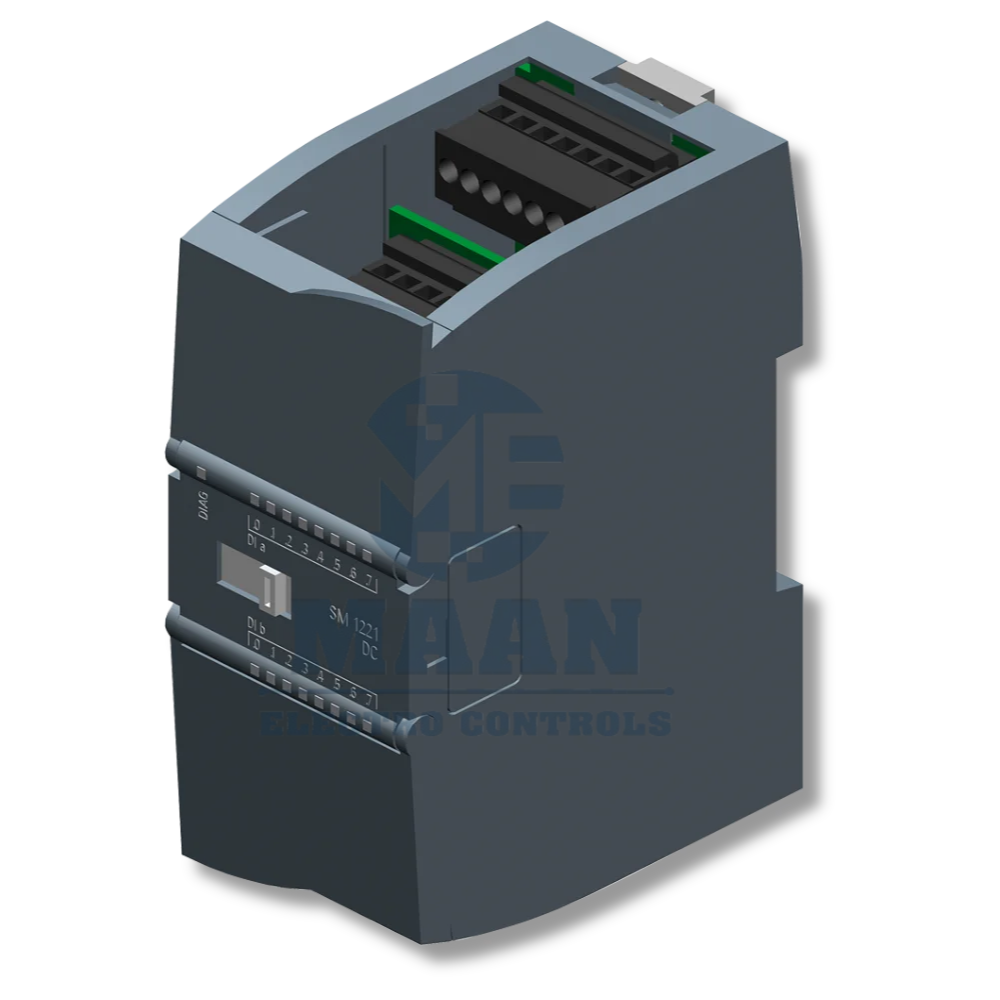

Siemens SIMATIC S7-1200 SM 1222 Digital Output Module – 6ES7222-1BH32-0XB0
The Siemens SIMATIC S7-1200 SM 1222 Digital Output Module – 6ES7222-1BH32-0XB0 is a compact digital output expansion module designed for industrial automation, machine control, OEM machinery, production lines, control panels, manufacturing plants, and PLC-based automation systems.
This SM 1222 digital output module provides 16 digital outputs (DO) with 24 V DC transistor outputs, rated at 0.5 A. It is designed to expand the digital output capacity of compatible SIMATIC S7-1200 PLC systems, allowing additional field devices and actuators to be controlled from the PLC.
For automation requirements in Dindigul, Tamil Nadu, and across India, the 6ES7222-1BH32-0XB0 is suitable for machine builders, OEMs, system integrators, panel manufacturers, manufacturing plants, and industrial automation users requiring additional 24 V DC digital outputs.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Module: SM 1222
· Order Number: 6ES7222-1BH32-0XB0
· Product Type: Digital Output Module
· Digital Outputs: 16 DO
· Output Voltage: 24 V DC
· Output Type: Transistor
· Output Current: 0.5 A
· PLC Platform: SIMATIC S7-1200
· Application: Digital output expansion and machine control
TECHNICAL FEATURES
1. SIMATIC S7-1200 SM 1222
The 6ES7222-1BH32-0XB0 is an SM 1222 digital output module designed to expand the output capabilities of compatible S7-1200 PLC systems.
2. 16 Digital Outputs
The module provides 16 digital outputs, allowing the PLC system to control multiple compatible field devices and actuators.
3. 24 V DC Output
The digital outputs operate at 24 V DC, making the module suitable for common industrial control-panel and machine-automation architectures.
4. Transistor Outputs
The module uses transistor-type digital outputs, providing electronic switching for compatible 24 V DC loads and automation devices.
5. 0.5 A Output Rating
Each digital output is rated at 0.5 A, supporting suitable connected control loads within the specified operating conditions.
6. PLC Output Expansion
The SM 1222 can be used to increase the available digital output capacity of an S7-1200 PLC, providing additional channels for machine-control applications.
7. Compact Automation Solution
The module provides additional digital outputs while maintaining the modular architecture of the SIMATIC S7-1200 platform.
8. Suitable for Machine Control
The 16 DO channels can be used for compatible actuators, indicator devices, relays, solenoid valves, contactor-control circuits, and other 24 V DC automation loads.
