6ES7222-1BH32-0XB0

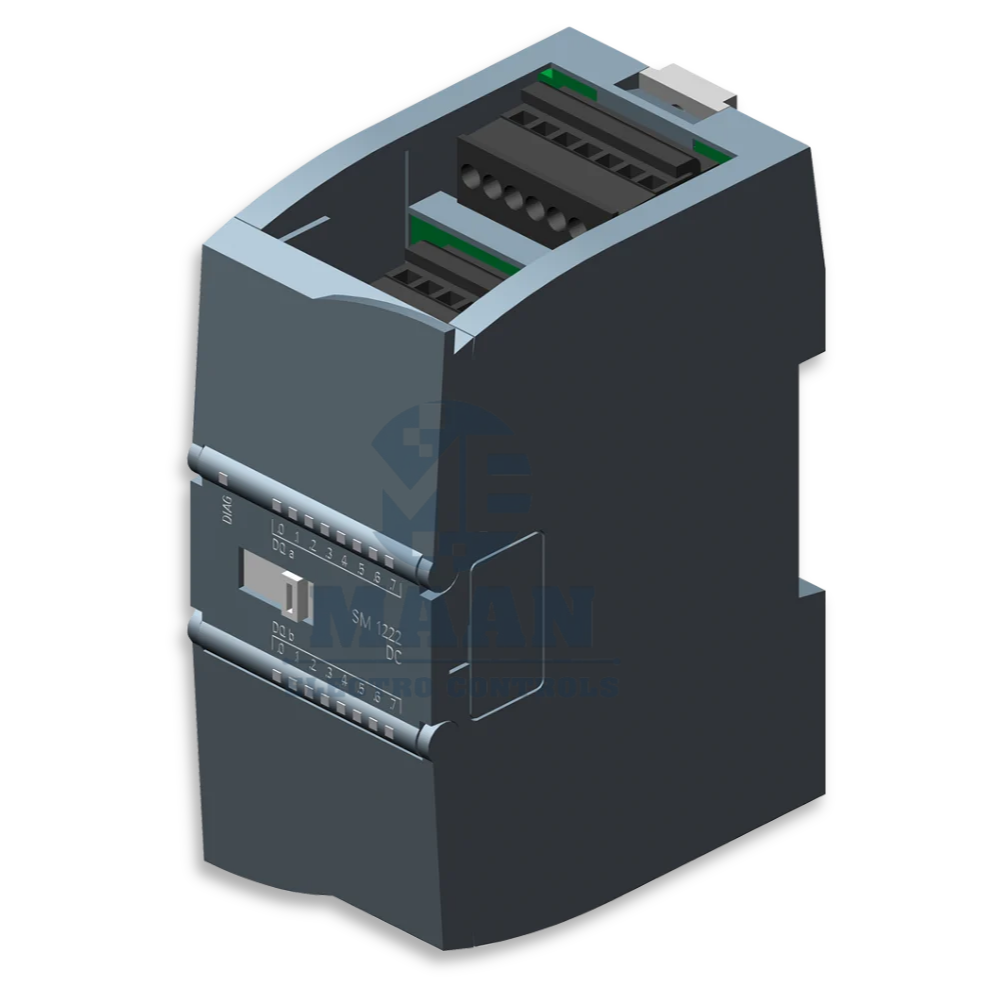

Siemens 6ES7222-1BH32-0XB0 – SIMATIC S7-1200 SM 1222 Digital Output Module
The Siemens 6ES7222-1BH32-0XB0 is a SIMATIC S7-1200 SM 1222 digital output expansion module featuring 16 digital transistor outputs for 24 V DC industrial control applications. It expands the output capability of an S7-1200 PLC, allowing additional actuators, switching devices and machine-control signals to be managed directly from the automation system.
Designed for flexible PLC expansion, the SM 1222 16DO module provides 16 individual 24 V DC transistor outputs with an output capability of up to 0.5 A per channel. Its compact design makes it suitable for control cabinets, machine panels and automated production equipment where additional digital outputs are required.
The module can be used alongside SIMATIC S7-1200 CPUs to increase the number of available digital control points without replacing the primary CPU.
TECHNICAL SPECIFICATIONS
· Siemens Article Number: 6ES7222-1BH32-0XB0
· PLC Series: SIMATIC S7-1200
· Module: SM 1222
· Module Type: Digital Output Module
· Number of Digital Outputs: 16 DO
· Output Type: Transistor
· Output Voltage: 24 V DC
· Output Current: 0.5 A per output
· Signal Type: Digital
· Application: PLC output expansion
· Mounting: S7-1200 modular system
· Suitable For: Industrial automation and machine control
TYPICAL APPLICATIONS
· Machine automation
· Conveyor control systems
· Packaging machinery
· Material handling equipment
· Assembly machines
· Production-line automation
· Control panels
· Process-control equipment
· Industrial switching applications
· OEM machine automation
· Automated material transfer systems
BENEFITS
· 16 digital outputs in one compact expansion module
· 24 V DC transistor technology for digital switching applications
· 0.5 A output capability per channel
· Expands the I/O capacity of compatible S7-1200 PLC systems
· Suitable for machine builders and OEM automation panels
· Helps accommodate applications requiring additional output points
· Simplifies integration of additional field devices
· Suitable for compact industrial control cabinets
· Supports scalable S7-1200 automation architectures
