6ES7222-1BH32-0XB0

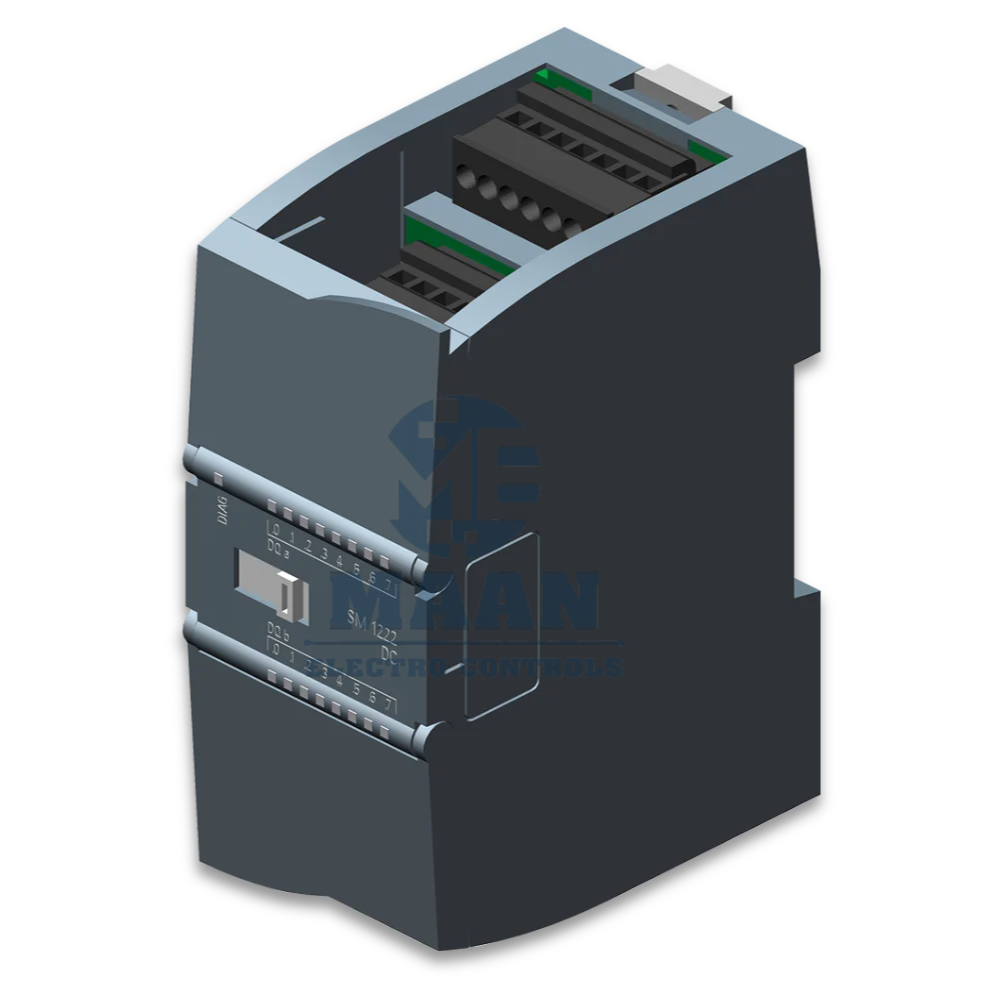

The Siemens SIMATIC S7-1200 SM 1222 – 6ES7222-1BH32-0XB0 is a digital output expansion module designed to extend the output capability of S7-1200 PLC systems. It provides 16 digital outputs with 24 V DC transistor switching and 0.5 A output capability, making it suitable for controlling industrial devices such as contactors, relays, solenoid valves, indicator lamps, and other DC loads.
The module enables reliable PLC-based output control while supporting organized machine wiring and flexible automation system expansion. It is well suited for machine builders, OEM panels, process equipment, packaging systems, conveyor automation, and industrial control applications where additional digital outputs are required.
PRODUCT SPECIFICATIONS
· Product: SIMATIC S7-1200 Digital Output SM 1222
· Order Number: 6ES7222-1BH32-0XB0
· Digital Outputs: 16 DO
· Output Voltage: 24 V DC
· Output Type: Transistor
· Output Current: 0.5 A per output
· Module Type: Digital Output Expansion Module
· Series: Siemens SIMATIC S7-1200
· Application: PLC-based machine and industrial automation control
SIEMENS AUTOMATION INTEGRATION
The SM 1222 digital output module integrates with the SIMATIC S7-1200 PLC platform to provide additional output channels for machine-control systems. It can be used to interface PLC logic with field devices and electrically operated components, helping create a structured control architecture.
With 16 transistor digital outputs, the module is suitable for applications requiring multiple 24 V DC switching signals. It can be incorporated into OEM control panels, automated machinery, conveyor systems, packaging equipment, material-handling systems, and production-line automation.
The SM 1222 can also form part of a broader Siemens automation solution involving S7-1200 CPUs, signal modules, HMI systems, communication networks, drives, and other industrial automation components.
BENEFITS
- 16 digital outputs for expanded machine control
- 24 V DC transistor outputs for compatible field devices
- 0.5 A output capability per specified output
- Expands the I/O capability of an S7-1200 PLC system
- Suitable for high-volume digital switching applications
- Supports compact and modular control-panel design
- Useful for OEM and machine-builder automation
- Simplifies expansion when additional output points are required
- Suitable for controlling multiple discrete actuators and indicators
