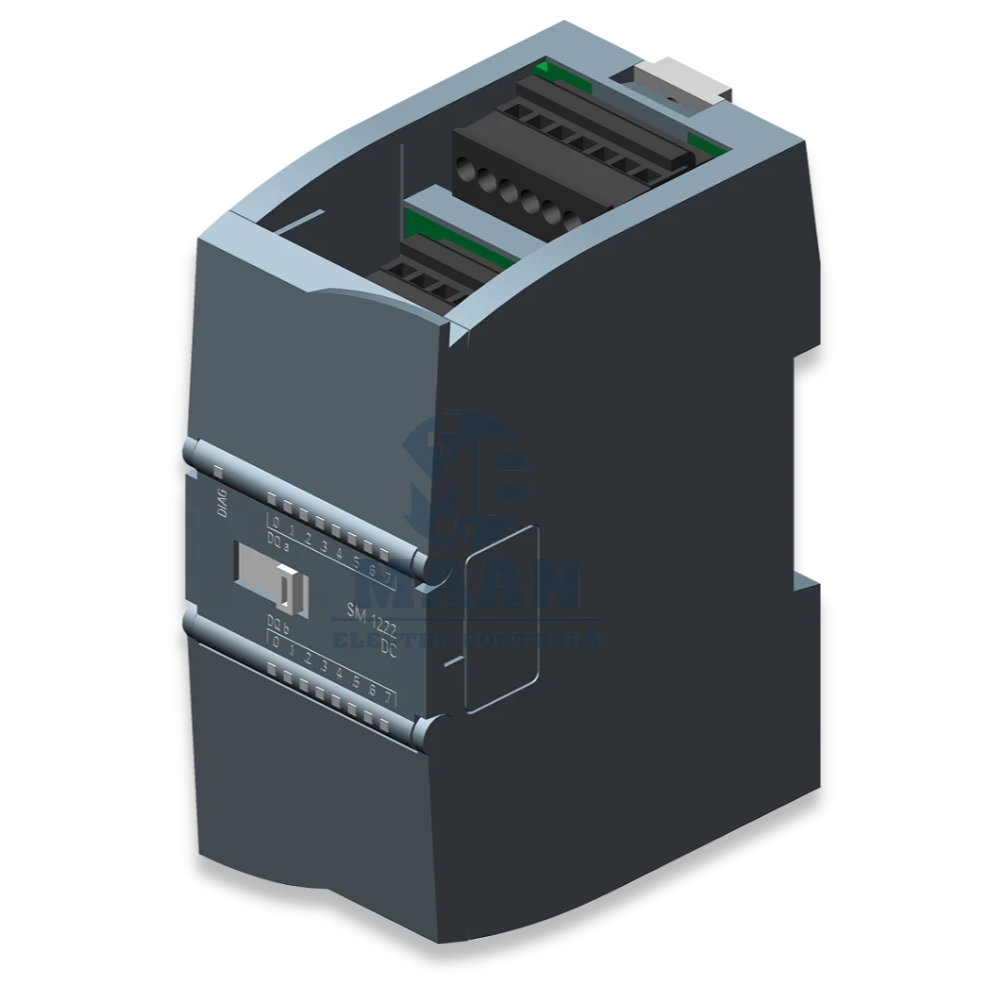

6ES7222-1BH32-0XB0
The Siemens 6ES7222-1BH32-0XB0 is a SIMATIC S7-1200 SM 1222 digital output module designed to expand the digital output capability of an S7-1200 PLC system. The module provides 16 digital transistor outputs, enabling the PLC to control multiple 24 V DC field devices and actuators.
With its compact modular design, the SM 1222 can be integrated into S7-1200 automation systems where additional output channels are required. The transistor-based outputs are suitable for reliable switching of industrial loads such as relays, contactors, solenoid valves, lamps and other 24 V DC devices.
PRODUCT SPECIFICATIONS
Manufacturer : Siemens
Product Family : SIMATIC S7-1200
Order Number : 6ES7222-1BH32-0XB0
Module Type : SM 1222
I/O Type : Digital Output
Number of Outputs : 16 DO
Output Voltage : 24 V DC
Output Type : Transistor
Output Current : 0.5 A
Application : PLC Digital Output Expansion
System : SIMATIC S7-1200
FEATURES
- 16 digital outputs for expanded PLC control
- 24 V DC transistor outputs
- 0.5 A output capability
- Designed for SIMATIC S7-1200
- Suitable for controlling multiple field devices
- Compact PLC expansion architecture
- Reliable electronic switching
- Suitable for industrial machine automation
- Supports flexible actuator control
- Ideal for control-panel integration
- Useful for OEM and machine-builder applications
BENEFITS
Expanded Output Capacity
Provides 16 additional digital output channels for S7-1200 automation systems.
Transistor Switching
The transistor output technology is suitable for fast and repetitive digital switching applications.
24 V DC Control
Designed for common industrial 24 V DC control architectures.
Compact Automation Design
The modular S7-1200 architecture allows additional I/O to be incorporated into compact control systems.
Flexible Machine Control
Multiple outputs can be assigned to different actuators, indicators and control devices according to the PLC program.
OEM-Friendly Solution
Suitable for machine builders, system integrators and control-panel manufacturers requiring additional S7-1200 output capacity.
