6ES7222-1BH32-0XB0

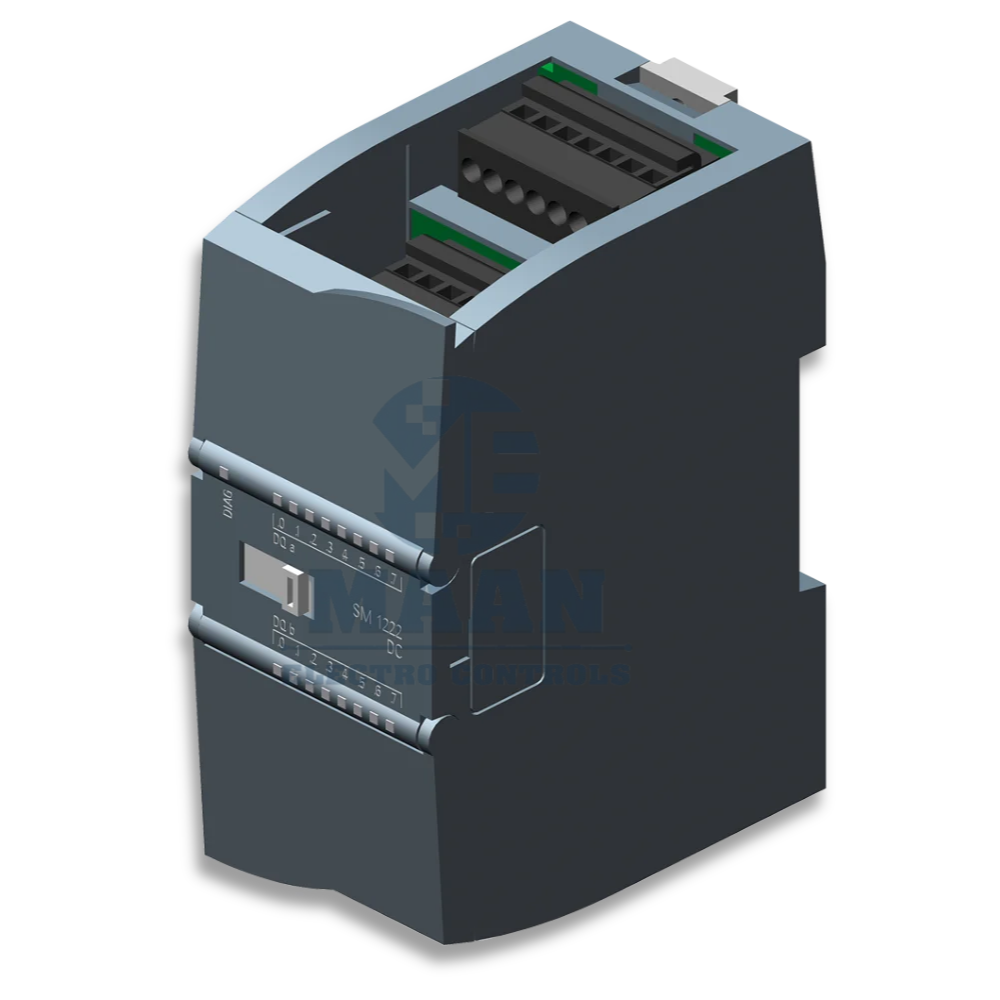

SIEMENS 6ES7222-1BH32-0XB0 – SM 1222 DIGITAL OUTPUT MODULE
Siemens 6ES7222-1BH32-0XB0 is a SIMATIC S7-1200 SM 1222 Digital Output Module featuring 16 digital outputs, 24 V DC transistor outputs, and 0.5 A output current per channel. It is designed to expand the output capability of SIMATIC S7-1200 PLC systems and provide reliable control of actuators and 24 V DC field devices.
PRODUCT DETAILS
- Product: SIMATIC S7-1200 SM 1222
- Order Number: 6ES7222-1BH32-0XB0
- Module Type: Digital Output Module
- Digital Outputs: 16 DO
- Output Voltage: 24 V DC
- Output Type: Transistor
- Output Current: 0.5 A per output
- Application: PLC-based machine and industrial automation
- System: Siemens SIMATIC S7-1200
BENEFITS
16 DIGITAL OUTPUTS
Provides 16 additional digital output channels for expanding an S7-1200 automation system.
24 V DC TRANSISTOR OUTPUTS
Designed for common industrial 24 V DC control applications.
0.5 A PER OUTPUT
Each output supports up to 0.5 A, subject to the applicable Siemens technical specifications and load conditions.
PLC SYSTEM EXPANSION
Useful when the integrated outputs of an S7-1200 CPU are not sufficient for the required machine I/O.
COMPACT AUTOMATION ARCHITECTURE
Suitable for control cabinets where additional I/O functionality is required without changing the complete PLC platform.
FEATURES
- 16 digital transistor outputs for controlling field devices
- 24 V DC output operation
- Up to 0.5 A output current per channel
- Suitable for switching solenoid valves, contactors, relays, indicator lamps and other 24 V DC loads
- Compact expansion module for S7-1200 controllers
- Supports flexible machine I/O expansion
- Suitable for automated production and process-control applications
