6ES7223-1BH32-0XB0

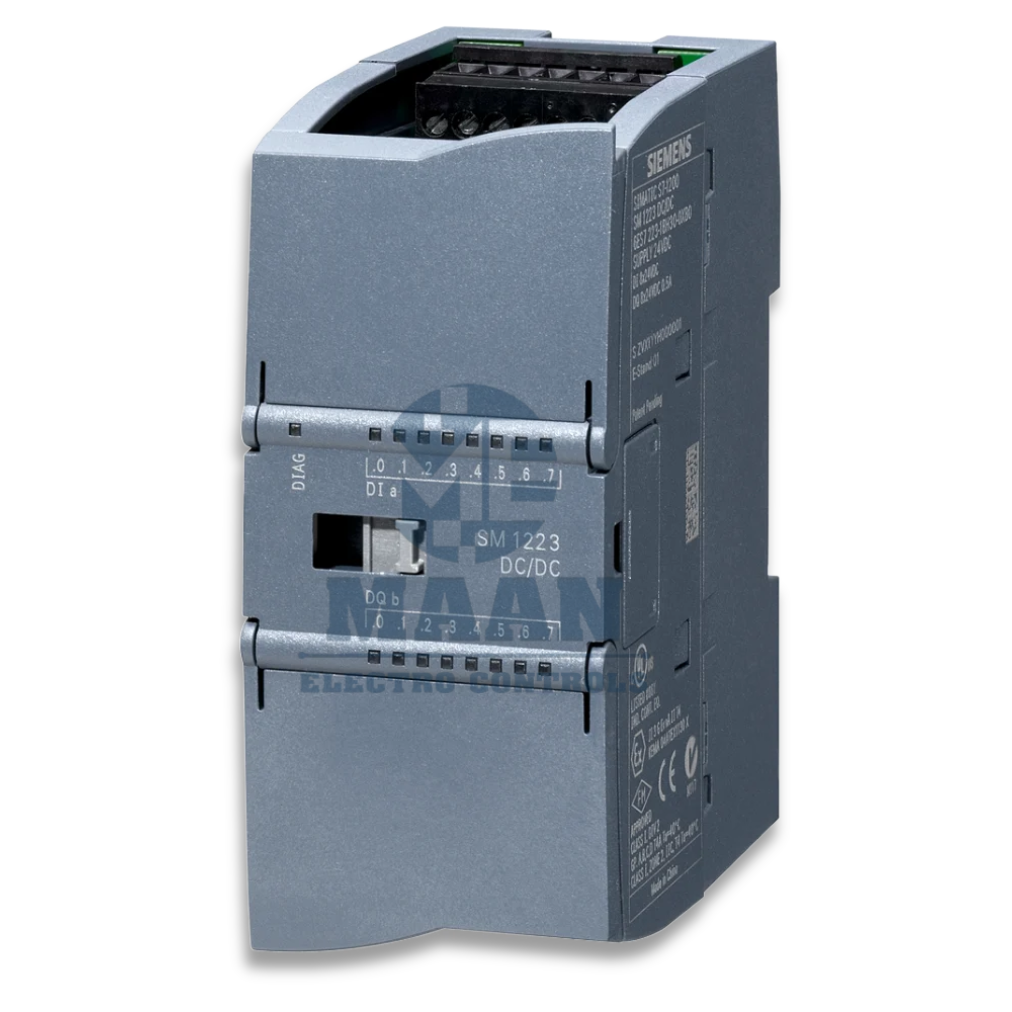

Siemens SIMATIC S7-1200 SM 1223 – 6ES7223-1BH32-0XB0
6ES7223-1BH32-0XB0 is a SIMATIC S7-1200 SM 1223 Digital I/O module designed to expand the onboard I/O capacity of S7-1200 PLC systems. It provides 8 digital inputs and 8 digital transistor outputs, making it suitable for machine automation, control panels, material handling, packaging, and general industrial control applications.
PRODUCT DETAILS
- Product: SIMATIC S7-1200 SM 1223 Digital I/O Module
- Order Number: 6ES7223-1BH32-0XB0
- Module Type: SM 1223
- Digital Inputs: 8 DI
- Input Voltage: 24 V DC
- Input Type: Sink/Source
- Digital Outputs: 8 DO
- Output Type: Transistor
- Output Current: 0.5 A per output
- Application: Digital signal expansion for S7-1200 PLC
- Series: SIMATIC S7-1200
- Installation: Modular expansion alongside compatible S7-1200 CPUs
FEATURES
- 16 digital I/O points in a compact expansion module
- 8 × 24 V DC digital inputs
- Flexible sink/source input configuration
- 8 transistor digital outputs
- Up to 0.5 A output current per channel
- Designed for SIMATIC S7-1200 PLC systems
- Useful for increasing PLC I/O capacity without changing the CPU
- Suitable for compact and distributed machine-control architectures
- Supports integration of additional field sensors and actuators
BENEFITS
1. Increased I/O Capacity
Adds 8 digital inputs and 8 digital outputs to a compatible S7-1200 automation system.
2. Flexible Field Connectivity
24 V DC digital inputs allow connection of commonly used industrial sensors and switching devices.
3. Transistor Output Technology
The 0.5 A transistor outputs are appropriate for fast and repetitive switching tasks.
4. Compact Expansion
Provides 16 digital I/O points in a dedicated expansion module, helping optimize control-panel space.
5. Suitable for Machine Builders
Useful for OEMs and system integrators requiring additional digital I/O without replacing the existing S7-1200 CPU.
6. Siemens Automation Integration
Can form part of an integrated Siemens automation solution together with S7-1200 CPUs, signal modules, HMIs, drives and industrial communication components.
