6ES7223-1BH32-0XB0

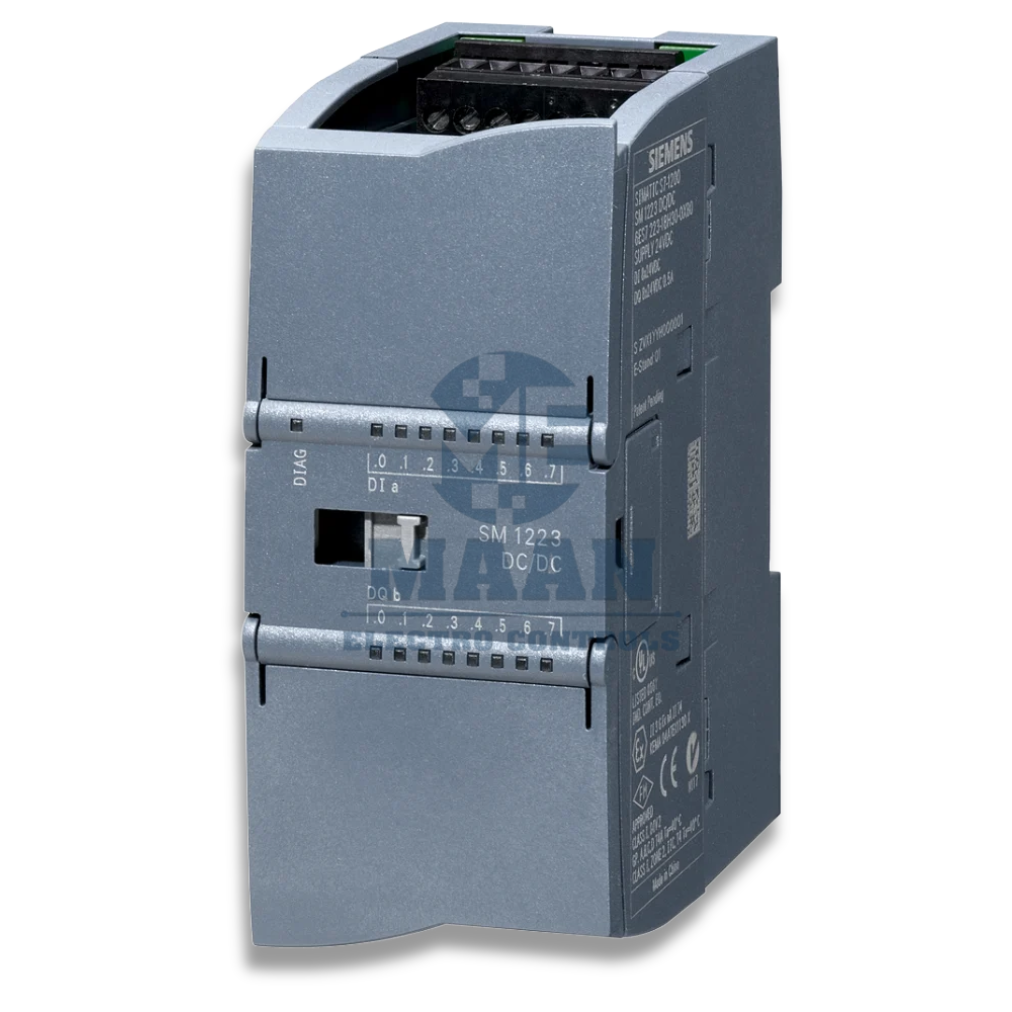

Siemens 6ES7223-1BH32-0XB0 – SIMATIC S7-1200 SM 1223 Digital I/O Module
The 6ES7223-1BH32-0XB0 is a Siemens SIMATIC S7-1200 SM 1223 Digital I/O module designed to expand the digital input and output capability of S7-1200 PLC systems. It provides 8 digital inputs and 8 digital transistor outputs, making it suitable for machine automation, control panels, and industrial control applications.
PRODUCT DETAILS
· Product: SIMATIC S7-1200 Digital I/O SM 1223
· Article Number: 6ES7223-1BH32-0XB0
· Digital Inputs: 8 DI
· Input Voltage: 24 V DC
· Input Type: Sink/Source
· Digital Outputs: 8 DO
· Output Type: Transistor
· Output Current: 0.5 A
· Product Family: SIMATIC S7-1200
· Module Type: Digital I/O Expansion Module
FEATURES
· 8 digital inputs for 24 V DC signals
· 8 digital transistor outputs
· Supports sink/source input configuration
· 0.5 A transistor output capability
· Designed for S7-1200 PLC expansion
· Suitable for compact machine-control applications
· Easy integration into Siemens automation systems
· Useful for controlling sensors, actuators, relays and other digital devices
BENEFITS
· Flexible I/O Expansion: Adds 8 digital inputs and 8 digital outputs to an S7-1200 system.
· Reliable Switching: Transistor outputs support fast and reliable digital switching.
· 24 V DC Compatibility: Designed for common industrial digital control signals.
· Compact Automation Solution: Suitable for space-conscious control panels.
· Easy PLC Integration: Works as an expansion module within the SIMATIC S7-1200 platform.
SIEMENS AUTOMATION INTEGRATION
The 6ES7223-1BH32-0XB0 SM 1223 can be integrated into an S7-1200-based automation system alongside Siemens PLCs, HMIs, drives, communication modules and other SIMATIC components. It is particularly useful when the CPU's onboard digital I/O needs to be expanded for additional field devices.
