6ES7223-1BH32-0XB0

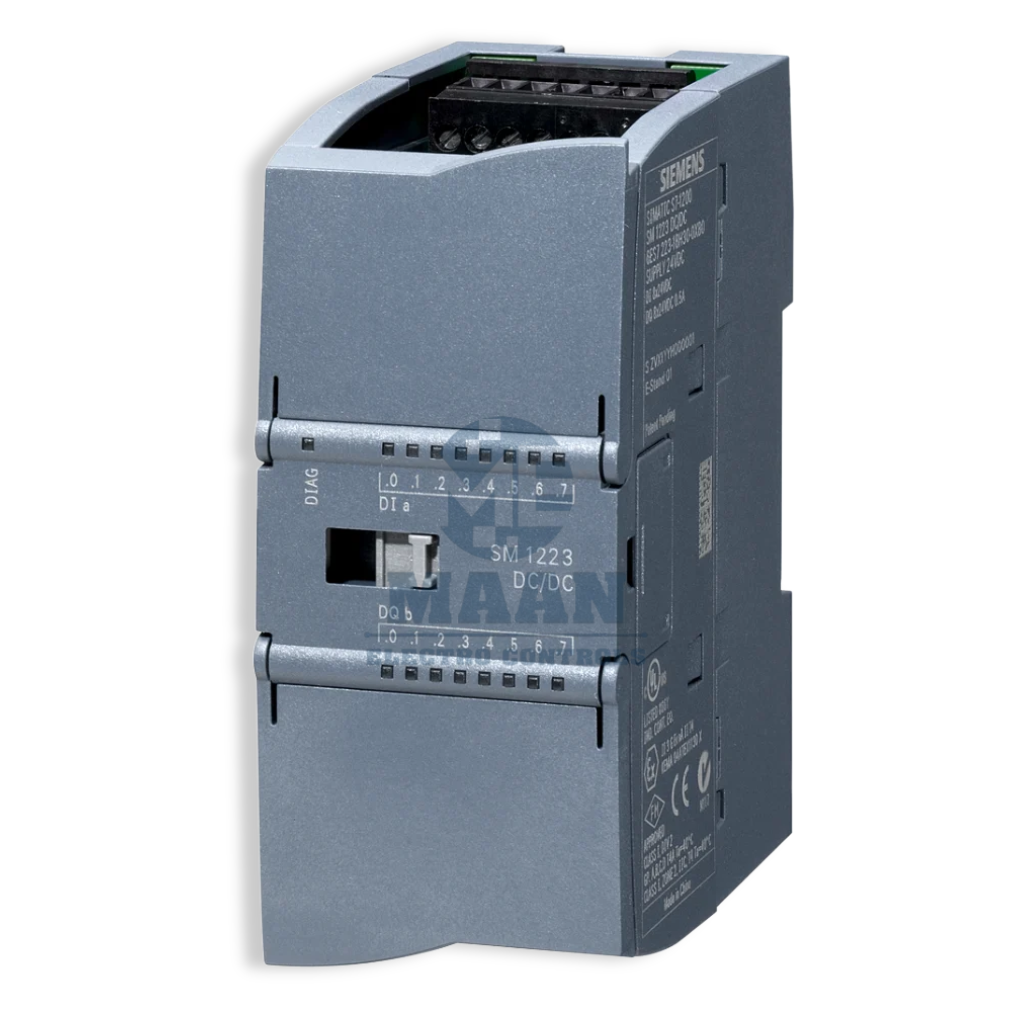

Siemens 6ES7223-1BH32-0XB0 — SIMATIC S7-1200 SM 1223
The 6ES7223-1BH32-0XB0 is a Siemens SIMATIC S7-1200 SM 1223 Digital I/O Module designed to expand the digital I/O capability of S7-1200 PLC systems. It provides 8 digital inputs and 8 digital transistor outputs, making it suitable for machine automation, control panels, conveyor systems, material handling and general industrial automation.
PRODUCT SPECIFICATIONS
Product : SIMATIC S7-1200 SM 1223
Article Number : 6ES7223-1BH32-0XB0
Module Type : Digital I/O Expansion Module
Digital Inputs : 8 DI
Input Voltage : 24 V DC
Input Type : Sink/Source
Digital Outputs : 8 DO
Output Type : Transistor
Output Current : 0.5 A per output
PLC Family : SIMATIC S7-1200
Application : Digital signal monitoring and switching
Installation : S7-1200 modular PLC system
FEATURES
· 8 digital inputs + 8 digital outputs
· 24 V DC digital input interface
· Transistor outputs rated up to 0.5 A
· Suitable for both sinking and sourcing input applications
· Expands the onboard I/O of compatible S7-1200 CPUs
· Useful for sensors, push buttons, switches, relays, solenoids and other digital field devices
· Designed for compact industrial control panels
· Supports flexible machine-control architectures
· Suitable for OEM machines and automation projects
BENEFITS
More I/O in a Compact PLC System
Adds 16 digital channels to an S7-1200 automation system without replacing the existing CPU.
Fast Digital Signal Handling
Transistor outputs provide an effective interface for switching compatible DC loads and control signals.
Flexible Field Connectivity
The 8 DI channels can be used to receive signals from switches, proximity sensors, limit switches and other 24 V DC devices.
Efficient Panel Integration
The compact SM 1223 design is well suited to space-conscious control cabinets and machine panels.
Easy S7-1200 Expansion
Ideal when the CPU's onboard digital I/O is insufficient for the machine's additional sensors and actuators.
