6ES7223-1BH32-0XB0

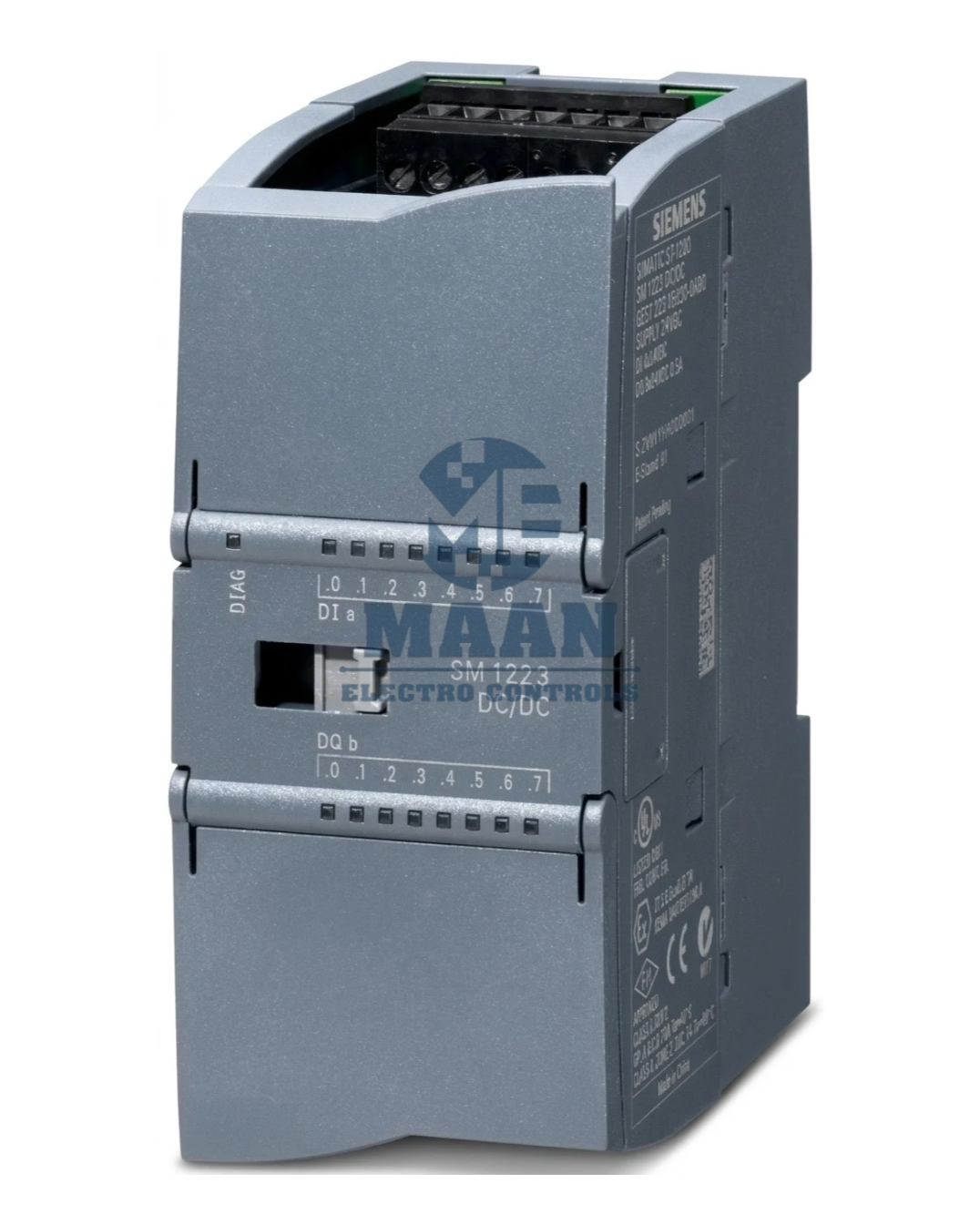

The Siemens SIMATIC S7-1200 SM 1223 Digital I/O Module – 6ES7223-1BH32-0XB0 is a compact expansion module designed to extend the digital input and output capabilities of S7-1200 PLC systems. It provides 8 digital inputs and 8 digital transistor outputs, supporting 24 V DC signal processing for reliable machine control and automation tasks.
With sink/source-compatible digital inputs and 0.5 A transistor outputs, the module enables efficient connection of sensors, switches, actuators, relays, contactors, and other field devices. Its compact design makes it suitable for machine automation, control panels, production equipment, and OEM applications where additional digital I/O is required.
PRODUCT SPECIFICATIONS
· Product: SIMATIC S7-1200 Digital I/O Module SM 1223
· Order Number: 6ES7223-1BH32-0XB0
· Digital Inputs: 8 DI
· Input Voltage: 24 V DC
· Input Type: Sink/Source
· Digital Outputs: 8 DO
· Output Type: Transistor
· Output Current: 0.5 A
· System: Siemens SIMATIC S7-1200
· Application: Digital signal expansion and machine control
ENGINEERED FOR FLEXIBLE INDUSTRIAL AUTOMATION
The SM 1223 8DI/8DO module provides additional digital I/O capacity for S7-1200 PLC applications, allowing automation engineers to integrate more field devices without replacing the main CPU. It is suitable for machine builders, OEMs, panel manufacturers, system integrators, and industrial automation projects requiring dependable 24 V DC digital signal handling.
BENEFITS
· Expands the digital I/O capacity of S7-1200 PLC systems
· Provides 8 digital inputs and 8 transistor outputs
· Supports 24 V DC industrial control signals
· Sink/source input configuration offers flexible field-device integration
· 0.5 A transistor outputs support fast digital switching applications
· Suitable for sensors, switches, actuators, and control devices
· Compact solution for space-conscious control panels
· Simplifies machine automation and control-system expansion
· Ideal for OEM machines and customized automation systems
· Supports reliable integration into Siemens S7-1200 control architectures
