6ES7223-1BH32-0XB0 IN SURAT

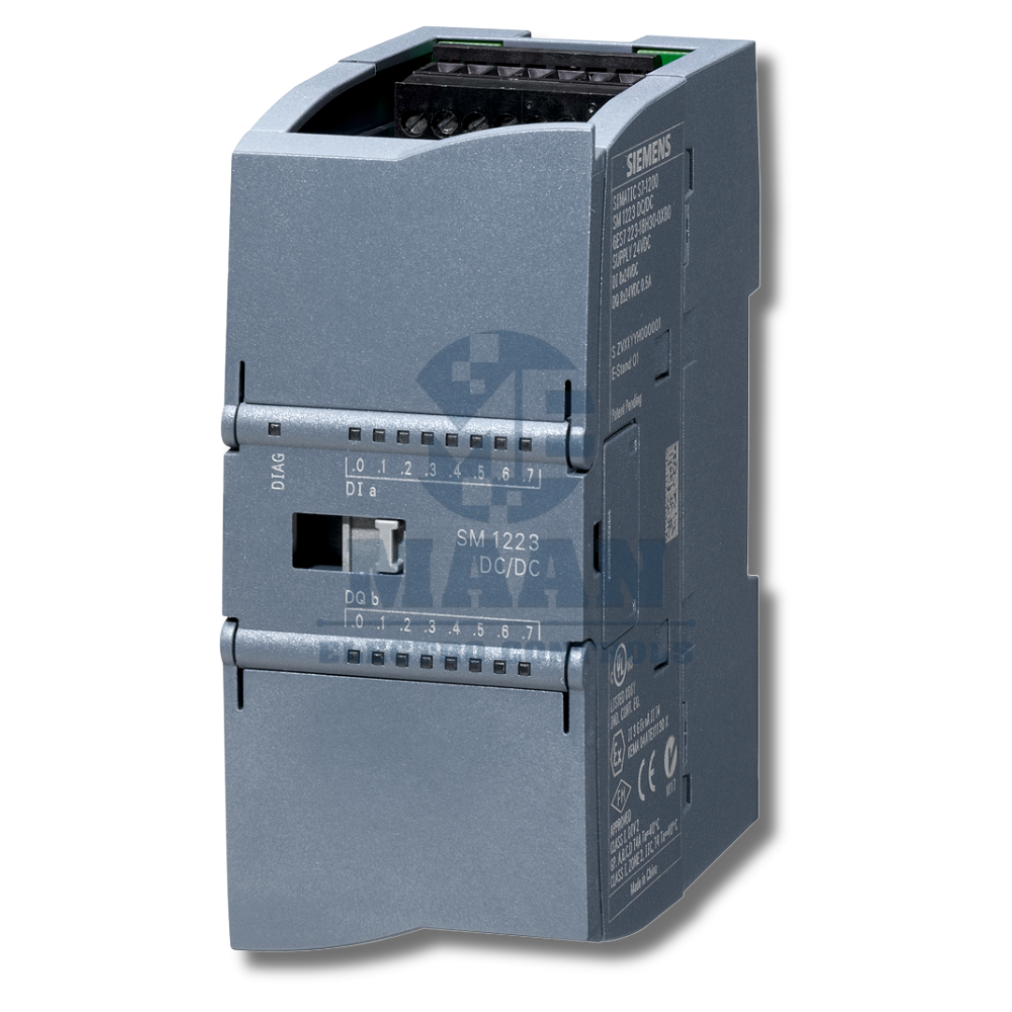

Siemens SIMATIC S7-1200 SM 1223 Digital I/O Module – 6ES7223-1BH32-0XB0
The Siemens SM 1223 – 6ES7223-1BH32-0XB0 is a digital input/output module for expanding the I/O capacity of compatible SIMATIC S7-1200 PLC systems. It combines 8 digital inputs at 24 V DC with 8 transistor outputs rated at 0.5 A, providing additional connections for machine signals and output devices.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Module Model: SM 1223
· Order Number: 6ES7223-1BH32-0XB0
· Module Type: Digital Input/Output Module
· I/O Configuration: 8 DI / 8 DO
· Digital Inputs: 8, 24 V DC
· Input Compatibility: Sink/Source
· Digital Outputs: 8 transistor outputs
· Output Current Rating: 0.5 A
DIGITAL I/O EXPANSION
· Eight Additional Inputs: Connect compatible sensors, switches, and machine-status signals to the PLC system.
· Sink/Source Input Support: Accommodates compatible devices using either input wiring arrangement.
· Eight Transistor Outputs: Provide electronic switching for suitable output loads within the specified current rating.
· Combined Input and Output Module: Adds both signal monitoring and output control through one SM 1223 module.
TYPICAL MACHINE CONNECTIONS
· Position Detection: Receive signals from compatible proximity sensors and limit switches.
· Operator Commands: Monitor suitable pushbuttons and selector switches.
· Status Indication: Switch compatible indicator lamps within the output rating.
· Device Activation: Control suitable relay coils or other compatible loads, with appropriate protection.
· Sequence Expansion: Add input conditions and output actions to the PLC’s programmed machine sequence.
