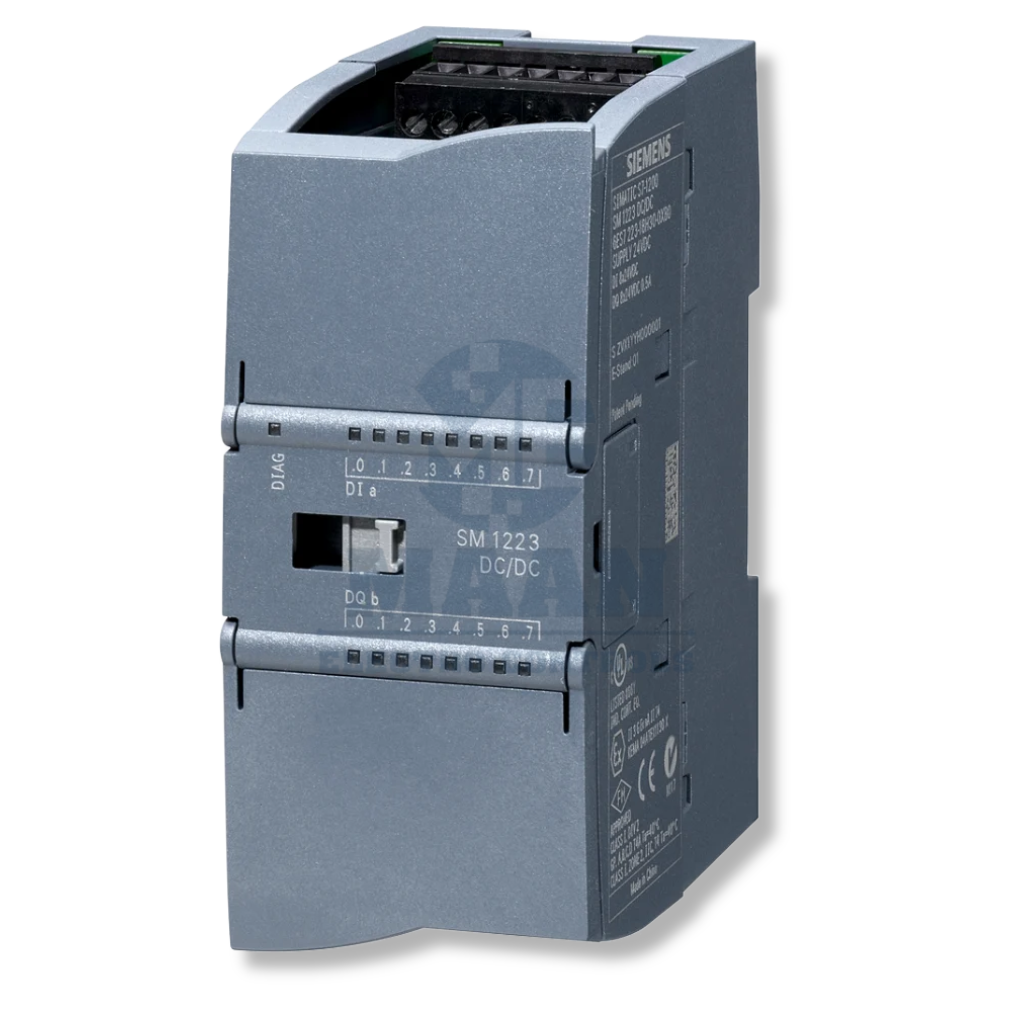

Siemens SIMATIC S7-1200 SM 1223 Digital I/O Module – 6ES7223-1BH32-0XB0
The Siemens SIMATIC S7-1200 SM 1223 Digital I/O Module – 6ES7223-1BH32-0XB0 is a compact digital signal module designed to expand the I/O capacity of SIMATIC S7-1200 PLC systems. The SM 1223 provides 8 digital inputs and 8 digital outputs, making it suitable for machine automation, control panels, OEM machinery, production equipment, and industrial control applications.
This Siemens digital I/O module features 8 DI at 24 V DC with sink/source functionality and 8 transistor digital outputs rated at 0.5 A. It provides a practical solution for connecting additional field sensors, switches, actuators, relays, indicators, valves, and other digital devices to an S7-1200 automation system.
The 6ES7223-1BH32-0XB0 is designed for integration with the SIMATIC S7-1200 PLC family, helping machine builders and system integrators expand controller I/O while maintaining a compact and organized automation architecture.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Module Type: Digital I/O Signal Module
· Module: SM 1223
· Order Number: 6ES7223-1BH32-0XB0
· Digital Inputs: 8 DI
· Digital Input Voltage: 24 V DC
· Input Type: Sink/Source
· Digital Outputs: 8 DO
· Output Type: Transistor
· Output Rating: 0.5 A
· I/O Configuration: 8 DI / 8 DO
· Application: PLC I/O Expansion & Industrial Automation
TECHNICAL FEATURES
1. SIMATIC S7-1200 SM 1223
The SM 1223 is designed as a digital signal expansion module for S7-1200 PLC systems, providing additional digital I/O for automation applications.
2. 8 Digital Inputs
The module provides 8 digital inputs at 24 V DC, allowing connection of field devices such as proximity sensors, photoelectric sensors, push buttons, limit switches, selector switches, and machine status signals.
3. Sink/Source Input Functionality
The sink/source input configuration provides flexibility when interfacing the module with different types of 24 V DC field devices and machine wiring architectures.
4. 8 Digital Transistor Outputs
The module includes 8 digital outputs using transistor technology, suitable for switching compatible DC loads and controlling automation devices.
5. 0.5 A Output Rating
Each digital output provides a 0.5 A rating, supporting suitable 24 V DC control loads used in machine automation and industrial control applications.
6. Balanced I/O Expansion
With 8 DI and 8 DO, the module provides a balanced combination of inputs and outputs for machines requiring additional sensor and actuator connections.
7. S7-1200 Integration
The 6ES7223-1BH32-0XB0 can be integrated into Siemens S7-1200 automation architectures to expand the available digital I/O of the PLC system.
