6ES7223-1BH32-0XB0

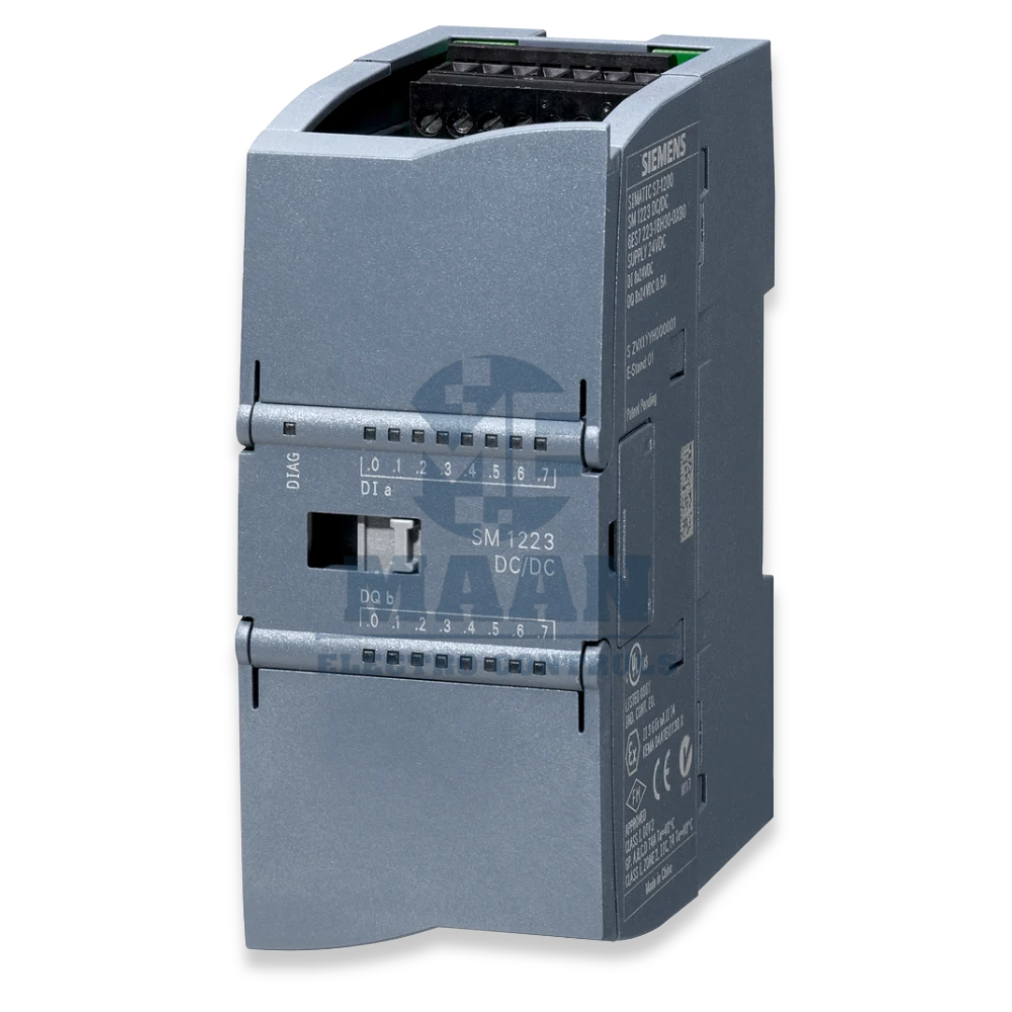

6ES7223-1BH32-0XB0 is a SIMATIC S7-1200 SM 1223 Digital I/O module designed to expand the digital input and output capacity of an S7-1200 PLC system. It combines 8 digital inputs and 8 digital transistor outputs in a compact module, making it suitable for machine control, automation panels, and industrial control applications.
The Siemens SM 1223 6ES7223-1BH32-0XB0 provides 8 × 24 V DC digital inputs with sink/source capability and 8 × 24 V DC transistor outputs rated at 0.5 A. The combined DI/DO configuration allows one module to handle both field-device signal acquisition and actuator control.
It can be used with SIMATIC S7-1200 CPUs to increase available digital I/O points without requiring separate input and output modules.
Product Highlights
- 8 Digital Inputs + 8 Digital Outputs
- 24 V DC input signals
- Sink/source-compatible digital inputs
- 24 V DC transistor outputs
- 0.5 A output current
- Mixed I/O arrangement for compact control architectures
- Designed for SIMATIC S7-1200 PLC systems
- Suitable for machine and process automation
- Helps expand field connectivity without changing the main CPU
Features
· 16 digital I/O points in a single compact module
· 8 digital inputs for 24 V DC field signals
· 8 transistor outputs for fast switching applications
· 0.5 A output capability for controlling suitable DC loads
· Sink/source input configuration for flexible field-device wiring
· Expands the onboard I/O capability of S7-1200 CPUs
· Suitable for sensors, switches, relays, contactors, solenoid valves and other compatible 24 V DC devices
· Compact design helps optimize PLC control-panel space
· Designed for integration within the SIMATIC S7-1200 automation platform
Benefits
1. Combined DI/DO Configuration
Eight inputs and eight outputs provide a balanced I/O arrangement for machines requiring both signal monitoring and actuator control.
2. Simplified Panel Design
Combining inputs and outputs in one module can reduce the number of separate expansion modules required.
3. Flexible Input Wiring
The 24 V DC sink/source input capability supports different field-device connection arrangements.
4. Transistor Output Switching
The transistor outputs are suitable for fast and repetitive switching of compatible 24 V DC loads.
5. Easy S7-1200 Expansion
The module provides additional digital I/O capacity while maintaining the Siemens S7-1200 modular automation architecture.
