6ES7223-1BL32-0XB0
Siemens 6ES7223-1BL32-0XB0

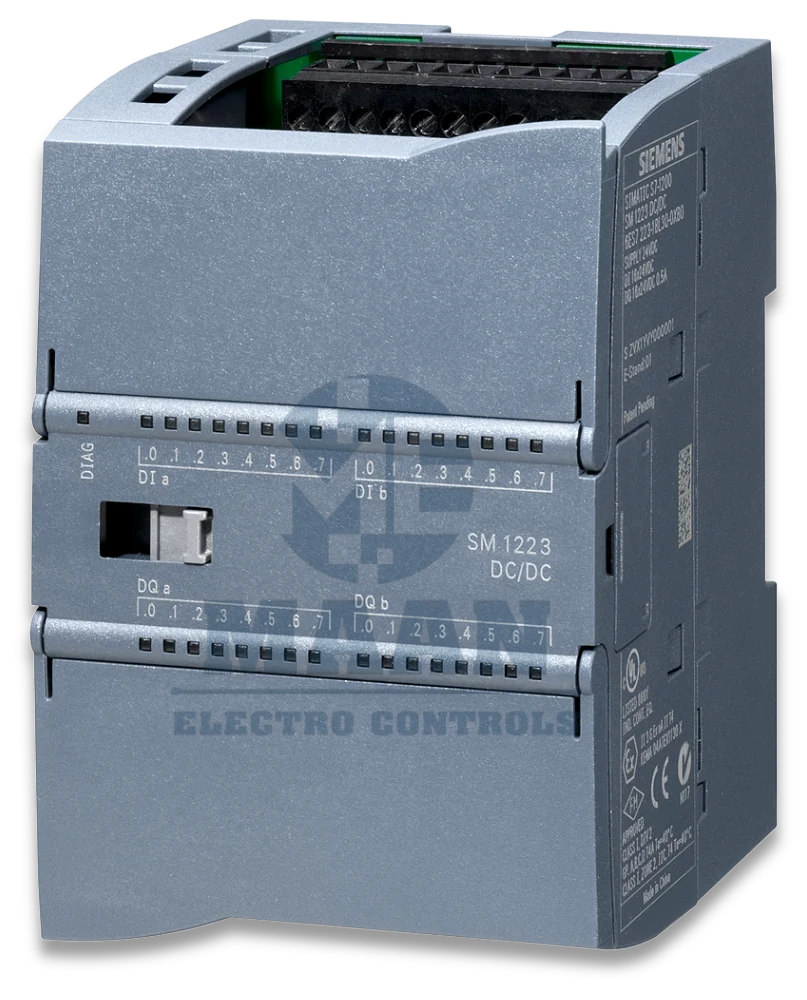

Siemens 6ES7223-1BL32-0XB0 is a SIMATIC S7-1200 SM 1223 Digital I/O expansion module designed to increase the digital I/O capacity of S7-1200 PLC-based automation systems. It combines 16 digital inputs and 16 digital outputs, providing a total of 32 digital signal channels in one module.
The module features 16 digital inputs rated for 24 V DC with sink/source capability, enabling connection of a wide range of industrial switching and sensing devices. Its 16 transistor digital outputs, rated at 0.5 A, are designed for controlling suitable DC loads and machine-actuation signals.
The SM 1223 is well suited for industrial machinery, automated production lines, conveyor systems, packaging equipment, assembly machines, material-handling systems and electrical control panels where additional digital signal capacity is required.
Its modular design allows machine builders, OEMs, panel manufacturers and system integrators to expand an existing SIMATIC S7-1200 PLC architecture while maintaining a compact and organized control-panel configuration.
Product Highlights
· Article Number: 6ES7223-1BL32-0XB0
· Product: SIMATIC S7-1200 SM 1223
· Digital Inputs: 16 DI
· Input Voltage: 24 V DC
· Input Configuration: Sink/Source
· Digital Outputs: 16 DO
· Output Type: Transistor
· Output Current: 0.5 A
· Total Digital Channels: 32
· Primary Function: S7-1200 digital I/O expansion
· Suitable For: Industrial automation and machine control
BENEFITS OF 6ES7223-1BL32-0XB0
- 16 digital inputs + 16 digital outputs
- Provides 32 digital I/O channels
- 24 V DC digital input operation
- Sink/source input configuration
- 16 transistor-based digital outputs
- 0.5 A output rating
- Suitable for modular S7-1200 PLC architectures
- Helps expand machine-control capabilities
- Suitable for sensor and actuator interfacing
- Useful for compact automation panels
- Supports OEM machine-building applications
- Practical for system integrators and panel builders
- Helps accommodate higher digital I/O requirements
