6ES7223-1BL32-0XB0
SIEMENS SIMATIC S7-1200 SM 1223 – 6ES7223-1BL32-0XB0

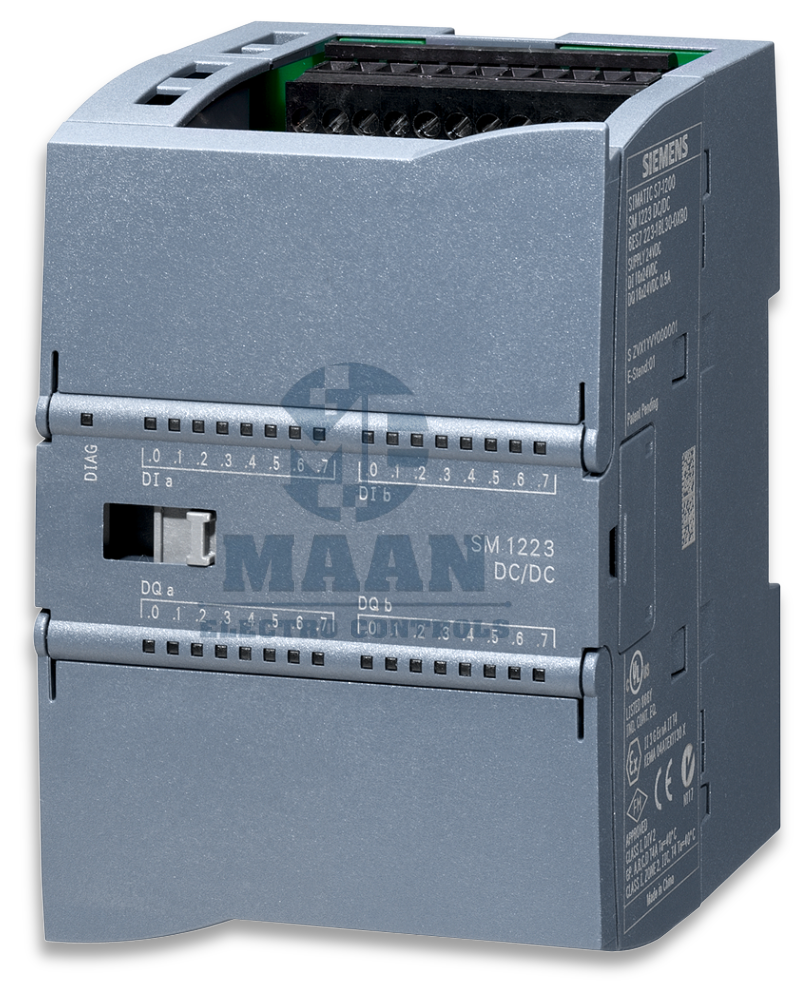

6ES7223-1BL32-0XB0 is a SIMATIC S7-1200 SM 1223 Digital I/O Module designed to expand the onboard I/O capability of S7-1200 PLC systems. It provides 16 digital inputs and 16 digital transistor outputs, making it suitable for machine automation, control panels, material handling, packaging, and general industrial control applications.
PRODUCT DETAILS
- Manufacturer: Siemens
- Product Family: SIMATIC S7-1200
- Module: SM 1223 Digital I/O
- Order Number: 6ES7223-1BL32-0XB0
- I/O Configuration: 16 DI / 16 DO
- Digital Inputs: 16 × 24 V DC
- Input Type: Sink/Source
- Digital Outputs: 16 × transistor
- Output Current: 0.5 A per output
- Application: Digital signal expansion for S7-1200 PLCs
- Mounting: Suitable for S7-1200 system installation
BENEFITS
1. High I/O Density
Provides 32 digital channels in a single expansion module, helping increase the I/O capacity of a compact S7-1200 control system.
2. Flexible Input Configuration
The 16 digital inputs support sink/source signal arrangements for greater wiring flexibility.
3. Transistor Outputs
Transistor outputs are well suited to frequent switching operations and fast machine-control sequences.
4. 24 V DC Industrial Control
Designed around the commonly used 24 V DC control voltage found in industrial automation panels.
5. Easy S7-1200 Expansion
Provides additional digital I/O for applications where the PLC's onboard I/O is insufficient.
6. Suitable for Machine Automation
Useful for applications requiring numerous sensor inputs and actuator outputs within one PLC system.
APPLICATIONS
- Packaging machines
- Conveyor systems
- Assembly machines
- Material handling equipment
- Printing machinery
- Textile machinery
- Pump control panels
- Process-control systems
- Machine-tool automation
- Industrial production lines
- Automatic testing equipment
- OEM machine control panels
