6ES7223-1BL32-0XB0

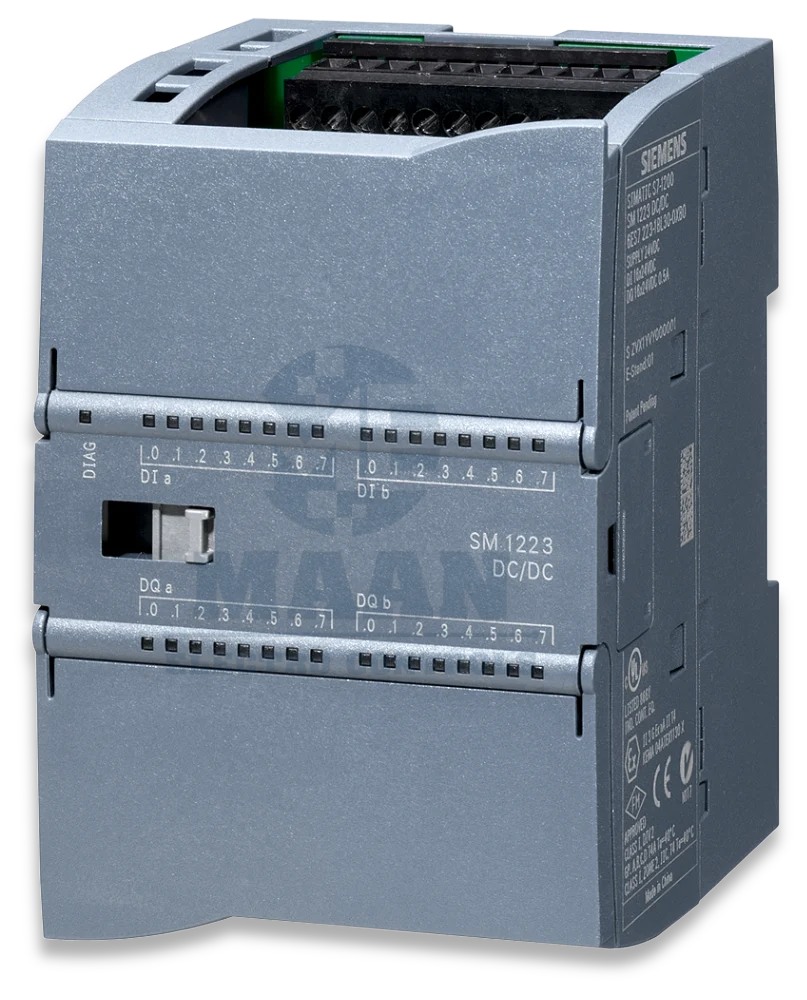

6ES7223-1BL32-0XB0 is a SIMATIC S7-1200 SM 1223 Digital I/O module designed to expand the digital input and output capacity of S7-1200 PLC systems. It provides 16 digital inputs and 16 transistor digital outputs, making it suitable for machine automation, control panels, production equipment, and distributed control applications.
The SM 1223 16DI/16DO module offers 16 × 24 V DC digital inputs with Sink/Source capability and 16 transistor outputs rated at 0.5 A. It allows additional field devices such as push buttons, proximity sensors, limit switches, contactors, relays, solenoid valves, indicator lamps, and other 24 V DC devices to be integrated into an S7-1200 control system.
Technical Points
· Product: SIMATIC S7-1200 SM 1223
· Article Number: 6ES7223-1BL32-0XB0
· Module Type: Digital I/O expansion module
· Digital Inputs: 16 DI
· Input Voltage: 24 V DC
· Input Logic: Sink/Source
· Digital Outputs: 16 DO
· Output Type: Transistor
· Output Current: 0.5 A per output
· Application: S7-1200 PLC digital I/O expansion
· Suitable for: Machine automation, control panels, material handling and industrial equipment
Benefits
1. Increased I/O Capacity
Adds 32 digital I/O points to an S7-1200 automation system, reducing the need to replace the CPU when additional field signals are required.
2. Flexible 24 V DC Inputs
The 16 digital inputs support common 24 V DC industrial sensors and switching devices.
3. Transistor Outputs
The 16 transistor outputs provide fast switching for suitable DC loads and automation actuators.
4. Sink/Source Input Compatibility
The input configuration provides flexibility when connecting different types of industrial field devices.
5. Ideal for Machine Building
Well suited for machines requiring multiple sensor and actuator connections within a compact PLC control architecture.
6. Easy S7-1200 Integration
Designed as an expansion module for the SIMATIC S7-1200 family, supporting straightforward integration into PLC-based control systems.
Siemens Automation Integration
· SIMATIC S7-1200 CPUs
· SM 1221 digital input modules
· SM 1222 digital output modules
· Other SM 1223 combination I/O modules
· SIMATIC HMI panels
· SINAMICS V20/V90 drives
· PROFINET-based automation components
· Siemens SCALANCE industrial networking products
