6ES7241-1CH30-1XB0

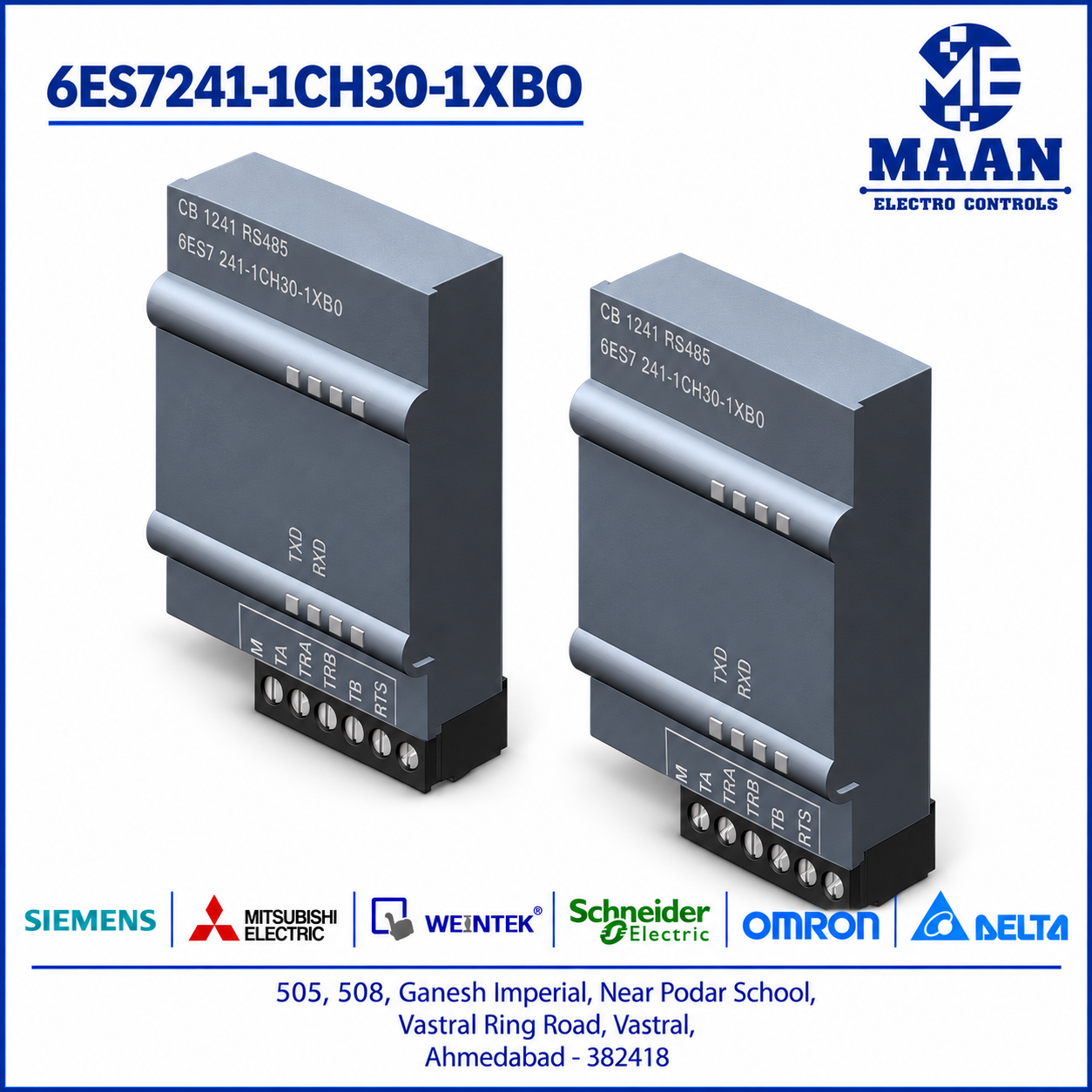

Siemens SIMATIC S7-1200 CB 1241 RS485 Communication Board – 6ES7241-1CH30-1XB0
The Siemens CB 1241 – 6ES7241-1CH30-1XB0 adds an RS485 serial communication interface to a compatible SIMATIC S7-1200 CPU. Featuring a terminal-block connection and Freeport support, it enables programmed serial data exchange with compatible external equipment.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Board Model: CB 1241
· Order Number: 6ES7241-1CH30-1XB0
· Product Type: Communication Board
· Communication Interface: RS485
· Connection Type: Terminal block
· Supported Communication Mode: Freeport
FEATURES
· RS485 Interface: Provides a serial connection for compatible devices.
· Freeport Support: Allows programmed handling of transmitted and received messages according to the application’s communication requirements.
· Terminal-Block Wiring: Provides terminals for connecting the serial communication cable.
· CPU Board Integration: Adds communication capability through the compatible CPU’s communication-board interface.
BENEFITS
· Adds RS485 connectivity to a compatible S7-1200 installation.
· Supports communication with equipment requiring programmed serial messages.
· Provides a terminal-block option for field-cable connections.
· Allows serial data exchange to form part of the machine’s control program.
INTEGRATION REQUIREMENTS
· Confirm that the connected device’s electrical interface and message format are compatible.
· Match communication settings between the PLC application and external equipment.
· Configure Freeport message handling for the required commands and responses.
· Follow the equipment instructions for RS485 wiring and termination.
