6ES7288-1ST30-0AA1

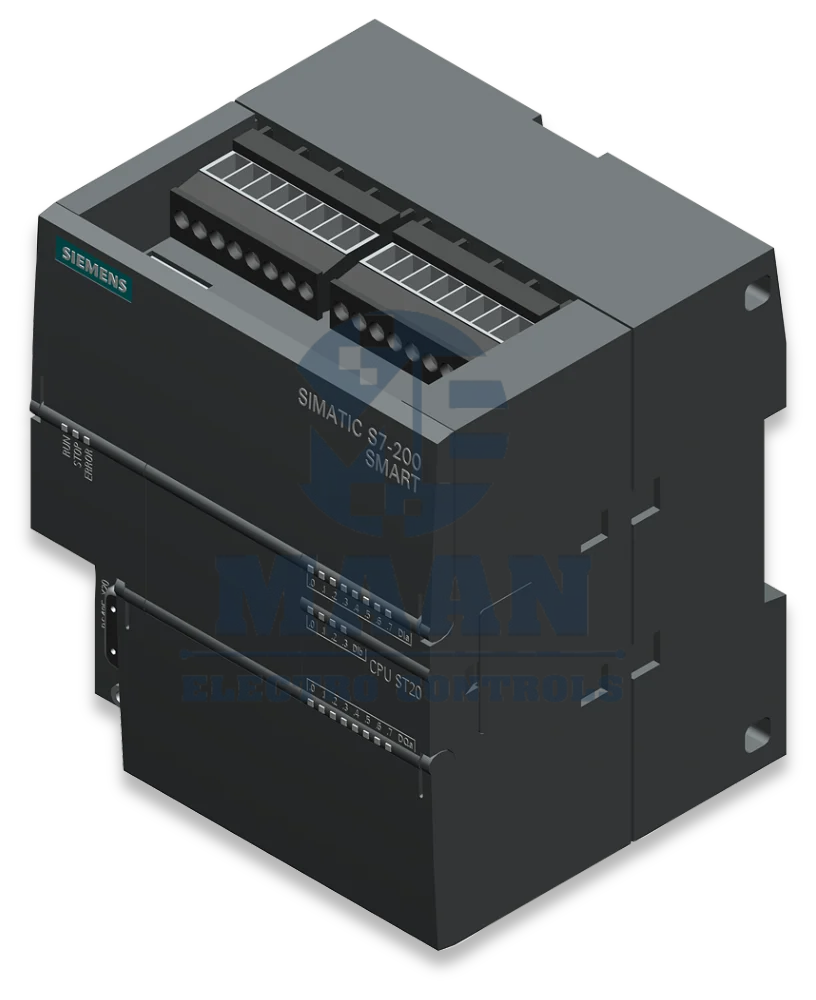

6ES7288-1ST30-0AA1 – SIMATIC S7-200 SMART CPU ST30
The Siemens SIMATIC S7-200 SMART CPU ST30 (6ES7288-1ST30-0AA1) is a compact DC/DC/DC standard PLC designed for machine control, sequencing, monitoring and small-to-medium industrial automation applications. It combines the CPU, digital I/O and control functions in one compact unit, making it suitable for control panels where space and straightforward I/O integration are important. Siemens specifies 18 digital inputs and 12 digital outputs, with support for expansion modules and a signal board.
PRODUCT DETAILS
· Product Family: SIMATIC S7-200 SMART
· CPU Model: CPU ST30
· Article Number: 6ES7288-1ST30-0AA1
· CPU Type: Standard CPU
· Power Configuration: DC/DC/DC
· Digital Inputs: 18 × 24 V DC
· Digital Outputs: 12 × 24 V DC
· Program Memory: 18 KB
· User Data Memory: 12 KB
· Retentive Memory: Up to 10 KB
· Supply Voltage: 20.4–28.8 V DC
· Expansion Capability: Up to 6 expansion modules
· Signal Board: 1 maximum
· Dimensions: 110 × 100 × 81 mm
· Weight: Approximately 375 g
· Power Dissipation: Approximately 12 W
DIGITAL INPUT CONTROL
The 18 integrated digital inputs provide the interface between field sensors and the PLC program.
· Proximity sensors
· Photoelectric sensors
· Limit switches
· Push buttons
· Selector switches
· Emergency/control-status signals
· Machine position sensors
DIGITAL OUTPUT CONTROL
The 12 integrated digital outputs allow the PLC to issue ON/OFF control commands to connected field equipment.
· Solenoid valve control
· Contactor control through suitable interfaces
· Indicator lamps
· Machine actuators
· Relay interface circuits
· Pneumatic control signals
· Motor starter control signals
APPLICATIONS
· Packaging machines
· Conveyor automation
· Material handling systems
· Assembly machines
· Pump control
· Compressor control
· Small production machines
· Machine sequencing
· Pneumatic automation
· Automatic inspection systems
· OEM machine control panels
· Industrial control panels
· Sensor and actuator-based automation
KEY BENEFITS
· 18 integrated digital inputs for field signal acquisition
· 12 integrated 24 V DC digital outputs for machine control
· Compact DC/DC/DC PLC architecture
· 24 V DC power supply suitable for standard control-panel systems
· Expandable with up to 6 expansion modules
· Supports 1 signal board
· Separate program and user-data memory resources
· Compact dimensions for panel integration
· Suitable for OEM and machine-builder applications
· Integrated communication and Micro-SD capability
· Suitable for scalable S7-200 SMART automation systems
