6ES7288-2DE16-0AA0

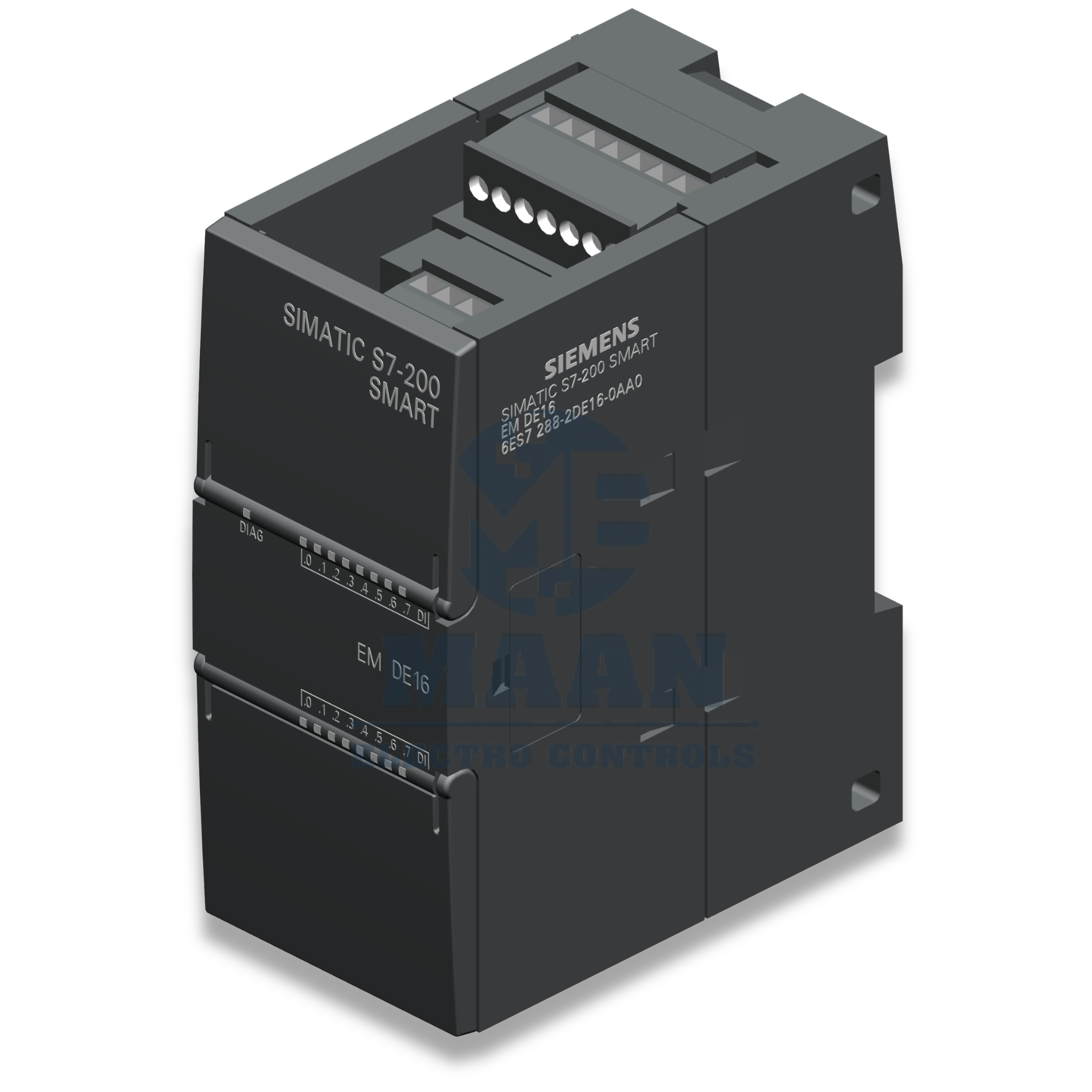

The Siemens SIMATIC S7-200 SMART EM DI16 (6ES7288-2DE16-0AA0) is a 16-channel digital input expansion module designed to extend the digital input capacity of S7-200 SMART PLC systems. With 24 V DC Sink/Source input capability, it provides flexible signal interfacing for sensors, switches, push buttons, proximity sensors, limit switches, and other industrial field devices.
PRODUCT SPECIFICATIONS
· Product: SIMATIC S7-200 SMART EM DI16
· Article Number: 6ES7288-2DE16-0AA0
· Module Type: Digital Input Expansion Module
· Digital Inputs: 16 DI
· Input Voltage: 24 V DC
· Input Configuration: Sink / Source
· Application: PLC digital signal acquisition
· Series: S7-200 SMART
· Installation: Expansion module for S7-200 SMART PLC
· Function: Extends available digital input points
FEATURES
16-CHANNEL INPUT EXPANSION
Provides 16 digital input channels for expanding the signal-handling capability of an S7-200 SMART automation system.
24 V DC FIELD SIGNALS
Designed for common 24 V DC industrial control signals used with sensors, switches, push buttons, and machine feedback devices.
SINK/SOURCE FLEXIBILITY
Supports Sink/Source input arrangements, providing greater flexibility when designing field wiring and connecting different types of digital devices.
MODULAR PLC ARCHITECTURE
The expansion-module concept allows machine builders to develop PLC systems according to the required I/O count instead of relying only on the CPU's integrated I/O.
MULTI-SIGNAL MONITORING
Useful when a machine contains a large number of independent ON/OFF signals that must be monitored simultaneously.
BENEFITS
- 16 Digital Input Channels – Provides 16 digital inputs for connecting multiple field devices within an S7-200 SMART PLC system.
- 24 V DC Signal Compatibility – Designed for common 24 V DC digital signals used in industrial automation and machine control.
- Sink/Source Flexibility – Supports flexible digital input wiring arrangements for different field-device configurations.
- Expanded PLC I/O Capacity – Adds additional digital inputs when the CPU's integrated I/O is insufficient for the application.
- Multiple Device Connectivity – Enables connection of sensors, switches, push buttons, limit switches, feedback contacts, and other discrete devices.
- Simplified Machine Wiring – Provides a structured interface between field-level digital signals and the PLC control system.
- Supports Machine Sequencing – Input signals can be used as conditions for machine sequences, interlocks, positioning, and process operations.
- Suitable for OEM Machines – Useful for custom machinery where the number of digital field signals varies from one machine design to another.
- Flexible Control Panel Design – Helps panel builders create modular PLC architectures with additional digital input capacity.
- Efficient Signal Monitoring – Allows multiple ON/OFF machine conditions to be monitored by the PLC.
- Improved System Scalability – Makes it easier to expand an S7-200 SMART control system as additional digital signals are required.
- Wide Application Potential – Suitable for packaging, conveyors, assembly machines, material handling, manufacturing equipment, and general industrial automation.
- Better I/O Organization – Dedicated expansion I/O can help organize field sensors and machine feedback signals within the PLC architecture.
- Supports Industrial Automation Integration – Can form part of a complete automation system involving PLCs, HMIs, drives, sensors, and actuators.
