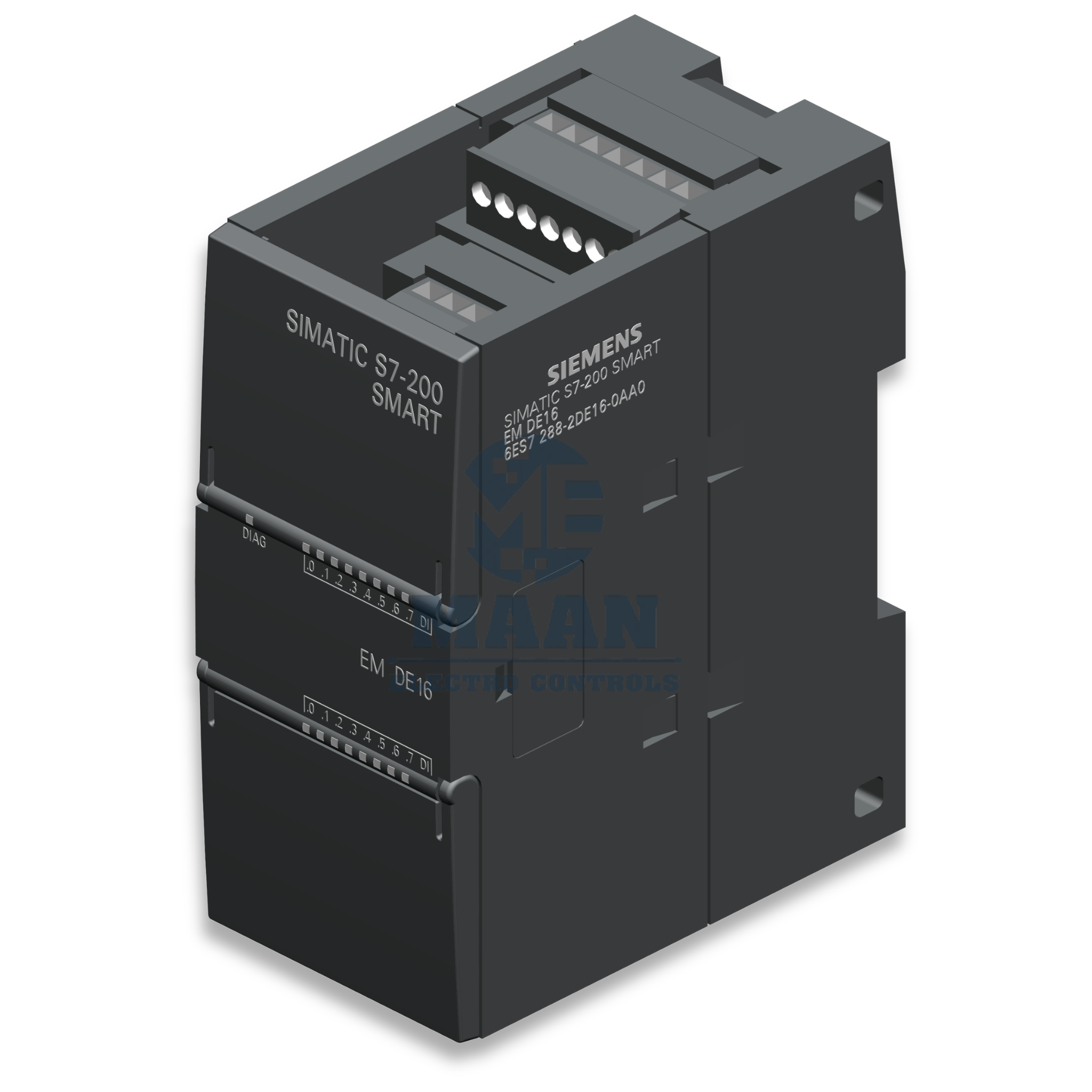

6ES7288-2DE16-0AA0
The Siemens 6ES7288-2DE16-0AA0 is a SIMATIC S7-200 SMART EM DI16 digital input expansion module featuring 16 digital inputs for 24 V DC signals. It supports sink/source input configurations, making it suitable for flexible industrial control-panel wiring and machine automation applications.
Designed for use with the S7-200 SMART PLC platform, this expansion module increases the available digital input capacity for applications requiring additional field signals from sensors, switches, push buttons, proximity devices and other discrete field instruments.
Product Details
Product Name: SIMATIC S7-200 SMART Digital Input Module EM DI16
Article Number: 6ES7288-2DE16-0AA0
Module Type: EM DI16
Digital Inputs: 16 DI
Input Voltage: 24 V DC
Input Type: Sink / Source
Application: Digital signal acquisition and PLC control applications
Series: SIMATIC S7-200 SMART
Features
1. 16 Digital Inputs
The EM DI16 provides 16 additional digital input channels, allowing the PLC to monitor more field devices without replacing the main CPU.
2. 24 V DC Industrial Signals
The module is designed for 24 V DC digital signals, commonly used in industrial automation and machine-control systems.
3. Sink / Source Compatibility
Support for sink/source wiring configurations provides flexibility when connecting different types of field devices and control circuits.
4. S7-200 SMART Expansion
The module is intended to expand the I/O capability of compatible SIMATIC S7-200 SMART PLC systems.
5. Multiple Field Devices
The 16 input channels can be used for monitoring several discrete devices such as:
- Proximity sensors
- Photoelectric sensors
- Limit switches
- Push buttons
- Selector switches
- Pressure switches
- Level switches
- Door/interlock contacts
- Machine-position signals
- Auxiliary contact signals
Benefits
- Expands available PLC digital inputs
- Supports 16 digital input points
- Designed for 24 V DC control signals
- Flexible sink/source input arrangement
- Suitable for machine-building applications
- Helps simplify control-panel I/O expansion
- Supports monitoring of multiple field devices
- Suitable for OEM and industrial automation systems
- Integrates into S7-200 SMART control architectures
