6ES7288-5DT04-0AA0

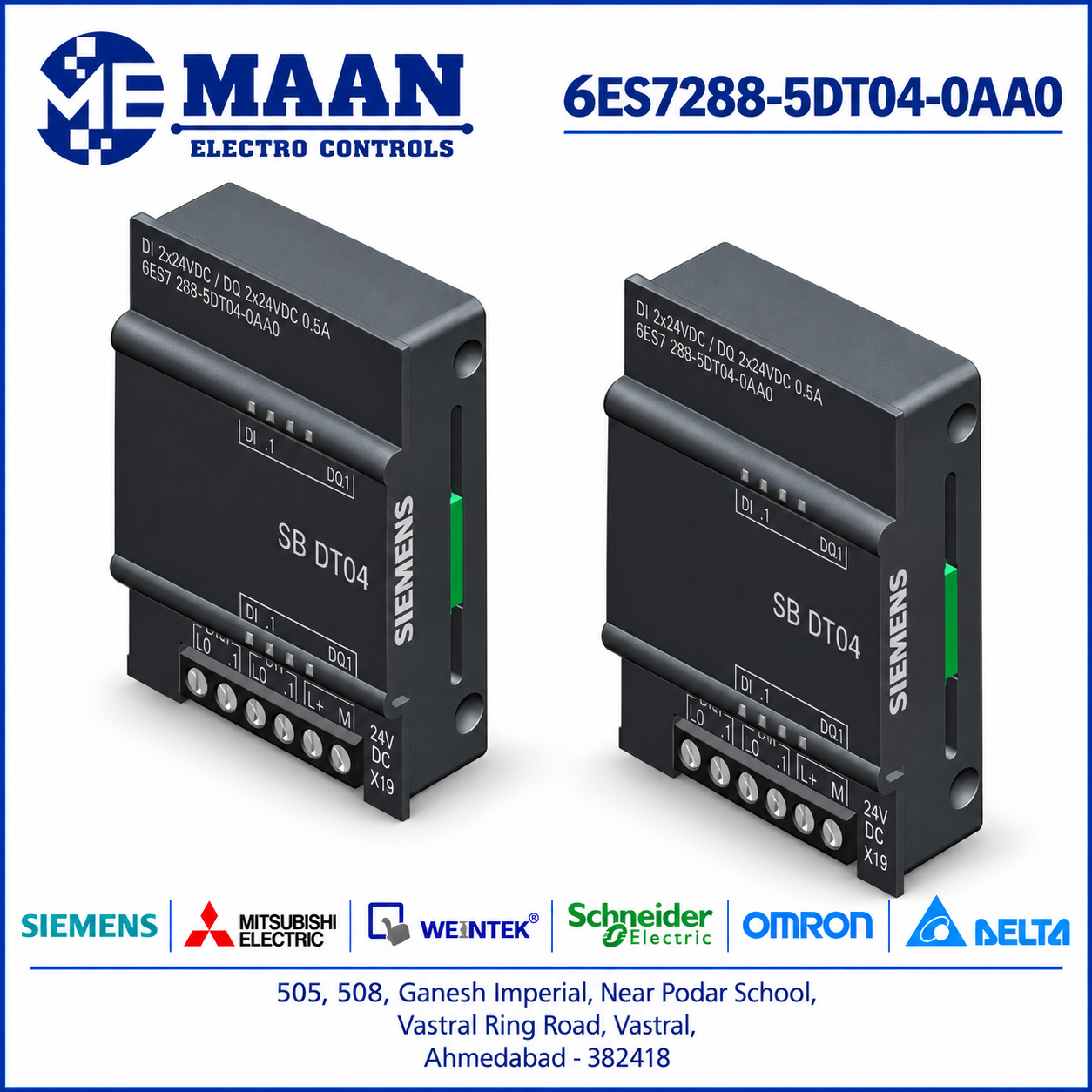

Siemens SIMATIC S7-200 SMART SB DT04 Digital I/O Signal Board – 6ES7288-5DT04-0AA0
The Siemens SB DT04 – 6ES7288-5DT04-0AA0 adds 2 digital inputs and 2 digital outputs at 24 V DC to a compatible SIMATIC S7-200 SMART CPU. This signal board suits small machine modifications requiring a few additional feedback signals and output commands.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-200 SMART
· Board Model: SB DT04
· Order Number: 6ES7288-5DT04-0AA0
· Product Type: Digital Input/Output Signal Board
· I/O Configuration: 2 DI / 2 DO
· Digital Inputs: 2, 24 V DC
· Digital Outputs: 2, 24 V DC
· Total Digital I/O Points: 4
APPLICATION
· Part Detection and Indication: Read a compatible sensor and activate a suitable status lamp through the PLC program.
· Position Confirmation: Use a switch signal to determine when a programmed output action can occur.
· Operator Function Additions: Connect an extra pushbutton or selector signal for a configured machine function.
· Auxiliary Device Commands: Provide additional output signals to compatible equipment-control inputs.
BENEFITS
· Provides a focused expansion option when only two inputs and two outputs are needed.
· Supports small modifications to existing compatible S7-200 SMART installations.
· Allows new feedback conditions and output actions to join the machine sequence.
· Combines four digital I/O points in one signal board.
