6ES7510-1DK03-0AB0

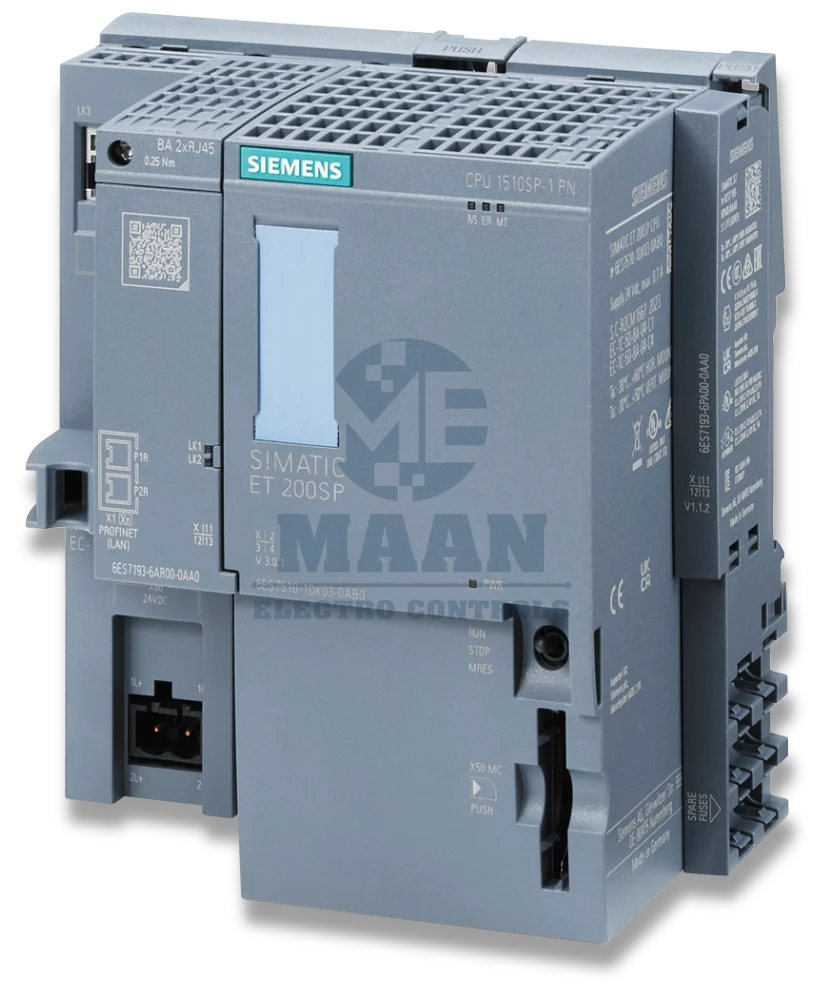

6ES7510-1DK03-0AB0 is a SIMATIC S7-1500 CPU 1510SP-1 PN designed for the ET 200SP distributed I/O system. It provides centralized processing with 200 KB work memory for program data and 1 MB for data, along with PROFINET IRT communication and a compact ET 200SP form factor.
PRODUCT DETAILS
· Manufacturer: Siemens
· Product Family: SIMATIC S7-1500 / ET 200SP
· CPU Model: CPU 1510SP-1 PN
· Article Number: 6ES7510-1DK03-0AB0
· CPU Type: Central Processing Unit
· Mounting System: ET 200SP
· Program Work Memory: 200 KB
· Data Work Memory: 1 MB
· Interface: PROFINET
· Communication: PROFINET IRT
· Integrated Switch: 3-port switch
· Bit Performance: Approx. 6 ns/bit
· Server Module: Included
· SIMATIC Memory Card: Required
· BusAdapter: Required for Port 1 and Port 2
FEATURES
1. Compact ET 200SP CPU
o Designed specifically for space-efficient distributed automation architectures.
o Suitable for control panels and decentralized machine automation.
2. High-Speed Processing
o Approx. 6 ns/bit performance supports fast PLC program execution.
o Suitable for applications requiring quick response to digital control signals.
3. PROFINET IRT
o Integrated PROFINET interface supports industrial Ethernet communication.
o PROFINET IRT can be used for applications requiring synchronized and deterministic communication.
4. Integrated 3-Port Switch
o Provides flexible PROFINET network connectivity.
o Helps simplify network topology and device interconnection.
5. Memory Capacity
o 200 KB program work memory for the user program.
o 1 MB data work memory for process and application data.
6. ET 200SP Integration
o Designed for direct integration into the SIMATIC ET 200SP distributed I/O platform.
o Suitable for modular machine and plant architectures.
7. Expandable Architecture
o Can be combined with ET 200SP I/O modules and associated communication components to build distributed control systems.
BENEFITS
· Compact PLC solution for ET 200SP
· Fast 6 ns/bit processing performance
· 200 KB program work memory
· 1 MB data work memory
· Integrated PROFINET communication
· PROFINET IRT support
· Integrated 3-port switch
· Modular ET 200SP architecture
· Suitable for distributed automation
· Space-saving installation
· Scalable I/O configuration
· Suitable for machine and factory automation
