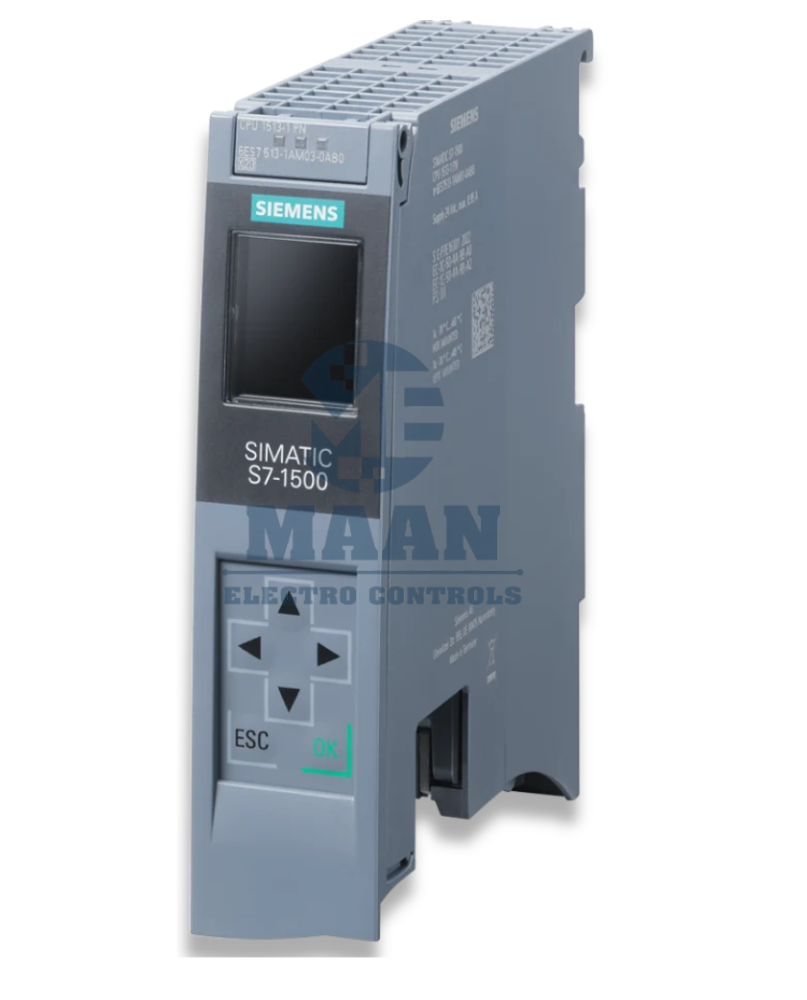

6ES7513-1AM03-0AB0 IN SILVASSA

6ES7513-1AM03-0AB0

6ES7513-1AM03-0AB0 is a SIMATIC S7-1500 CPU 1513-1 PN designed for high-performance industrial automation and machine-control applications. It acts as the central processing unit of an S7-1500 PLC system, executing the user program, processing input/output data, managing communication, and coordinating connected automation devices.

The CPU provides 600 KB work memory for program data and 2.5 MB for data, together with a PROFINET interface featuring a 2-port switch. Siemens lists this product as an active S7-1500 CPU, and a SIMATIC Memory Card is required for operation.

The CPU 1513-1 PN is suitable when an automation system needs fast PLC processing, PROFINET-based communication, distributed I/O integration, HMI connectivity, and scalable machine or plant control.

PRODUCT DETAILS

• Product: SIMATIC S7-1500 CPU 1513-1 PN
• Article Number: 6ES7513-1AM03-0AB0
• CPU Type: CPU 1513-1 PN
• Series: SIMATIC S7-1500
• Application: Industrial PLC / automation control
• Supply Voltage: 24 V DC
• Permissible Supply Range: 19.2–28.8 V DC
• Program Work Memory: 600 KB
• Data Work Memory: 2.5 MB
• Communication: PROFINET
• PROFINET Interface: 1 interface with 2-port switch
• PROFINET Mode: PROFINET IRT
• SIMATIC Memory Card: Required
• I&M Data: I&M0 to I&M3
• Isochronous Mode: Supported
• Display: Integrated display
• Operating Keys: 8
• Mode Buttons: 2
• Rated Current Consumption: 0.56 A
• Maximum Current Consumption: 0.9 A

SIEMENS AUTOMATION INTEGRATION

1. PLC CONTROL

The CPU executes the PLC application program and coordinates machine sequences, interlocks, timers, counters, process logic and control functions.

2. PROFINET COMMUNICATION

Its integrated PROFINET interface can connect the CPU with:

• ET 200 distributed I/O
• SIMATIC HMI panels
• SINAMICS drives
• PROFINET field devices
• Industrial Ethernet components
• Other compatible PROFINET automation devices

3. HMI INTEGRATION

The CPU can exchange process information with Siemens SIMATIC HMI systems. Operators can monitor:

• Machine status
• Production parameters
• Alarms
• Setpoints
• Process values
• Diagnostic information

4. DRIVE INTEGRATION

For motion and motor-control applications, the PLC can communicate with compatible Siemens SINAMICS drives through PROFINET.

This allows coordinated control of:

PLC → PROFINET → SINAMICS Drive → Motor

5. DISTRIBUTED I/O

The CPU can be used with distributed I/O architectures such as SIMATIC ET 200 systems, reducing the need to bring every field signal directly to the main PLC rack.

6. SCADA / SUPERVISORY SYSTEM

PLC process data can also be integrated into higher-level visualization and supervisory systems for production monitoring, alarms, diagnostics and data collection.
