6ES7515-2AN03-0AB0

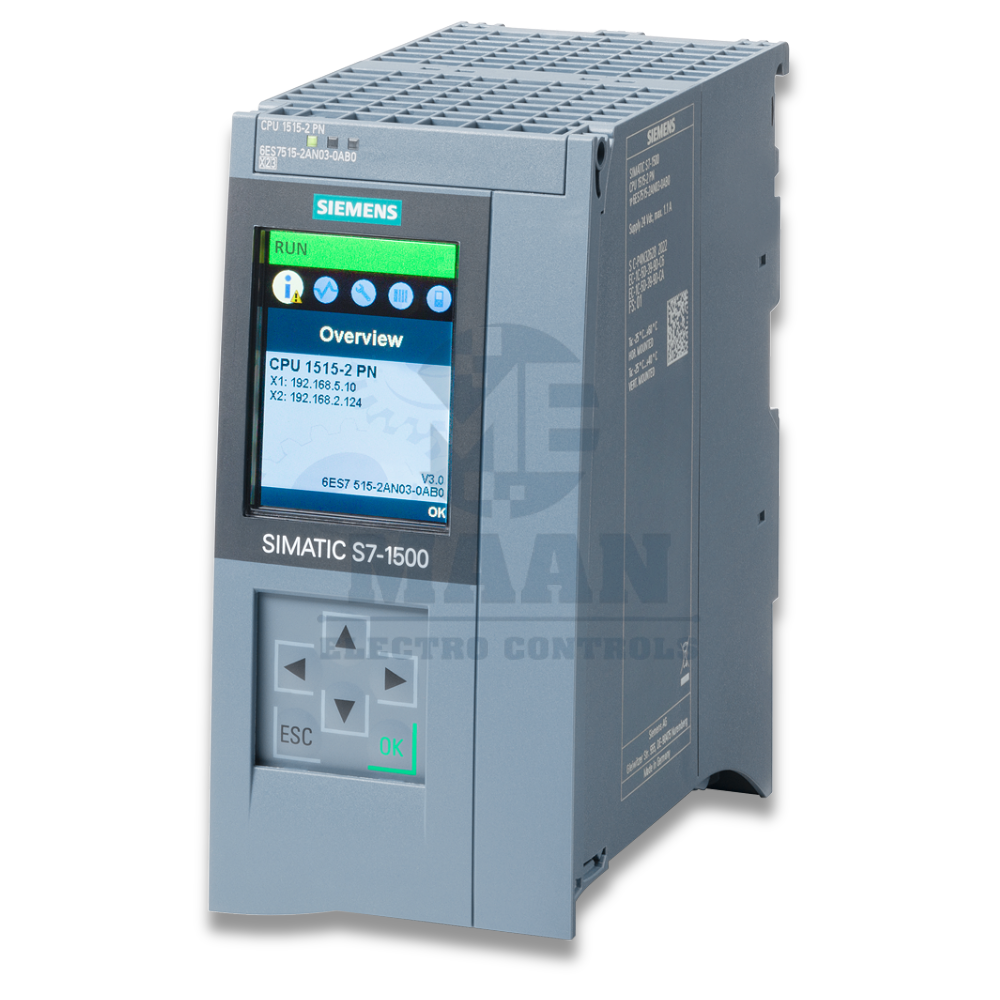

SIEMENS 6ES7515-2AN03-0AB0 — SIMATIC S7-1500 CPU 1515-2 PN
The Siemens 6ES7515-2AN03-0AB0 is a SIMATIC S7-1500 CPU 1515-2 PN designed for high-performance automation applications where fast PLC processing, substantial memory capacity, and flexible PROFINET communication are required. With 1 MB work memory for program, 4.5 MB work memory for data, and 6 ns bit performance, this CPU provides a powerful control platform for sophisticated machines, production systems, and industrial plants.
Its integrated PROFINET IRT interface with a 2-port switch and separate PROFINET RT interface provide flexible networking options for connecting distributed automation components and industrial Ethernet devices.
PRODUCT IDENTIFICATION
· Article Number: 6ES7515-2AN03-0AB0
· Product Series: SIMATIC S7-1500
· CPU Type: CPU 1515-2 PN
· Controller Class: High-performance PLC CPU
· Program Work Memory: 1 MB
· Data Work Memory: 4.5 MB
· Bit Performance: 6 ns
· Memory Requirement: SIMATIC Memory Card required
· Primary Communication: PROFINET
· First Interface: PROFINET IRT
· First Interface Network: Integrated 2-port switch
· Second Interface: PROFINET RT
SIMATIC S7-1500 SYSTEM INTEGRATION
The CPU 1515-2 PN can operate as part of a broader SIMATIC S7-1500 automation architecture. It can be combined with suitable Siemens components such as:
· SIMATIC ET 200 distributed I/O
· SIMATIC HMI panels
· PROFINET network components
· SINAMICS drive systems
· Industrial Ethernet components
· Digital and analog I/O modules
· Technology modules
· Communication modules
· Industrial automation peripherals
ADVANTAGES
Fast Processing
6 ns bit performance supports rapid execution of PLC control operations.
High Program Capacity
1 MB work memory provides substantial space for PLC application programs.
Large Data Capacity
4.5 MB data work memory supports complex application data requirements.
Two PROFINET Interfaces
Provides greater flexibility when designing industrial communication networks.
PROFINET IRT Support
The first interface supports applications requiring industrial real-time Ethernet communication.
Integrated 2-Port Switch
The first PROFINET interface includes a 2-port switch for network connectivity.
Expandable Automation Architecture
Can be integrated into larger S7-1500 and PROFINET-based systems.
