6ES7515-2AN03-0AB0

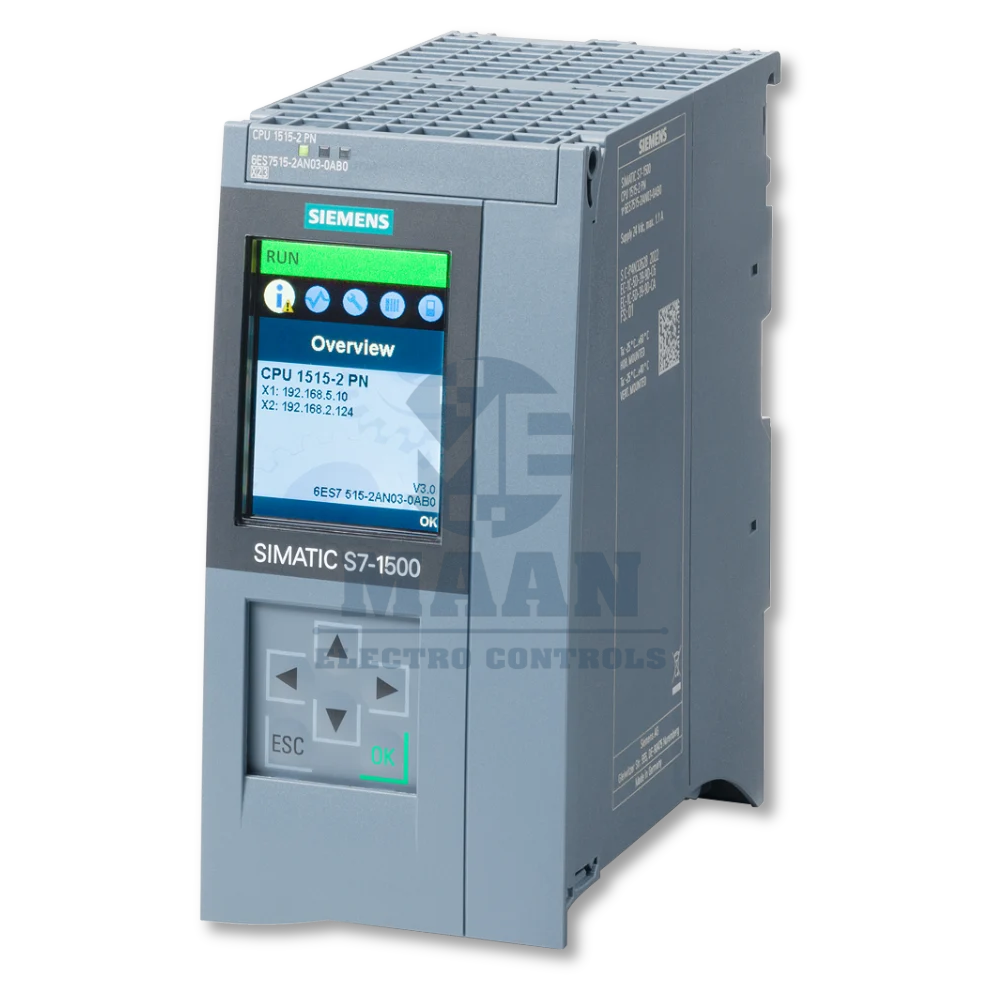

Siemens SIMATIC S7-1500 CPU 1515-2 PN — 6ES7515-2AN03-0AB0
6ES7515-2AN03-0AB0 is a SIMATIC S7-1500 CPU 1515-2 PN from Siemens, intended for advanced and high-performance industrial automation applications. The CPU provides 1 MB work memory for the user program and 4.5 MB work memory for data, combined with fast 6 ns bit performance.
The CPU features two independent PROFINET communication interfaces: a PROFINET IRT interface with integrated 2-port switch and a second PROFINET RT interface. This provides flexibility for machine-level communication, distributed I/O, HMI connectivity and industrial networking.
TECHNICAL DATA
Manufacturer : Siemens
Product Family : SIMATIC S7-1500
CPU Model : CPU 1515-2 PN
Article Number : 6ES7515-2AN03-0AB0
CPU Type : S7-1500 Central Processing Unit
Program Work Memory : 1 MB
Data Work Memory : 4.5 MB
Bit Performance : 6 ns
First Interface : PROFINET IRT
First Interface Configuration : 2-port switch
Second Interface : PROFINET RT
Memory Requirement : SIMATIC Memory Card required
Network Technology : Industrial Ethernet / PROFINET
Application Class : Advanced industrial automation
FEATURES
1. High-Speed CPU Performance
With 6 ns bit performance, the CPU is designed for fast execution of PLC instructions and demanding control sequences. This is beneficial for applications where rapid machine response and efficient program execution are important.
2. 1 MB Program Work Memory
The CPU provides 1 MB of work memory for the program, allowing users to implement comparatively complex PLC control programs and structured automation routines.
3. 4.5 MB Data Work Memory
The 4.5 MB data work memory provides substantial capacity for process values, parameters, recipe data, diagnostic information and other application data.
4. PROFINET IRT Communication
The first integrated interface supports PROFINET IRT, making the CPU suitable for automation architectures requiring deterministic and synchronized communication.
5. Integrated 2-Port Switch
The first PROFINET interface includes a 2-port switch, simplifying network topology and allowing compatible PROFINET devices to be connected in a structured industrial network.
6. Additional PROFINET RT Interface
The second interface provides PROFINET RT connectivity, allowing additional communication possibilities within the automation system.
