6ES7516-3AP03-0AB0

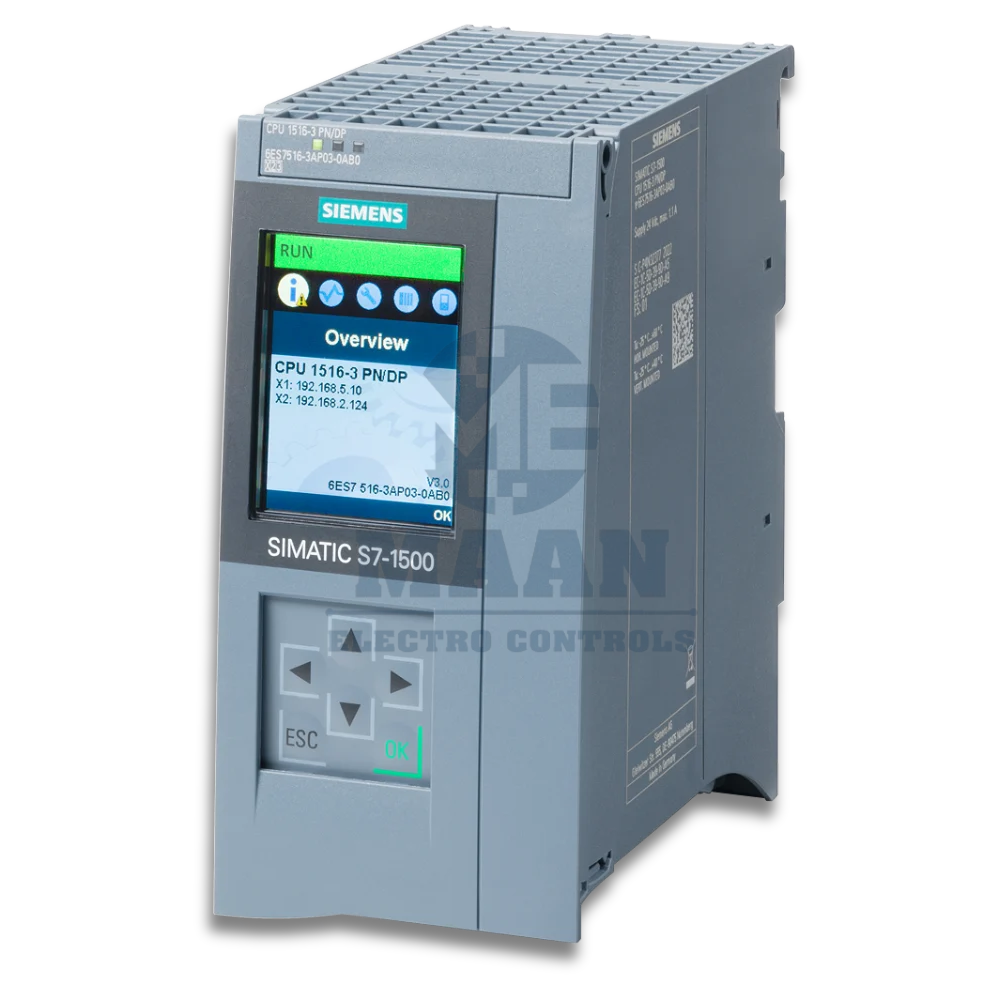

SIEMENS SIMATIC S7-1500 CPU 1516-3 PN/DP — 6ES7516-3AP03-0AB0
6ES7516-3AP03-0AB0 is a SIMATIC S7-1500 CPU 1516-3 PN/DP, designed for high-performance industrial automation applications requiring multiple industrial communication interfaces. It combines PROFINET IRT, PROFINET RT, and PROFIBUS connectivity in a single CPU for flexible system integration.
PRODUCT SPECIFICATIONS
Product : SIMATIC S7-1500 CPU 1516-3 PN/DP
Order Number : 6ES7516-3AP03-0AB0
CPU Series : S7-1500
Work Memory – Program : 2 MB
Work Memory – Data : 7.5 MB
Bit Performance : 6 ns
1st Interface : PROFINET IRT with integrated 2-port switch
2nd Interface : PROFINET RT
3rd Interface : PROFIBUS
Memory Card : SIMATIC Memory Card required
Communication : PROFINET / PROFIBUS
Application : Advanced industrial automation and machine control
FEATURES
- High-performance S7-1500 CPU for demanding automation tasks
- 2 MB program work memory for larger control programs
- 7.5 MB data work memory for extensive process and application data
- 6 ns bit performance for fast PLC processing
- Integrated PROFINET IRT interface with 2-port switch
- Additional PROFINET RT interface for network communication
- Integrated PROFIBUS interface for connecting PROFIBUS field devices
- Suitable for systems combining modern PROFINET devices with existing PROFIBUS networks
- Supports structured and scalable automation architectures
- SIMATIC Memory Card required for operation
BENEFITS
1. High-Speed PLC Processing
The 6 ns bit performance supports fast execution of control logic and demanding machine sequences.
2. Large Memory Capacity
The combination of 2 MB program memory and 7.5 MB data memory provides capacity for complex automation programs, recipes, diagnostics, and process data.
3. Multi-Network Connectivity
With PROFINET IRT, PROFINET RT, and PROFIBUS interfaces, the CPU can serve as a central controller within diverse industrial communication architectures.
4. PROFINET IRT Integration
The first interface supports PROFINET IRT communication for applications requiring deterministic and synchronized communication.
5. Existing PROFIBUS Integration
The integrated PROFIBUS interface helps connect established PROFIBUS-based field devices without requiring a separate communication processor.
6. Scalable Automation Architecture
The CPU is suitable for machine-level and plant-level automation where multiple devices, drives, remote I/O stations, HMIs, and networks need coordinated control.
