6ES7521-1BH10-0AA0

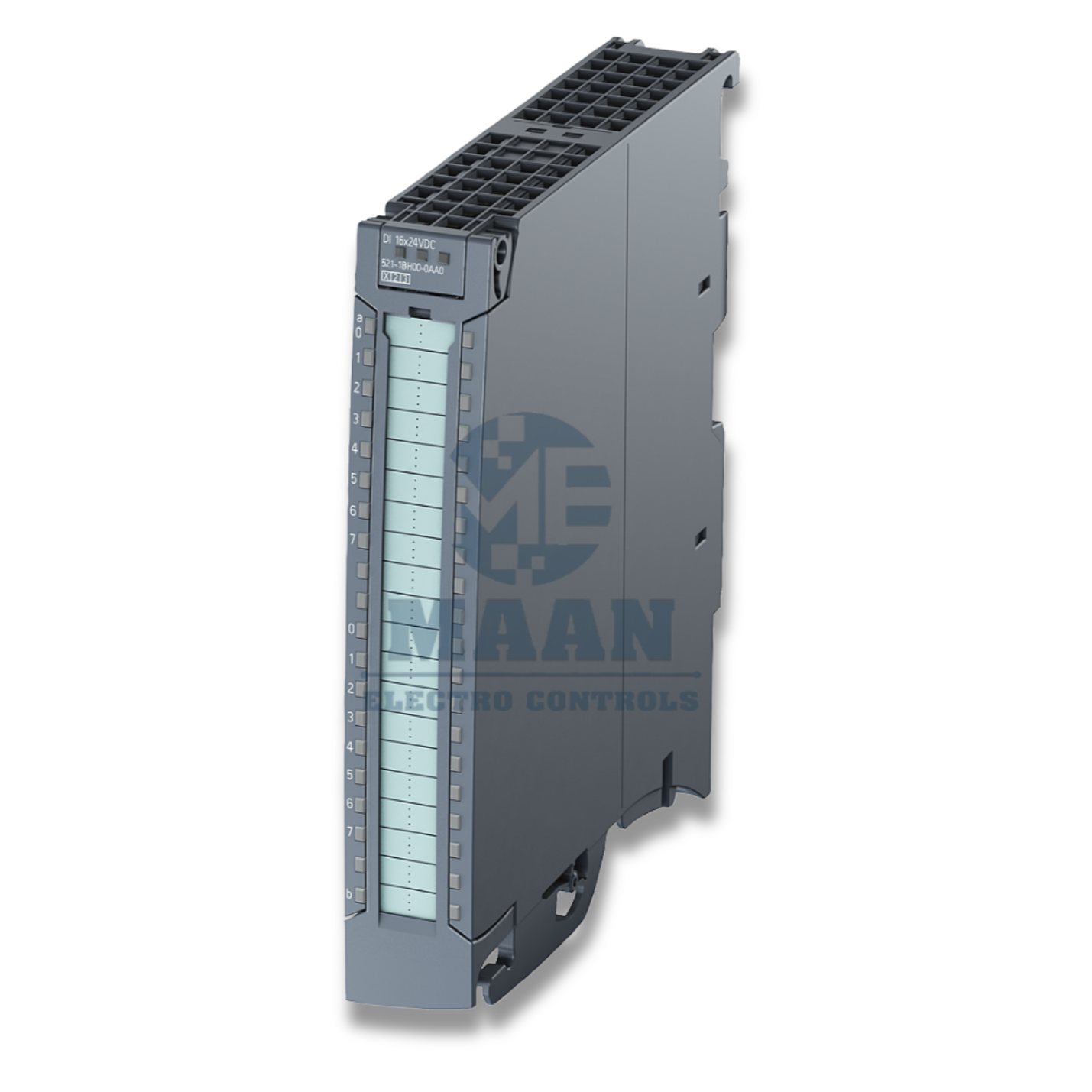

Siemens 6ES7521-1BH10-0AA0 – SIMATIC S7-1500 Digital Input Module
6ES7521-1BH10-0AA0 is a SIMATIC S7-1500 Digital Input Module DI 16x24 V DC BA, designed to acquire 16 digital field signals from 24 V DC devices and integrate them into Siemens S7-1500 PLC control systems. The module features 16 channels in one group, a typical input delay of 3.2 ms, IEC 61131 Type 3 input characteristics, and is supplied with a Push-in front connector.
PRODUCT DETAILS
- Product: SIMATIC S7-1500 Digital Input Module
- Article Number: 6ES7521-1BH10-0AA0
- Module Type: DI 16x24 V DC BA
- Number of Digital Inputs: 16
- Input Voltage: 24 V DC
- Channel Arrangement: 16 channels in 1 group of 16
- Input Type: Type 3 according to IEC 61131
- Typical Input Delay: 3.2 ms
- Front Connector: Push-in
- Series: SIMATIC S7-1500
- Application: Digital signal monitoring and machine automation
TECHNICAL HIGHLIGHTS
16 DIGITAL INPUT CHANNELS
The module provides 16 individual digital input channels, allowing multiple field devices and machine status signals to be connected to an S7-1500 PLC system.
24 V DC SIGNAL ACQUISITION
Designed for standard industrial 24 V DC digital signals commonly used with sensors, switches, push buttons, machine feedback and control equipment.
TYPE 3 INPUT ACCORDING TO IEC 61131
The input circuitry follows Type 3 characteristics as specified by IEC 61131, supporting reliable detection of suitable industrial switching signals.
3.2 ms TYPICAL INPUT DELAY
The specified typical input delay is approximately 3.2 ms, making the module suitable for a wide range of machine monitoring and automation applications.
16-CHANNEL GROUP
All 16 inputs are arranged in one group, providing an organized I/O structure for panel wiring and PLC configuration.
PUSH-IN FRONT CONNECTOR INCLUDED
The module is delivered with a Push-in front connector, simplifying field wiring and helping provide a clean and service-friendly panel installation.
