6ES7521-1BH10-0AA0 IN RAJKOT

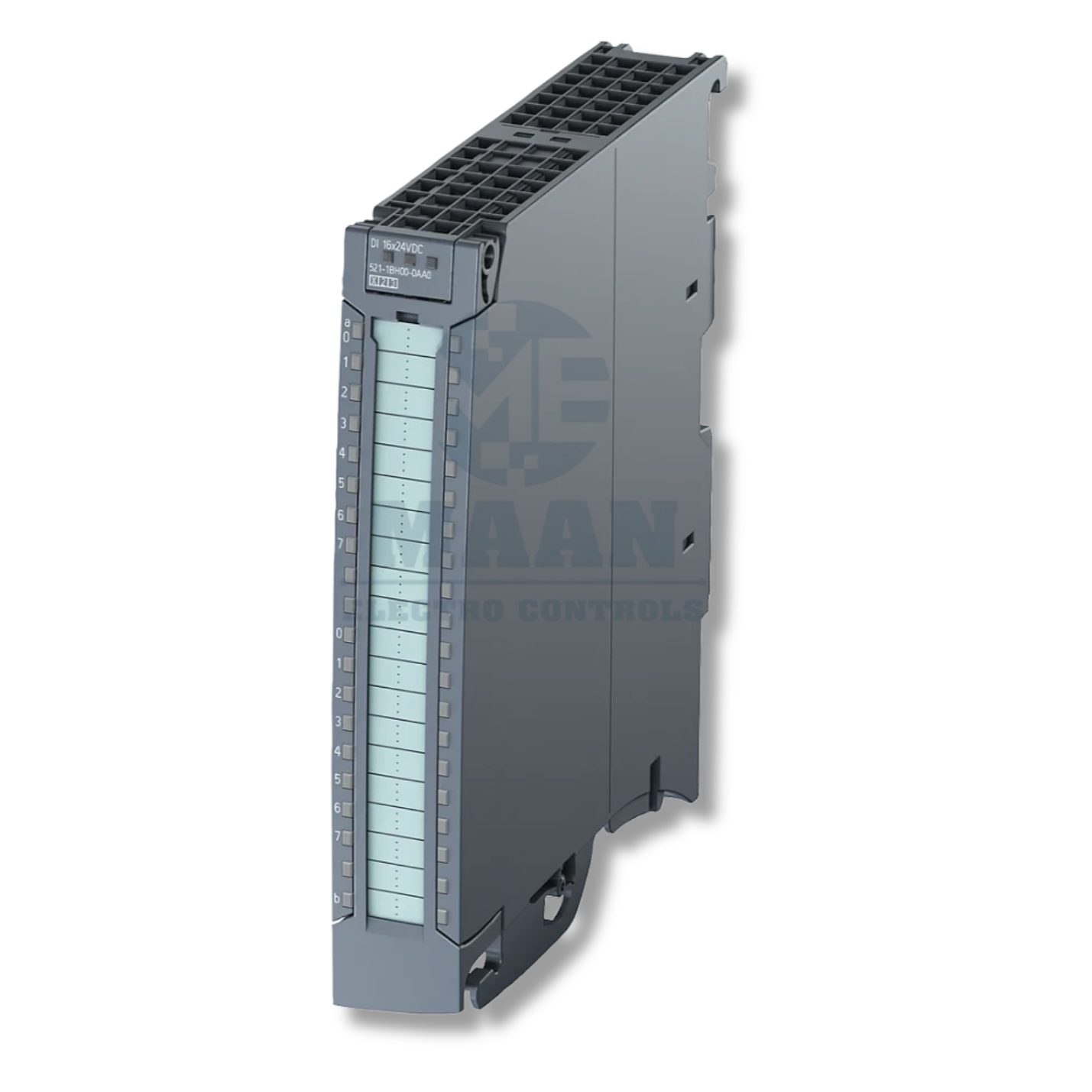

Siemens SIMATIC S7-1500 Digital Input Module DI 16x24 V DC BA – 6ES7521-1BH10-0AA0
The Siemens SIMATIC S7-1500 Digital Input Module DI 16x24 V DC BA – 6ES7521-1BH10-0AA0 is a compact and reliable digital input module designed for SIMATIC S7-1500 PLC automation systems.
The module provides 16 digital inputs for 24 V DC signals, with all 16 channels arranged in one group. It is suitable for acquiring standard ON/OFF signals from industrial sensors, switches, proximity devices, machine-status signals, and other field-level digital devices.
The 6ES7521-1BH10-0AA0 features a typical input delay of 3.2 ms and uses input type 3 according to IEC 61131, providing standardized digital signal acquisition for industrial control applications.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1500
· Module Type: Digital Input Module
· Order Number: 6ES7521-1BH10-0AA0
· Input Type: DI 16x24 V DC BA
· Number of Digital Inputs: 16
· Input Voltage: 24 V DC
· Channel Configuration: 16 channels in groups of 16
· Input Delay: Typ. 3.2 ms
· Input Type Standard: Type 3, IEC 61131
· Front Connector: Included
· Front Connector Type: Push-in
· PLC Platform: SIMATIC S7-1500
· Application: Digital signal acquisition and industrial automation
TECHNICAL FEATURES
1. 16 Digital Inputs
The 6ES7521-1BH10-0AA0 provides 16 digital input channels, allowing multiple field signals to be connected to an S7-1500 PLC system through a single digital input module.
2. 24 V DC Digital Signal Acquisition
The module is designed for 24 V DC digital inputs, making it suitable for common industrial control signals generated by compatible sensors, switches, proximity devices, machine contacts, and other automation components.
3. BA Digital Input Module
The BA version provides a practical digital input solution for standard S7-1500 automation applications where reliable acquisition of discrete field signals is required.
4. 16 Channels in One Group
All 16 digital input channels are arranged in groups of 16, providing a straightforward channel configuration for industrial control-panel and machine-automation designs.
5. Typical 3.2 ms Input Delay
The module features a typical input delay of 3.2 ms, providing predictable signal response characteristics for standard digital monitoring and control applications.
6. IEC 61131 Input Type 3
The digital inputs use input type 3 according to IEC 61131, supporting standardized industrial digital input characteristics.
7. Push-in Front Connector Included
The front connector is included with the module and uses a Push-in connection design. This supports convenient wiring during control-panel assembly and maintenance.
8. SIMATIC S7-1500 Integration
The module is designed as part of the Siemens SIMATIC S7-1500 PLC platform, allowing it to be incorporated into modular PLC-based automation architectures.
