6ES7521-1BL00-0AB0

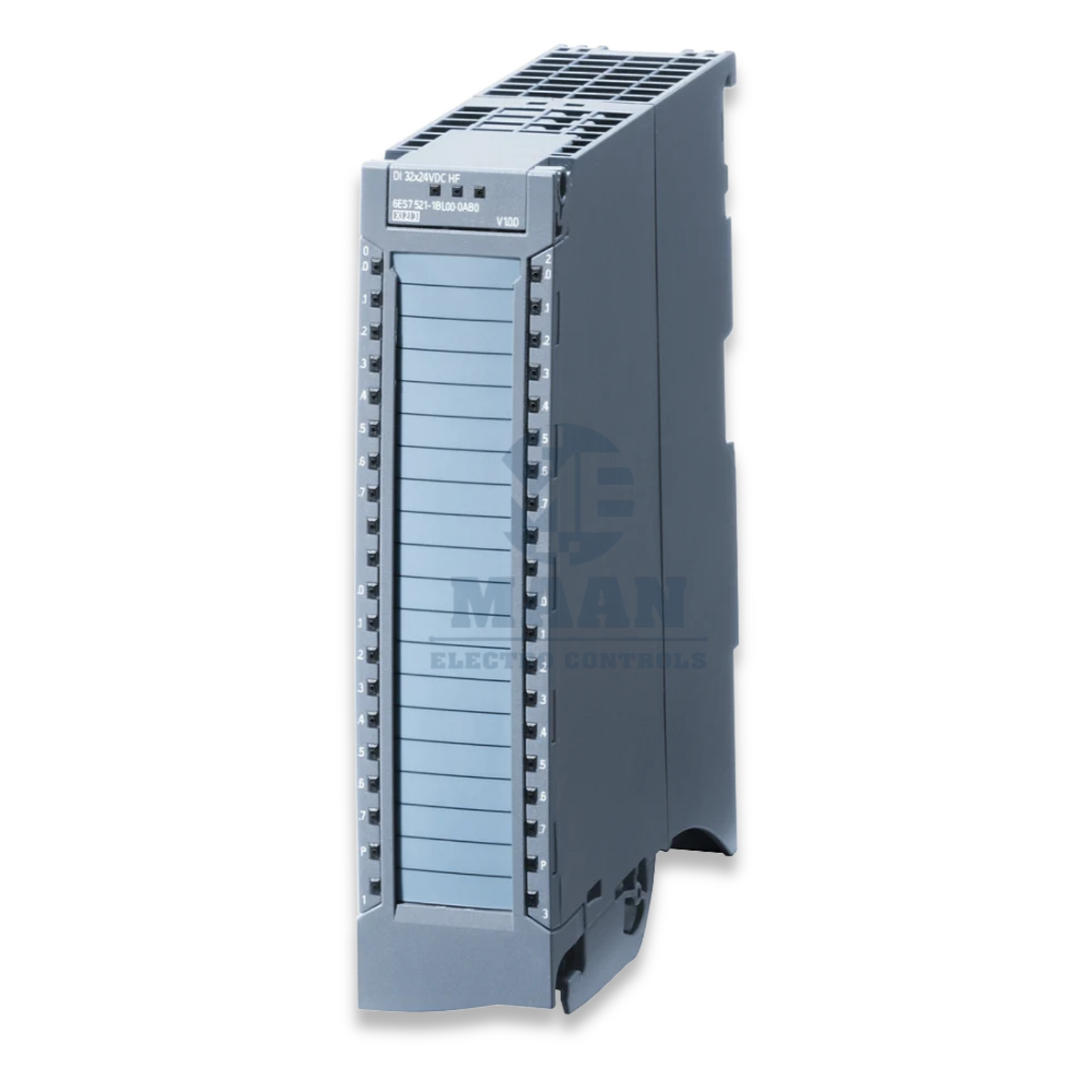

Siemens 6ES7521-1BL00-0AB0 – SIMATIC S7-1500 DI 32x24 V DC HF
The Siemens 6ES7521-1BL00-0AB0 is a SIMATIC S7-1500 Digital Input Module DI 32x24 V DC HF designed for high-density digital signal acquisition in industrial automation systems. With 32 digital input channels, configurable input delay, integrated diagnostics, hardware interrupts and counter functionality on two inputs, this high-functionality module provides flexible signal processing for demanding PLC applications.
PRODUCT DETAILS
· Manufacturer: Siemens
· Product Family: SIMATIC S7-1500
· Order Number: 6ES7521-1BL00-0AB0
· Module Type: Digital Input Module
· Designation: DI 32x24 V DC HF
· Digital Inputs: 32 channels
· Input Voltage: 24 V DC
· Channel Arrangement: 32 inputs in groups of 16
· Counter Function: 2 inputs can be configured for counter applications
· Input Delay: 0.05 to 20 ms
· Input Type: Type 3 according to IEC 61131
· Diagnostics: Supported
· Hardware Interrupts: Supported
· Front Connector: Screw terminal or push-in type, ordered separately
· Controller Platform: SIMATIC S7-1500
FEATURES
32 Digital Inputs
The module provides 32 digital input channels, allowing multiple field devices such as proximity sensors, limit switches, push buttons and other binary sensors to be connected to an S7-1500 automation system.
24 V DC Signal Processing
The module is designed for standard 24 V DC industrial digital signals, making it suitable for integration with commonly used sensors and switching devices in machine and process automation.
High-Speed Input Response
The configurable 0.05 to 20 ms input delay allows the module to accommodate different signal characteristics and application requirements. This provides flexibility when processing faster switching signals or signals requiring additional filtering.
Counter Functionality
Two inputs can be used as counters, allowing selected digital signals to be counted directly for suitable automation applications. This can be useful for monitoring pulses, machine cycles or production-related events.
Integrated Diagnostics
Diagnostic functionality assists with identifying input-related conditions and simplifies troubleshooting during machine commissioning and operation.
Hardware Interrupts
Hardware interrupt functionality enables the PLC to respond to supported input events quickly instead of relying solely on the normal cyclic program scan.
BENEFITS
· High-density 32-channel digital input solution
· Designed specifically for SIMATIC S7-1500 systems
· Supports standard 24 V DC industrial signals
· Configurable input delay from 0.05 to 20 ms
· Two inputs provide counter functionality
· Integrated diagnostic capabilities
· Hardware interrupt support
· Suitable for fast and responsive automation applications
· Reduces the need for multiple lower-density input modules
· Ideal for centralized and distributed machine I/O architectures
· Sensor monitoring systems
· High-density digital signal acquisition
