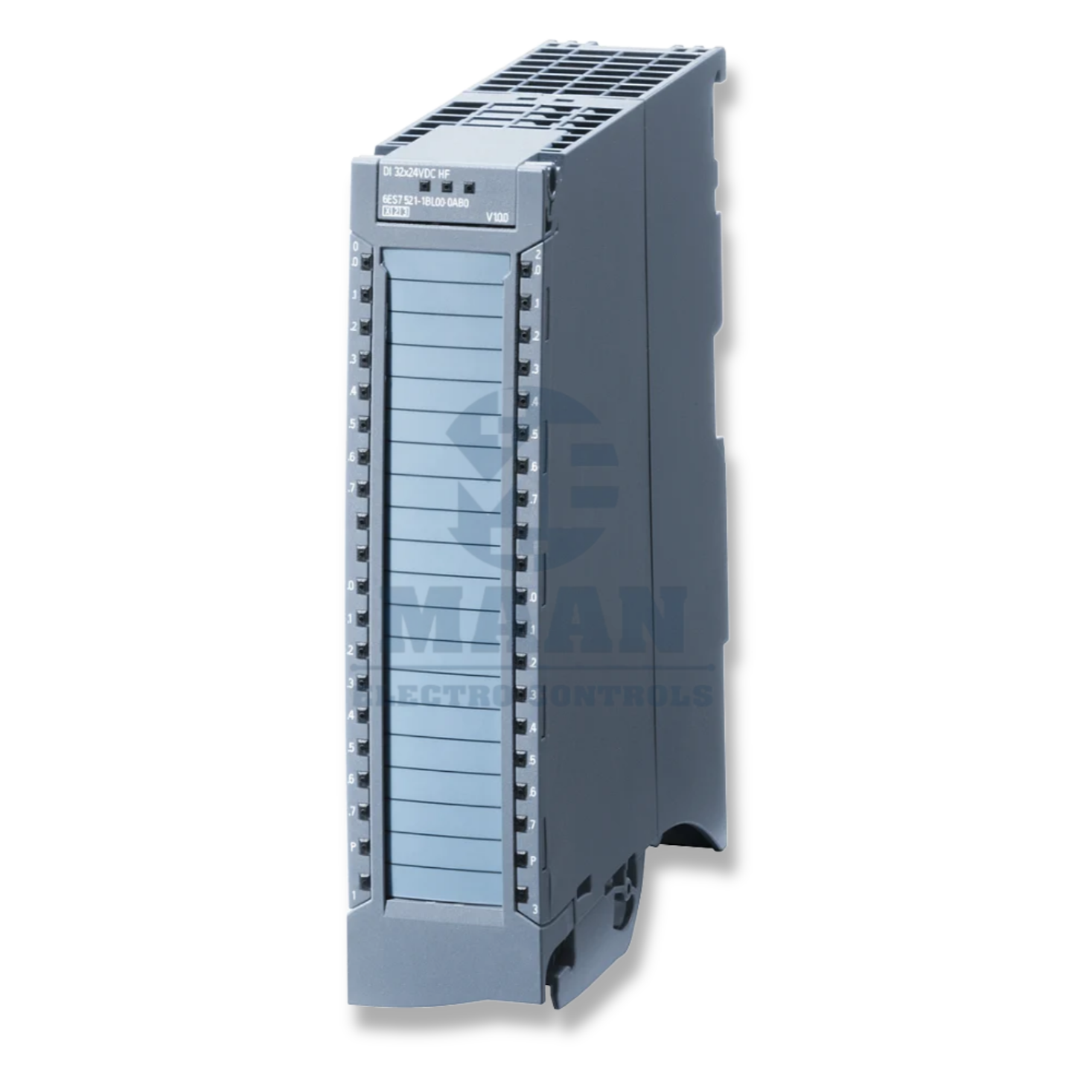

6ES7521-1BL00-0AB0 – SIMATIC S7-1500 DI 32x24 V DC HF
Siemens 6ES7521-1BL00-0AB0 is a SIMATIC S7-1500 Digital Input Module DI 32x24 V DC HF featuring 32 digital input channels for 24 V DC industrial signals. The inputs are arranged in two groups of 16 channels and support configurable input delays from 0.05 ms to 20 ms.
The module provides high-speed digital signal acquisition, integrated diagnostics, hardware interrupt functionality and the ability to use 2 inputs as counters, making it suitable for advanced machine automation and high-density PLC I/O applications.
PRODUCT DETAILS
· Manufacturer: Siemens
· Product Family: SIMATIC S7-1500
· Article Number: 6ES7521-1BL00-0AB0
· Module Type: Digital Input Module
· Designation: DI 32x24 V DC HF
· Number of Digital Inputs: 32
· Signal Voltage: 24 V DC
· Channel Arrangement: 2 × 16 channels
· Input Type: Type 3 according to IEC 61131
· Input Delay: 0.05…20 ms
· Counter Function: 2 inputs can be configured for counter applications
· Diagnostics: Supported
· Hardware Interrupts: Supported
· Front Connector: Ordered separately
· Connector Options: Screw terminal or push-in type
· PLC Platform: SIMATIC S7-1500
TECHNICAL FEATURES
1. 32 Digital Inputs
The module provides 32 independent digital input channels, allowing a large number of field devices to be connected to a single PLC I/O module.
Typical signals include:
· Proximity sensors
· Photoelectric sensors
· Limit switches
· Push buttons
· Selector switches
· Machine feedback signals
· Contactors and auxiliary contacts
· Safety-related status signals where appropriate
· Position sensors
· Presence detection sensors
2. 24 V DC Industrial Inputs
The 24 V DC input interface is designed for common industrial control architectures. It can be used for collecting ON/OFF signals from field devices and transferring their status to the S7-1500 CPU.
3. High-Speed Input Response
The module supports an input delay range of 0.05…20 ms. Configurable input delay allows the application to accommodate different signal characteristics and helps prevent unwanted responses to short electrical disturbances or signal fluctuations.
4. Counter Functionality
Two digital inputs can be used as counters, providing additional functionality for applications involving repetitive pulses or counting operations.
Potential applications include:
· Product counting
· Component counting
· Pulse monitoring
· Encoder-related pulse acquisition
· Conveyor counting
· Production quantity monitoring
· Machine cycle counting
5. Hardware Interrupts
Hardware interrupt functionality allows the PLC program to respond to selected input events without relying exclusively on the normal cyclic scan.
This can be useful where rapid reaction to a defined digital input event is required.
6. Integrated Diagnostics
Diagnostic functions assist in monitoring the module and identifying relevant input or module-related conditions. This can simplify troubleshooting during machine commissioning and maintenance.
