6ES7521-1BL00-0AB0

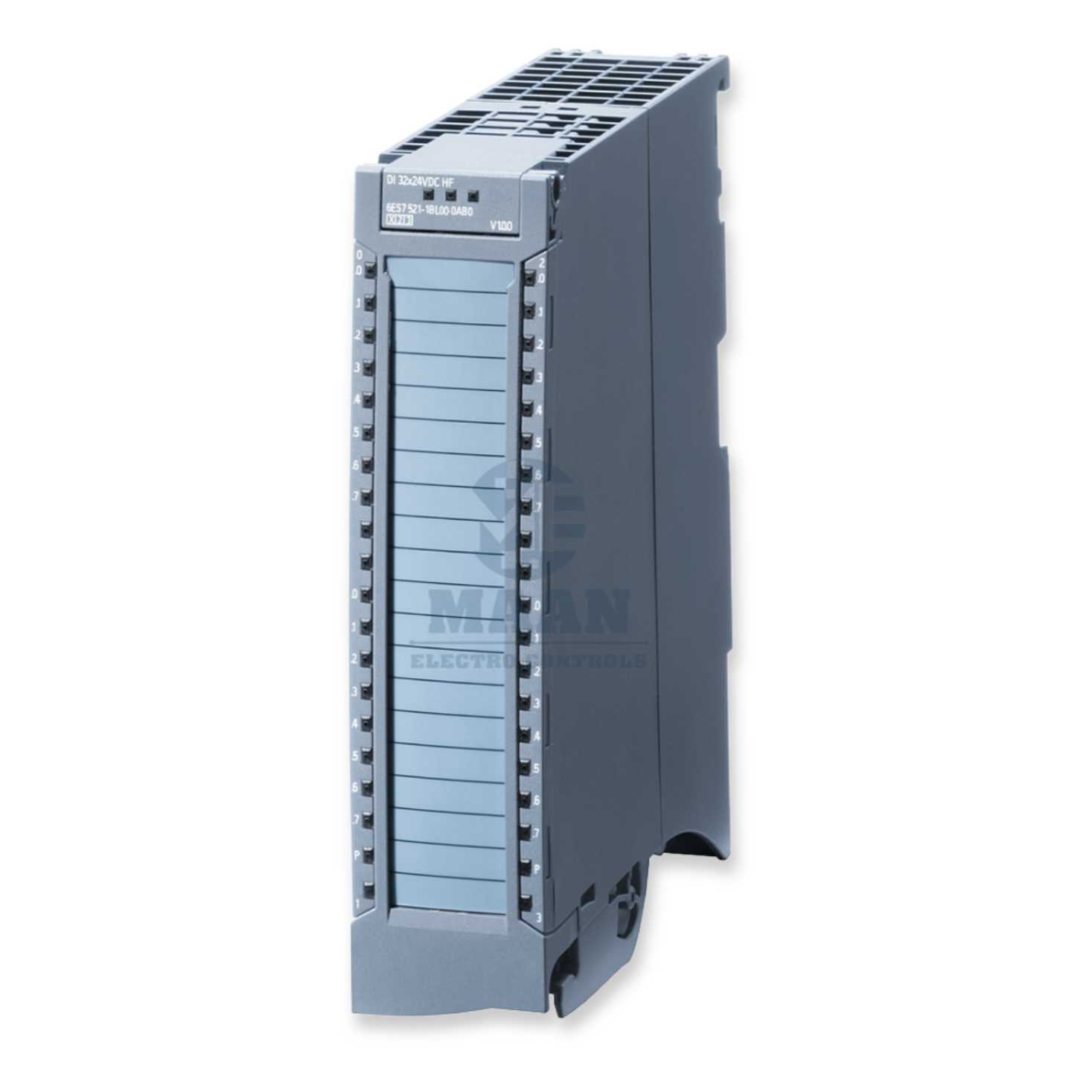

Siemens 6ES7521-1BL00-0AB0 – SIMATIC S7-1500 DI 32x24 V DC HF
The Siemens 6ES7521-1BL00-0AB0 is a SIMATIC S7-1500 Digital Input Module featuring 32 digital inputs for 24 V DC signals. This high-functionality DI module is designed for reliable acquisition of field signals from sensors, switches, push buttons, proximity sensors and other digital devices in industrial automation systems.
With 32 input channels arranged in groups of 16, the module provides a high-density solution for PLC control panels where multiple digital field signals need to be monitored. Two of the inputs can additionally be used as counter inputs, making the module suitable for applications requiring pulse or counting functions.
Product Details
· Siemens Article Number: 6ES7521-1BL00-0AB0
· PLC Platform: SIMATIC S7-1500
· Module Type: Digital Input Module
· Input Configuration: DI 32x24 V DC HF
· Number of Digital Inputs: 32
· Input Voltage: 24 V DC
· Channel Arrangement: 2 groups of 16 channels
· Counter Function: 2 inputs can be used as counters
· Input Delay: 0.05 … 20 ms
· Input Type: Type 3 according to IEC 61131
· Diagnostics: Integrated diagnostic functionality
· Hardware Interrupts: Supported
· Front Connector: Ordered separately
· Connection Options: Screw terminals or Push-in front connector
High-Speed Digital Input Capability
The 6ES7521-1BL00-0AB0 is designed for applications where dependable and responsive digital signal acquisition is required. Its configurable input delay range of 0.05 to 20 ms allows the module to accommodate different types of field signals and helps prevent unwanted switching caused by short signal disturbances.
The high-density 32-channel configuration can also reduce the number of individual input modules required in a control cabinet.
Benefits
32 Digital Inputs
Provides 32 digital input channels in a single module for high-density signal acquisition.
24 V DC Industrial Signals
Suitable for common 24 V DC sensors, switches and digital field devices.
Flexible Input Delay
The 0.05–20 ms input delay range supports different signal characteristics and application requirements.
Counter Capability
Two inputs can be used for counter functions, adding flexibility for pulse-counting applications.
Diagnostics
Integrated diagnostic functions support easier fault identification and system maintenance.
Hardware Interrupts
Allows appropriate input events to be handled through hardware interrupt functionality.
High-Density Panel Design
32 inputs in one module can help optimize PLC panel space and I/O architecture.
