6ES7522-1BH01-0AB0
SIEMENS SIMATIC S7-1500 6ES7522-1BH01-0AB0

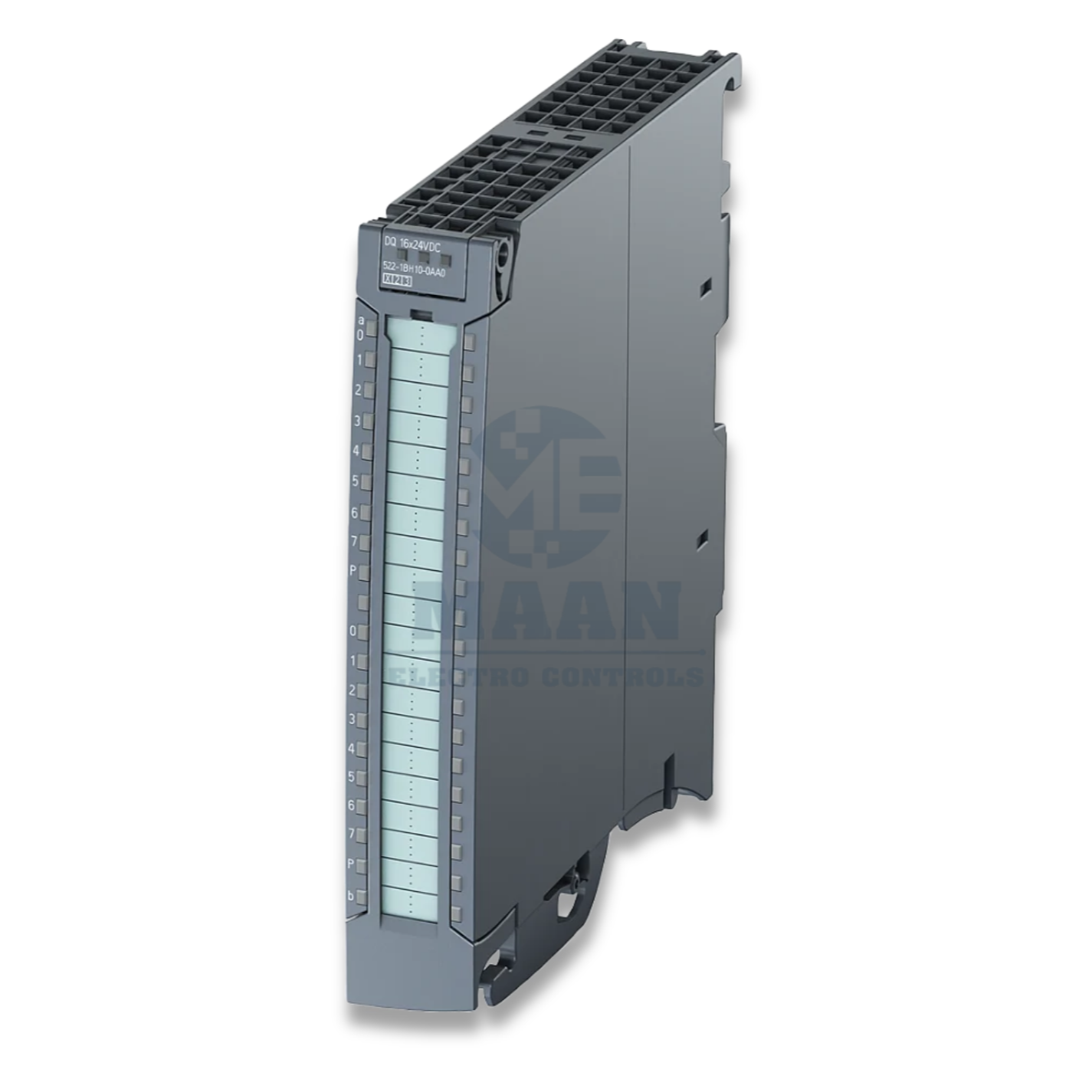

The Siemens 6ES7522-1BH01-0AB0 is a SIMATIC S7-1500 Digital Output Module featuring 16 digital outputs, 24 V DC operating voltage and 0.5 A output current per channel. This high-feature digital output module is designed for reliable switching and control of industrial actuators within Siemens S7-1500 automation systems.
The module provides 16 output channels arranged in groups of 8, with a maximum permissible current of 4 A per group. Integrated single-channel diagnostics, substitute-value functionality and a switching-cycle counter for connected actuators provide additional monitoring capabilities for industrial control applications.
The module also supports safety-oriented shutdown of load groups up to SIL 2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015, making it suitable for machine automation applications requiring defined safety-related output behavior.
PRODUCT HIGHLIGHTS
16 DIGITAL OUTPUT CHANNELS
The module provides 16 digital output channels, allowing multiple industrial actuators and switching devices to be controlled from a single S7-1500 I/O module.
24 V DC OUTPUT
The 24 V DC digital output architecture is suitable for commonly used industrial control components such as relays, contactors, valves, actuators and signaling devices.
0.5 A PER OUTPUT
Each channel supports an output current of up to 0.5 A, providing practical switching capability for a wide range of industrial loads.
4 A PER GROUP
The 16 outputs are organized into two groups of eight channels, with a maximum group current of 4 A.
SINGLE-CHANNEL DIAGNOSTICS
Individual channel diagnostics help identify output-related conditions and support faster troubleshooting and maintenance of the automation system.
SUBSTITUTE VALUE FUNCTION
The module supports substitute-value functionality, allowing defined output behavior to be maintained under applicable operating or fault conditions.
SWITCHING-CYCLE COUNTER
A built-in switching-cycle counter for connected actuators helps monitor actuator switching activity. This can support maintenance planning and operational monitoring of frequently switched components.
BENEFITS
· 16 digital output channels
· 24 V DC output voltage
· 0.5 A output current per channel
· 4 A maximum current per output group
· HF digital output functionality
· Individual channel diagnostics
· Substitute-value functionality
· Switching-cycle counter for connected actuators
· Safety-oriented load-group shutdown support
· SIL 2 capability according to specified standard
· Category 3 / PL d capability according to specified standard
· Designed for SIMATIC S7-1500 systems
· Suitable for demanding industrial automation applications
· Supports efficient actuator control and monitoring
