6ES7522-1BH01-0AB0
Siemens SIMATIC S7-1500 – 6ES7522-1BH01-0AB0

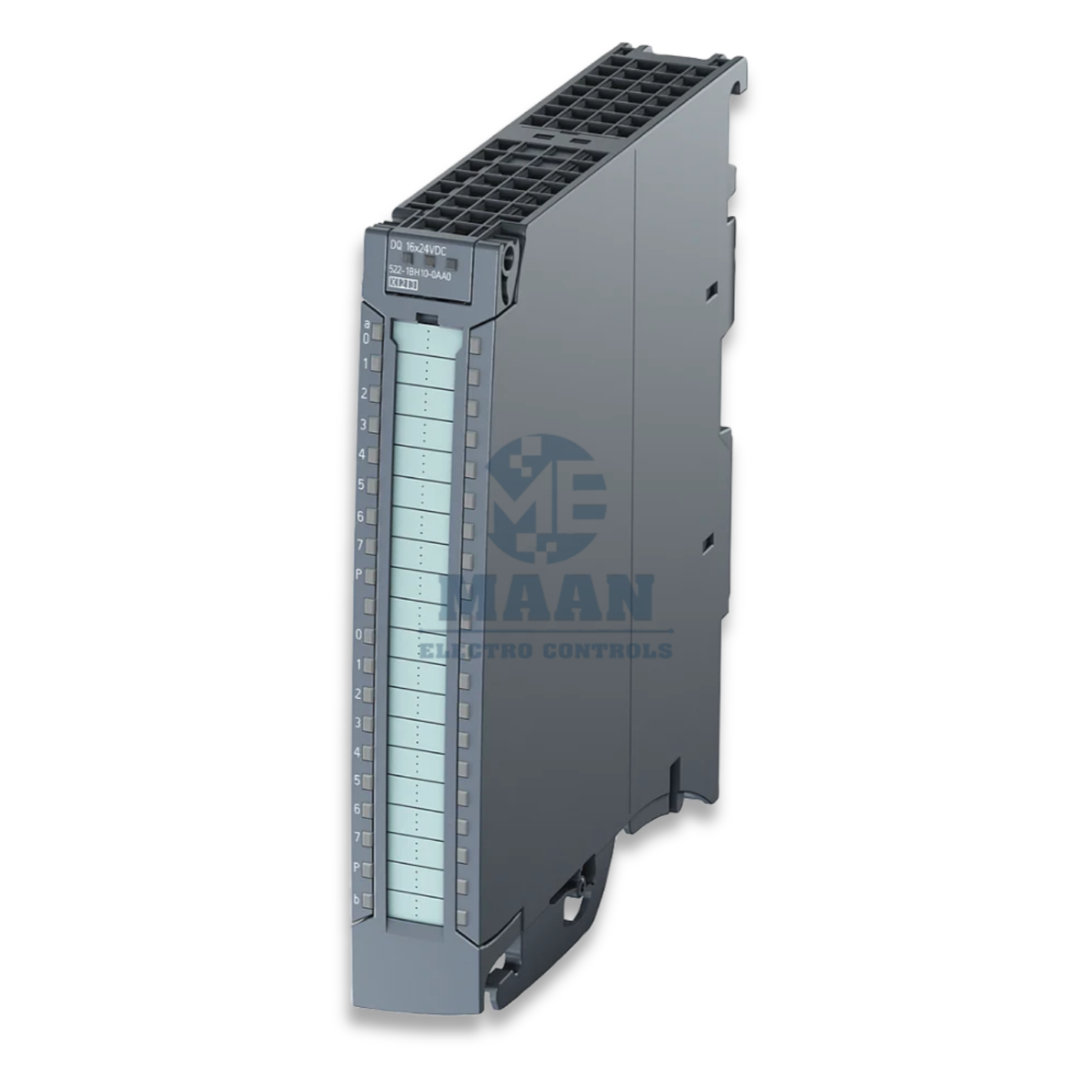

The Siemens 6ES7522-1BH01-0AB0 is a high-functionality digital output module for the SIMATIC S7-1500 PLC system. It provides 16 digital outputs, suitable for controlling 24 V DC actuators, contactors, relays, solenoid valves, indicator devices and other industrial loads.
The outputs are arranged in 2 groups of 8 channels, with a maximum load capacity of 4 A per group. Integrated diagnostics and actuator monitoring functions support reliable operation in demanding industrial automation applications.
Specifications
· Series: SIMATIC S7-1500
· Order No.: 6ES7522-1BH01-0AB0
· Module: Digital Output (DQ)
· Outputs: 16 digital outputs
· Output voltage: 24 V DC
· Rated output current: 0.5 A per channel
· Channel grouping: 16 channels in groups of 8
· Maximum current: 4 A per group
· Diagnostics: Single-channel diagnostics
· Actuator monitoring: Switching cycle counter
· Substitute value: Supported
· Safety function: Supports safety-oriented shutdown of load groups
· Safety level: Up to SIL 2 according to EN IEC 62061:2021
· Performance level: Category 3 / PL d according to EN ISO 13849-1:2015
· Front connector: To be ordered separately
· Connector options: Screw terminals or Push-in
Applications
· Machine automation
· Production and assembly lines
· Conveyor systems
· Packaging machinery
· Motor and actuator control
· Solenoid and valve control
· Industrial control panels
· Safety-oriented load-group shutdown applications
· OEM machine building and system integration
Benefits
· 16-channel digital output capacity for compact PLC installations
· 24 V DC / 0.5 A outputs for common industrial actuators
· 4 A per output group supports multiple connected loads
· Individual channel diagnostics helps identify output-related faults
· Switching cycle counter assists with actuator monitoring and maintenance
· Substitute-value functionality supports defined output behavior
· Designed for integration into SIMATIC S7-1500 automation systems
· Supports safety-oriented applications up to the specified SIL 2 / PL d Category 3 levels
