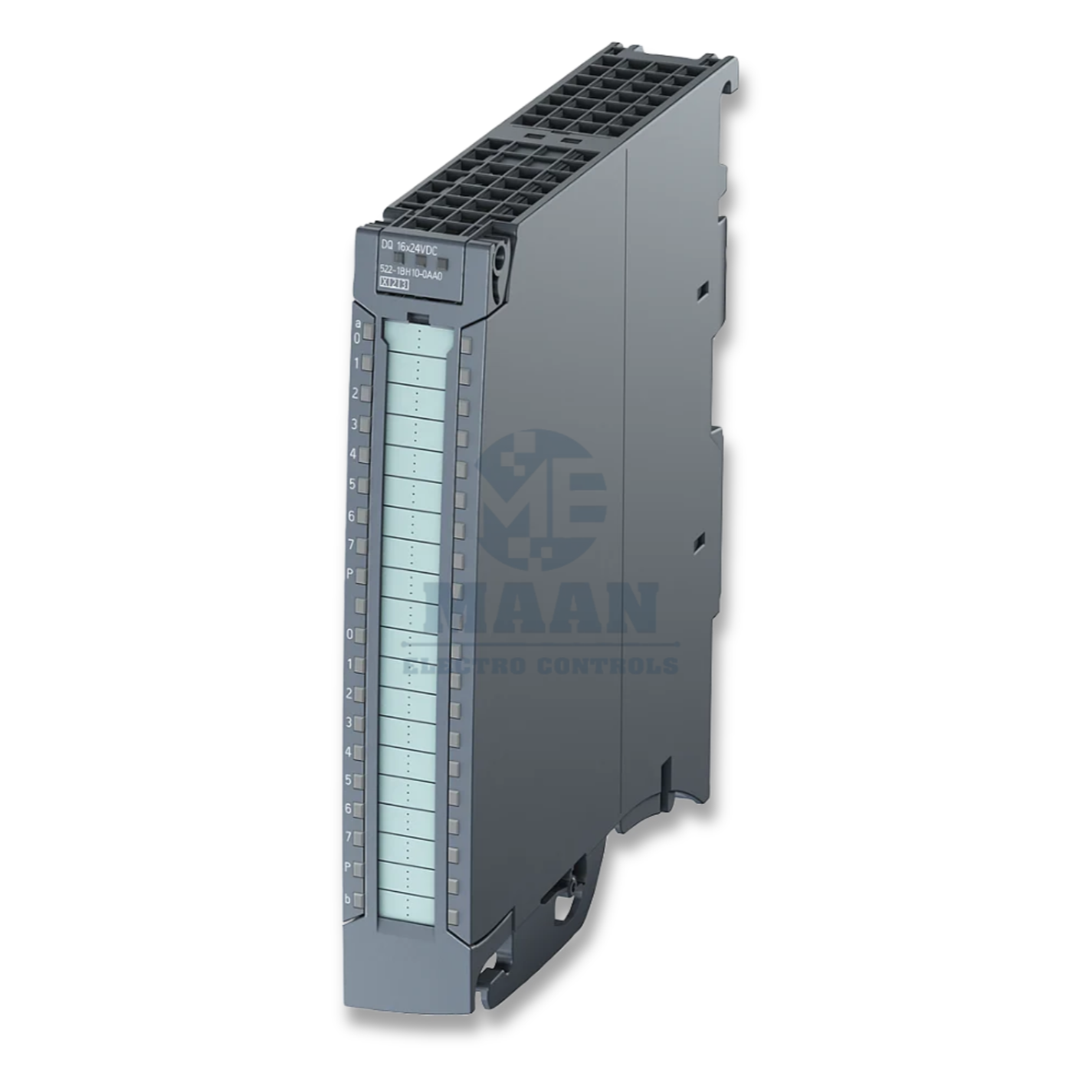

SIEMENS 6ES7522-1BH10-0AA0 – SIMATIC S7-1500 DIGITAL OUTPUT MODULE
The Siemens 6ES7522-1BH10-0AA0 is a SIMATIC S7-1500 Digital Output Module featuring 16 digital outputs, DQ16xDC 24 V DC / 0.5 A. The module provides reliable digital signal switching for industrial automation applications and is configured with 16 channels divided into groups of 8, with a maximum permissible current of 4 A per group.
The module also supports safety-oriented shutdown of load groups up to SIL 2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. A Push-in front connector is included, helping simplify installation and field wiring.
PRODUCT DETAILS
· Product: SIMATIC S7-1500 Digital Output Module
· Article Number: 6ES7522-1BH10-0AA0
· Module Type: DQ16xDC 24V/0.5A BA
· Outputs: 16 Digital Outputs
· Output Voltage: 24 V DC
· Output Current: 0.5 A per channel
· Channel Configuration: 16 channels in groups of 8
· Maximum Current: 4 A per group
· Front Connector: Push-in
· Safety Function: Supports safety-oriented shutdown of load groups
· Safety Level: Up to SIL 2 according to EN IEC 62061:2021
· Performance Level: Category 3 / PL d according to EN ISO 13849-1:2015
· Product Family: SIMATIC S7-1500
· Application: Industrial automation, machine control and actuator switching
FEATURES
· 16-channel digital output architecture
· 24 V DC output for standard industrial actuators
· 0.5 A current capability per output channel
· 4 A permissible current per output group
· Channels organized into two groups of eight
· Push-in front connector included for convenient wiring
· Suitable for controlling contactors, solenoid valves, relays, signal devices and other 24 V DC loads
· Supports safety-oriented shutdown of load groups within the specified safety requirements
· Designed for integration into SIMATIC S7-1500 control systems
BENEFITS
- 16 digital outputs in one module
- 24 V DC industrial output voltage
- 0.5 A per output channel
- 4 A per output group
- Channels arranged in groups of 8
- Supports safety-oriented load-group shutdown
- Supports applications up to specified SIL 2 / Category 3 PL d requirements
- Push-in front connector included
- Suitable for compact S7-1500 control architectures
- Useful for machine and factory automation
- Suitable for multiple actuator-control applications
- Convenient integration into Siemens PLC systems
