6ES7522-1BH10-0AA0

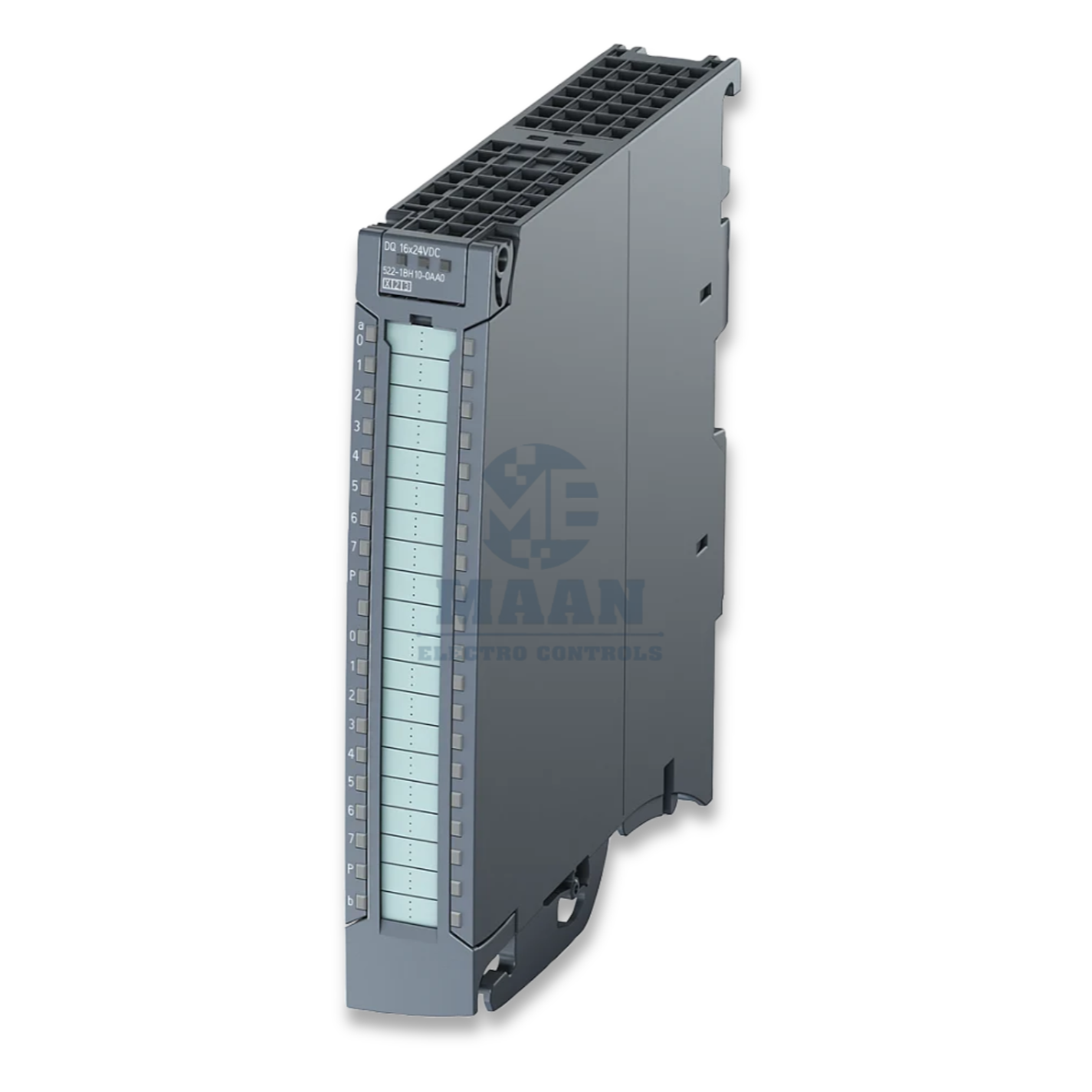

Siemens SIMATIC S7-1500 Digital Output Module
SIMATIC S7-1500 DQ 16xDC 24 V / 0.5 A BA is a 16-channel digital output module designed for reliable 24 V DC actuator control in SIMATIC S7-1500 automation systems. It provides 16 digital outputs arranged in groups of 8, with up to 4 A per group, making it suitable for machine control, industrial automation, and distributed actuator applications.
Product Details
· Article Number: 6ES7522-1BH10-0AA0
· Product Family: SIMATIC S7-1500
· Module Type: Digital Output Module
· Output Type: DQ 16x DC 24 V / 0.5 A
· Number of Channels: 16 digital outputs
· Channel Grouping: 2 groups of 8 channels
· Output Current: 0.5 A per channel
· Maximum Group Current: 4 A per group
· Front Connector: Push-in, included
· Safety Function: Supports safety-oriented shutdown of load groups
· Safety Level: Up to SIL 2 according to EN IEC 62061:2021
· Performance Level: Category 3 / PL d according to EN ISO 13849-1:2015
Benefits
· 16-channel output capacity for controlling multiple field devices.
· 24 V DC output technology for common industrial control applications.
· 0.5 A per output for switching compatible actuators and loads.
· 4 A per group supports practical multi-channel load distribution.
· Safety-oriented shutdown capability for suitable safety-related applications.
· SIL 2 and Category 3 / PL d support when the complete safety system is designed and validated accordingly.
· Push-in front connector included for convenient panel wiring and installation.
· Designed for integration into SIMATIC S7-1500 PLC architectures.
Typical Applications
· Solenoid valves
· Contactors and relays
· Signal lamps and indicators
· Industrial actuators
· Pneumatic and hydraulic control components
· Machine-control outputs
· Automated production equipment
· Safety-related load-group shutdown applications
Siemens Automation Integration
The 6ES7522-1BH10-0AA0 can form part of an S7-1500 control system where digital outputs are required for actuator and load control. It is suitable for applications involving machine builders, OEMs, panel manufacturers, system integrators, and industrial automation users.
